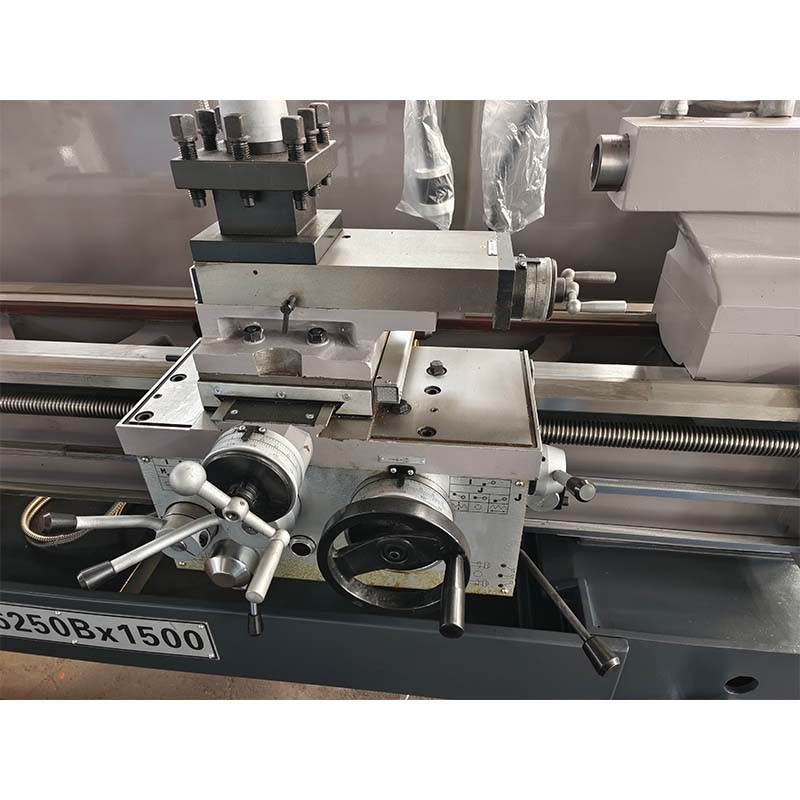

CD6250Bx3000
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
| Specification | CD6240B/C | CD6250B/C | CD6260B/C |
| Max. swing over bed | φ400mm | φ500mm | φ600mm |
| Max. swing over cross slide | φ225mm | φ325mm | φ360mm |
| Max. swing over gap | φ530mm | φ630mm | φ730mm |
| Effective length of gap | 260mm | ||
| Distance between centers | 1000mm/1500mm/2000/3000mm | ||
| Bed width | 330mm | ||
| Spindle bore | B:φ65mm C:φ80mm(optional:103mm) | ||
| Spindle nose | B:ISO-D6, C:ISO-D8 | ||
| Spindle speed(Number) | B:20-1800rpm(15steps) | ||
| C:24-1600rpm(15steps) | |||
| Longitudinal feeds range | 66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev) | ||
| Cross feeds range | 66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev) | ||
| Metric threads range | 66kinds 0.5-28 | ||
| Inch threads range | 66kinds 1-56inch | ||
| Module threads range | 33kinds 0.5-3.5mπ | ||
| Diametric threads range | 33kinds 8-56D.P. | ||
| Max. travel of top slide | 130mm | ||
| Max. travel of cross slide | 300mm | ||
| Max. section of tool | 25×25mm | ||
| Dia. of tailstock sleeve | φ65mm | ||
| Taper of tailstock sleeve | MT5 | ||
| Max. travel of tailstock | 120mm | ||
| Main motor power | 5.5kw(CD6240/6250),7.5kw(CD6260) | ||
| Rapid traverse motor | 120w | ||
| Coolant pump motor | 125w | ||
| Packing size | 2420/2920/3460/4720×1150mm×1800mm | ||
| N.w/G.w | 1000mm: 1560/2210kg 1600/2250kgs 1640/2290kg | ||
| 1500mm: 1770/2410kg 1830/2470kgs 1870/2530kg | |||
| 2000mm: 2010/2780kg 2070/2820kgs 2130/2860kg | |||
| 3000mm: 2400/3200kg 2460/3260kgs 2580/3400kg | |||
