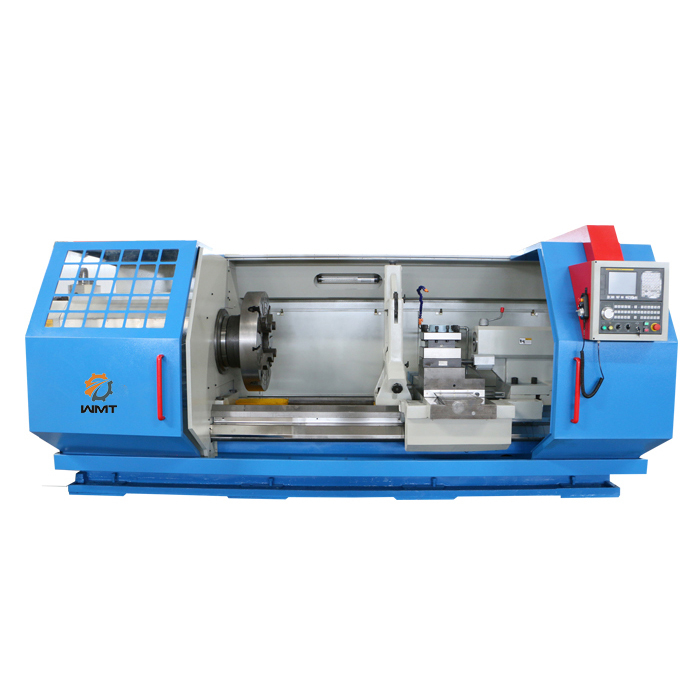

Product Description
Features:
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
| Specification | QK1327 |
| Max.swing over bed | Ф800mm |
| Max.swing over carriage | Ф480mm |
| Max. cutting length | 1500mm |
| Rail width | 600/755 |
| Spindle bore | Ф280mm |
| Chuck size | 630mm |
| Range of spindle speed | (L):20-100rpm(H):100-300rpm |
| X-axis travel | 450/550mm |
| Z-axis travel | 1250mm |
| X/Z rapid speed | 4000mm/min |
| Electronic turret | 4 -station |
| Max.section of tool | 280x280mm |
| Stroke of tailstock sleeve | 250mm |
| Diameter/Hole of tailstock sleeve | Ф100mm/MT6 |
| Main motor power | 15kw |
| Overall dimensions L x W x H | 4600x2060/2100x2100mm |
| Packing size L x W x H | 4800x2260/2300x2300mm |
| Net weight | 7000/9000kgs |
| Gross weight | 8000/10000kgs |
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs
