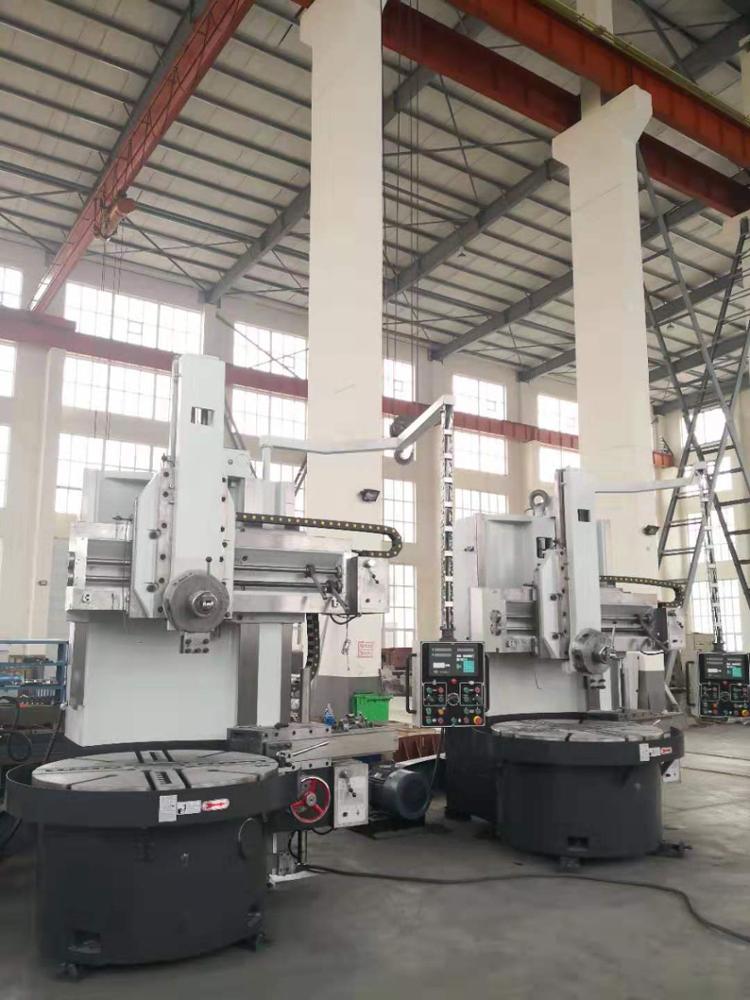

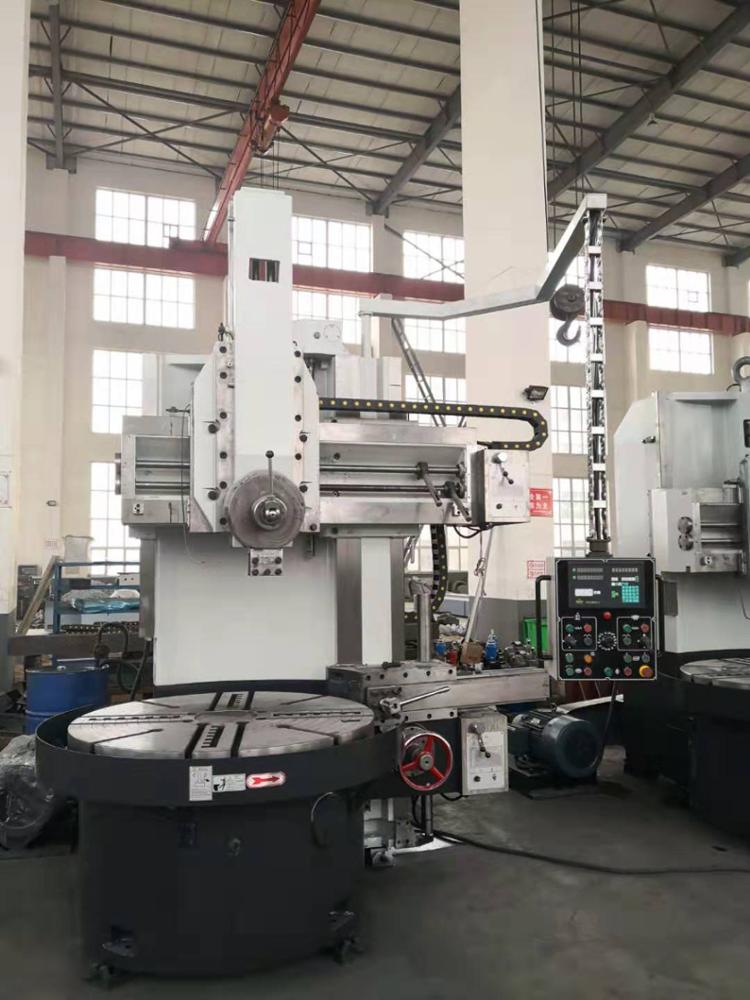

Product Description
| Specification | C5116D |
| Table dia. | 1400mm |
| Max. turning dia. | 1600mm |
| Max. workpiece height | 1000/1200/1400/1600mm |
| Max. workpiece weight | 5t |
| Table speed range | 5-160r/min |
| Table rotation speed step | 16 |
| Vertical toolpost feed range | 0.8-86 r/min |
| Vertical side toolpost feed step | 12 |
| Horizontal travel of vertical toolpost | 915mm |
| Vertical travel of vertical toolpost | 800/1000mm |
| Horizontal travel of side toolpost | 650mm |
| Vertical travel of side toolpost | 1000mm |
| Crossam ram travel | 850/1050/1250/1450mm |
| Tool bar section size(Lx W) | 30x40mm |
| Main motor power | 30kw |
| Feeding motor power | 1.3/1.8kw |
| N.W | 12.7t |
| Overall size(LXWXH) | 2662x2800x3550mm |
