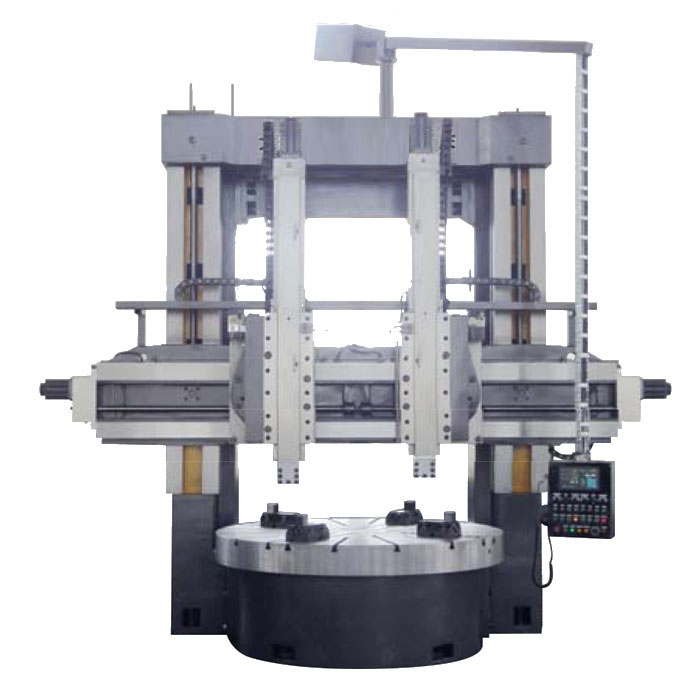

DVT5235C Double Column Vertical Manual Lathe Machine with CE

  • DVT5235C
  • WMT

Product Description


Vertical lathe machine DVT5235C/D
Table dia. 3150mm
Max. turning dia. 3500mm
Max. workpiece height 2000/2500/3150mm
Max. workpiece weight 20/32t
Table speed step 16(II stepless)
Table rotation speed range 2-63/0.4-40r/min
Max. torque of table 63/80KN.m
Horizontal travel of toolpost 20-2030mm
Vertical travel of toolpost 1000/1250/1600mm
Crossam ram travel 1650/2150/2750mm
Main motor power AC55/DC75kw
N.W 53/58/63t
Overall size(LXWXH) 6650x6300x5270/5770/6500mm
Knife carrier size(W*H) mm
Main motor power kw
Machine dimensions(L*W*H) mm

Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
