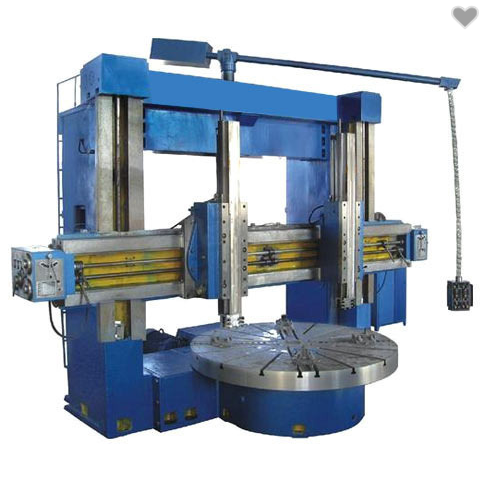

DVT5240 Double Column Heavy Metal Cutting Vertical Lathe Machine with CE

  • DVT5240
  • WMT
Availability:
Quantity:

Product Description

011

Vertical lathe machine DVT5240
Table dia. 3200mm
Max. turning dia. 4000mm
Max. workpiece height 1600mm
Max. workpiece weight 20T
Max. tool size 50mm
Right toolpost max. cutting forece 35000N
Right toolpost max. cutting forece 30000N
Total cutting force 43000N
Worktable max. torque 63000N.m
Worktable speed steps 16 steps
Worktbale speed range 2-63r/min.
Toolpost feeding range 0.1-500mm/min/
Right toolpost travel (horizontal/vertical) 2200/1000mm
Right toolpost travel (horizontal/vertical) 2200/1000mm
Slider section 240x240mm
Left/right toolpost fast moving speed 2000mm/min.
Cross beam max. travel 1400mm
Corss beam up/down speed 350mm/min.
Main motor power 55kw
Cross beam up/dowm motor power 11KW
Left/right toolpost  feeding motor torque 27N.m (Beijing CTB servo motor)
Total power of the machine 72KW
Machine weight 40T
Machine size 7200x5400x5200MM
