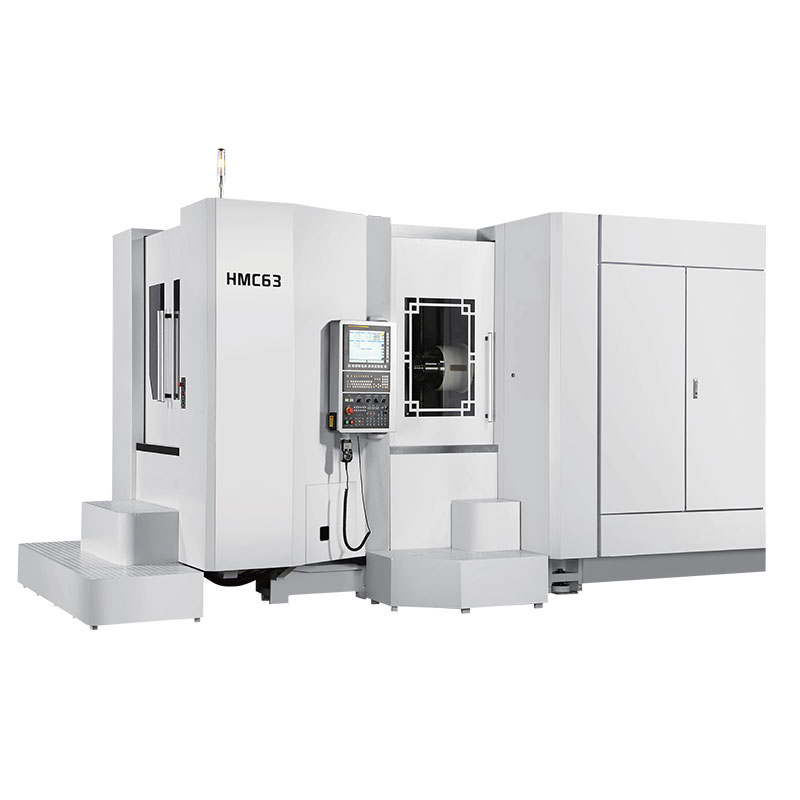

HMC63
WMT
8457101000
| Quantity: | |
|---|---|
Product Description
Features:
3-Axis Plus Rotary Table: It enables the workpiece to be machined in the following four faces except for the mounting surface and top surface after one clamping, which is most suitable for machining box parts.
The automatic exchange workbench can process the workpiece on the workbench at the loading and unloading position while processing the workpiece on the workbench at the working position, thereby greatly shortening the auxiliary time and improving the processing efficiency.
| Specification | Unit | HMC63 |
| The workbench | Single palet | |
| Table size | mm | 630x630 |
| Maximum weight support of table | kg | 1200 |
| Number of workstations | 1 | |
| Mesa form | mm | 24xM16 螺纹钉 P.125 |
| Distance from spindle center to workbench as the straight line | mm | 100~1000 |
| Workpiece diameter | mm | 50~1080 |
| Workpiece diameter | mm | 1050 |
| Table indexing | 1x360 | |
| Table structure form | / | |
| Bench changing time | s | / |
| Work schedule (x/y /z) | mm | 1050/900/1030 |
| Fast moving distance (X/Y/Z) | m/min | 60/60/60 |
| The B axis is moving fast | m/min | 11 |
| Spindle power | kw | 18.5*26 |
| The highest speed | rpm | 8000 |
| Main shaft hole chain | BT50 | |
| The spindle diameter | mm | 100 |
| Positioning accuracy | mm | 0.01(全程) |
| Repeat positioning accuracy | mm | 0.006（全程） |
| B axis indexing accuracy | 6" | |
| B axis indexing accuracy | 1" | |
| Dao database is | T | 40 |
| Tool selection method | Two way artitrary | |
| Tool change time | s | 2.5 |
| Length x width x height | mm | 6485x3865x3300 |
| Machine weight | Kg | 18200 |
