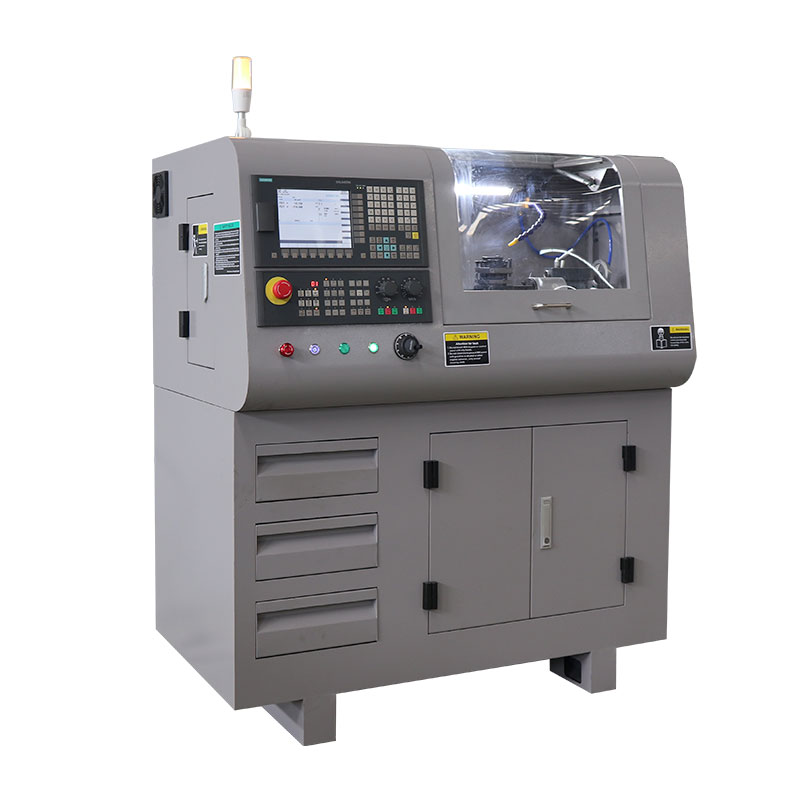

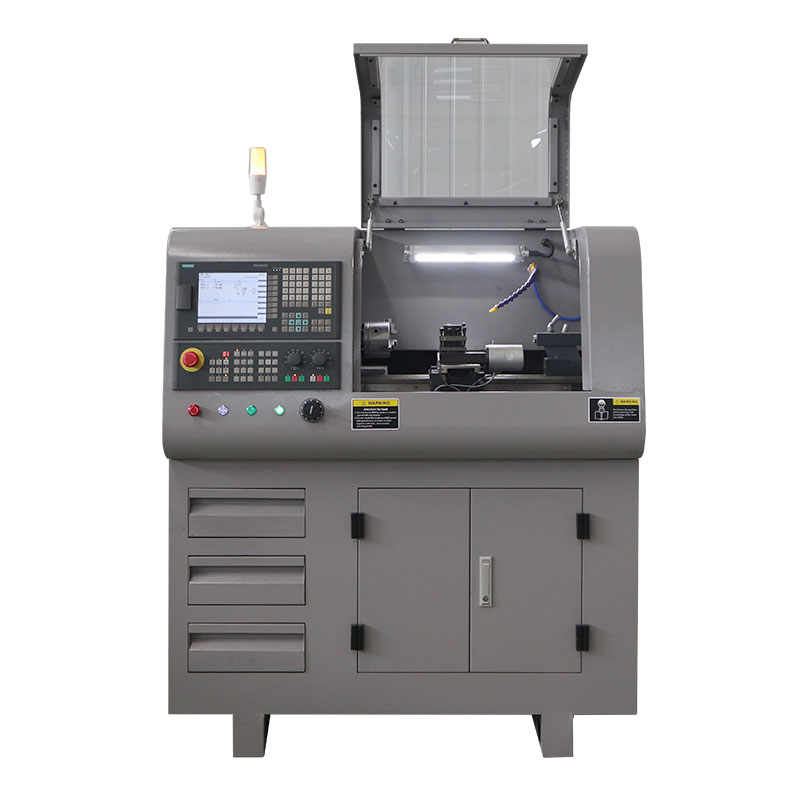

New CNC210 CNC Lathe With 4 Positions Toolpost

  • CNC210
  • WMT
  • 8459310000
Quantity:

Product Description

CNC210 700X700-1


Specification CNC210
Max. swing over bed  210mm
Distance between centers 400mm
Spindle bore dia. 26mm
Spindle taper  MT4
Spindle speed  3000rpm
Tool post  4-position
Gangtool bar size 12mm
X-axis  travel  90mm
Z -axis travel  300mm
X moving speed  2000mm/min
Z moving speed  2000mm/min
Spindle motor power  1.2kw
X motor torque 3N.m
Z motor torque 3N.m
Min. setting unit 0.001mm
Tailstock dia. 22m
Tailstock tavel  50mm
Tailstock taper  MT2
Overall size  1170X700X860mm
N.W 200kgs



Standard accessories:

1.3 jaw chuck

2.4 position toolpost

3.Manual lubrication system

4.Tool box with tools
