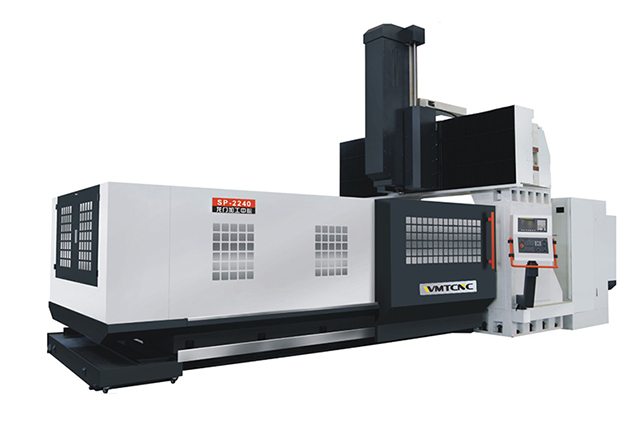

The Future Development Trend Of CNC Gantry Milling Machine

CNC gantry milling machine palys an important role in machining  equipment.With the development of technology, now the CNC gantry milling machine has been in the process of high efficiency, high safety and intelligence. What is the future development trend of CNC gantry milling?

1.Performance trend

Efficiency, speed, and accuracy are key performance indicators for machining. CNC gantry milling machine uses high-speed CPU, multi-CPU control system and AC digital servo system. At the same time, measures such as improving the dynamic and static characteristics of the machine tool are adopted to greatly improve the speed efficiency and accuracy of large-scale CNC gantry milling. The MTBF value of the numerical control device for large-scale CNC gantry milling in foreign countries can reach more than 6000h, and the MTBF value of the servo system can reach more than 30,000h, and the reliability is very high. With the development of future technology, the CPU chip will reach a higher speed, the servo system will be more perfect, and the performance of large-scale CNC gantry milling will be greatly improved.

2.Functional development trend

The numerical control system is an important part of large-scale CNC gantry milling. The operator operates the numerical control system through the user interface to control the machining of the workpiece by large-scale CNC gantry milling. Because different users have different requirements on the interface, the workload of developing the user interface is extremely great. The user interface has become one of the most difficult parts of the development of computer software. The appearance of the graphical user interface greatly facilitates the use of non-professional users.

People can operate through windows and menus, which are convenient for blueprint programming and fast programming, 3D color stereo dynamic graphic display, graphic simulation, graphic dynamic tracking and simulation, view of different directions and partial display scaling. With the upgrading of the CNC system and the upgrade of the user interface, the function of the large-scale CNC gantry milling will be further developed in the future.

3.Structural development trend

The current large-scale CNC gantry milling uses highly integrated CPU/RISC chips and large-scale programmable integrated power FPGA/EPLD/CPLD and ASIC chips to improve the integration of CNC systems and the speed of hardware and software. The application of FPD flat panel display technology can improve the performance of the display. The flat panel display has the advantages of high technology content, lightweight, small size, low power consumption, easy portability, etc. It can realize large-size display and become an emerging display technology that competes with crt. The mainstream of the century display technology, the application of advanced packaging and interconnection technology.

Combine semiconductor and surface mount technology to reduce product price, improve performance, reduce component size, and increase system reliability by increasing integrated circuit density and interconnect length and number. With the further development of intelligent technology, the size of chips and integrated circuits will be further developed, and the structure of large-scale CNC gantry milling equipment will be greatly improved.

With the continuous exploration of human beings, the development of science and technology will be limitless. The future of large-scale CNC gantry milling will also be more developed. The future intelligent world will make CNC gantry milling more intelligent.
