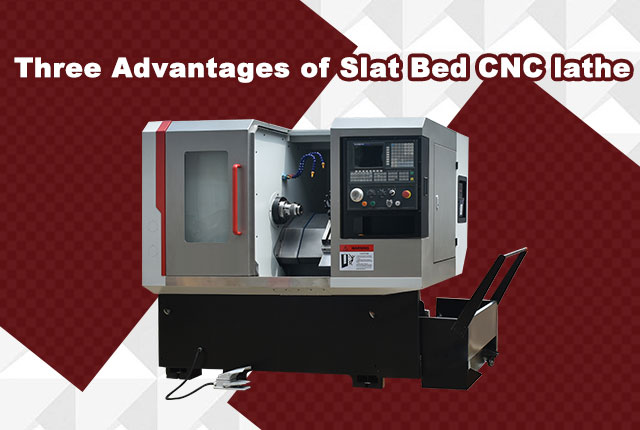

The slant bed CNC lathe is an automatic machine tool with high accuracy and efficiency. Equipped with multi-station turret or power turret, the machine tool has a wide range of technological properties. It can process complex workpieces such as straight cylinder, oblique cylinder, arc and various threads, slots, worm, etc., with various compensation functions of straight interpolation and circular interpolation, and has played a good economic role in the batch production of complex parts.
The two guides of the slant bed CNC lathe intersect with the ground surface in a plane with an angle of 30, 45, 60 and 75 degrees. The lathe body of the slant bed CNC lathe is a right triangle.Obviously, with the same track width, the X-direction trailer of the inclined bed is longer than that of the flat bed, and the practical significance of applying the lathe is that more knife numbers can be arranged. The cross-section area of slant bed CNC lathe is larger than that of flat bed of the same size, i.e. it has stronger bending and torsion resistance.
Suitable processing areas: aviation equipment, optical precision parts, automotive parts, electronic connectors, advanced button accessories, small valves, clock parts, threaded joints, etc.For small parts, precision parts, non-ferrous metals have a particularly good processing ability.Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, disc parts, precision pins, bushings, spindle, ring precision threads, high-grade threaded joints, precision spindle lock caps, compound nuts.
So let's take a look at the three advantages of a slant bed CNC lathe.
Inclined bed or flat bed inclined guideway machine tools are generally used for machining large parts, because the corresponding parts of medium and large machine tools are also large, especially in the turret area. The inclined guideways are mainly used to overcome the gravity to have a better stability to improve the accuracy of the machine tool, and the advantages of inclined machine tools can be reflected in some harsh environments.
The diagonal machine tool can effectively utilize the space and greatly reduce the plane occupancy position of the machine tool.
The inclined guide rail also facilitates automatic chip removal by concentrating the iron chips on the chip removal machine. Cut iron chips have very high heat, and accumulated on the guide rail will cause the guide rail to be heated and deformed, which will change the working accuracy and lead to mass scrap of the workpiece during batch automatic processing.
