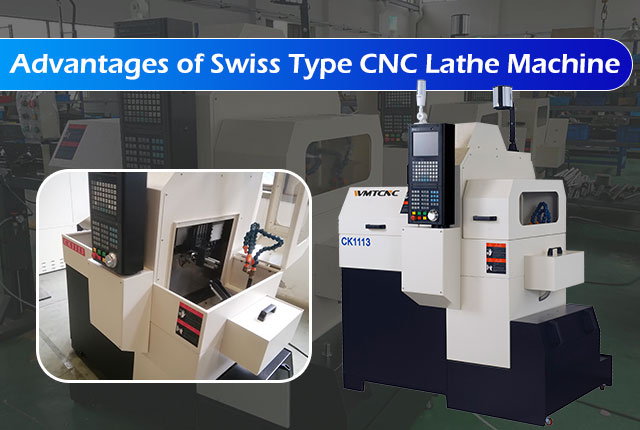

Three Main Technical Advantages of Swiss Type CNC Lathe Machine

Views: 5 Author: Site Editor Publish Time: 2021-07-07 Origin: Site

Swiss-type CNC lathe machines are generally used to process small parts such as bars, in large batches, and many of them are formed at one time. As long as it relates to bar processing, the diameter should not exceed 20mm. The core lathe has a great advantage over the feeder (because the core lathe must be equipped with a feeder for processing), so it is a small independent production line, regardless of It is processing speed, labor cost, and he has advantages.

The main advantages of swiss type CNC lathe machine:

1. Theswiss type CNC lathe machine can turn parts with a length of 200mm or more without stopping the spindle at one time. If you are turning apart with a length of 5mm, you can turn the tool and move, but you can turn 20~30 parts in one go. Need to stop and feed.

2. Swiss-type CNC lathe machine always fixes the material at the closest position when cutting, so the rigidity is very good. After you think about your lathe clamping parts, the tool sticks to the clamping position a few mm to turn, the rigidity will be good To what extent.

3. Swiss-type CNC lathe machines are integrated into turning and milling, and the complexity of one-time processing and shaping is not comparable to the old-fashioned automatic car, which we commonly call cam locomotive lathes. And now more advanced CNC automatic lathes, we call it swiss type CNC lathe machine or slitting lathes. Mainly, the spindle Z moves forwards and backward, and the knife can move X, Y, which can realize three-dimensional processing and one-time forming. In the past, it was basically imported, but the price was extremely high, and now it has its own mature technology in China.

Compared with the conventional CNC machining process, the outstanding advantages of the swiss type CNC lathe machines are mainly manifested in the following aspects.

(1) Shorten the product manufacturing process chain and improve production efficiency. Turning and milling combined processing can complete all or most of the processing procedures at one time, thus greatly shortening the product manufacturing process chain. In this way, on the one hand, the production assistance time caused by the change of the installation card is reduced, and the manufacturing cycle and waiting time of the tooling fixture is also reduced, which can significantly improve the production efficiency.

(2) Reduce the number of clamping and improve processing accuracy. The reduction in the number of card loading avoids the accumulation of errors due to the conversion of positioning benchmarks. At the same time, most of the current turning-milling composite processing equipment has the function of online detection, which can realize the in-position detection and precision control of key data in the manufacturing process, thereby improving the processing accuracy of the product.

(3) Reduce floor space and production cost. Although the price of a single unit of turning-milling composite processing equipment is relatively high, the overall fixed assets can be effectively reduced due to the shortening of the manufacturing process chain and the reduction of equipment required for products, as well as the reduction in the number of fixtures, workshop area, and equipment maintenance costs. The cost of investment, production operation, and management.
