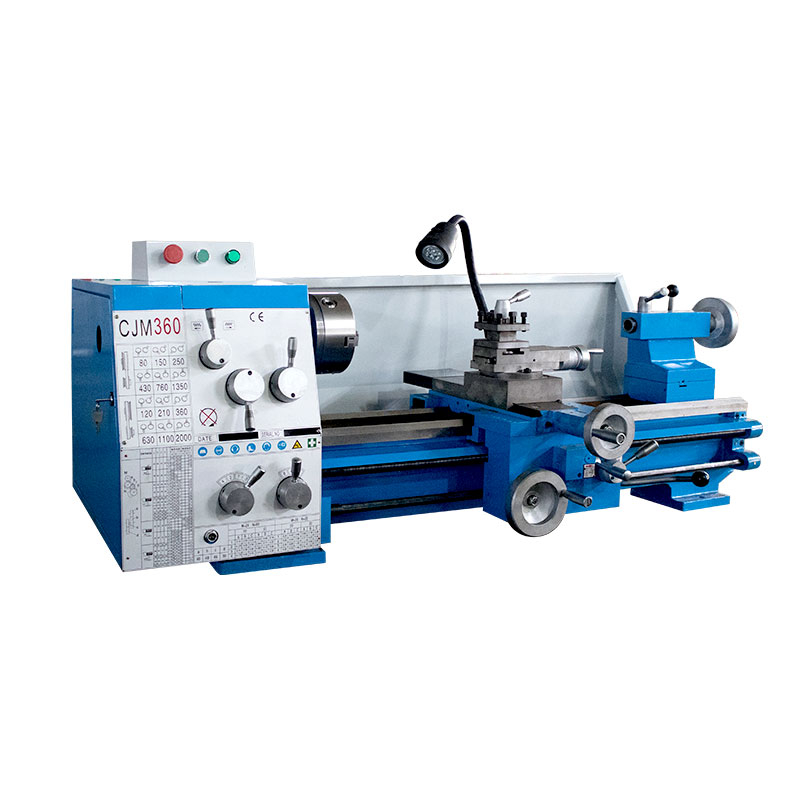

Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.
3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) With or without cabinet according to requirement.
| Specification | CJM360 |
| Max. swing diameter over bed | 360mm |
| Max. length of work piece | 750mm |
| Max. swing diameter over middle carriage | 200 mm |
| Spindle bore | 40mm |
| Taper of hole in spindle | MT5 |
| Max. cross stroke over tool carrier | 160mm |
| Max. longitudinal stroke over tool carrier | 100mm |
| Metric thread kinds | 22 |
| Metric thread pitch | 0.20-7mm |
| Inch thread kinds | 45 |
| Inch thread pitch | 21/2-48 1/n″ |
| Modulus thread kinds on processing | 21 |
| Modulus thread pitch on processing | 0.20-3.5mm |
| Diametrical thread kinds on processing | 31 |
| Diametrical thread pitch on processing | 8-120 1/n″ |
| Longitudinal feed on spindle tool carrier | 0.10-1.40mm/r |
| Cross feed on spindle tool carrier | 0.045-0.60mm/r |
| Max stroke on taper hole | 80mm |
| Taper of Tailstock | MT3 |
| Step of spindle speed | 12 |
| Range of spindle speed | 60-1600r/mim |
| N.W. | 420kgs |
| G.W. | 470kgs |
| Overall size(L×W×H) | 1580×785×1390mm |
| Packing size(L×W×H) | 1600×800×1500mm |
