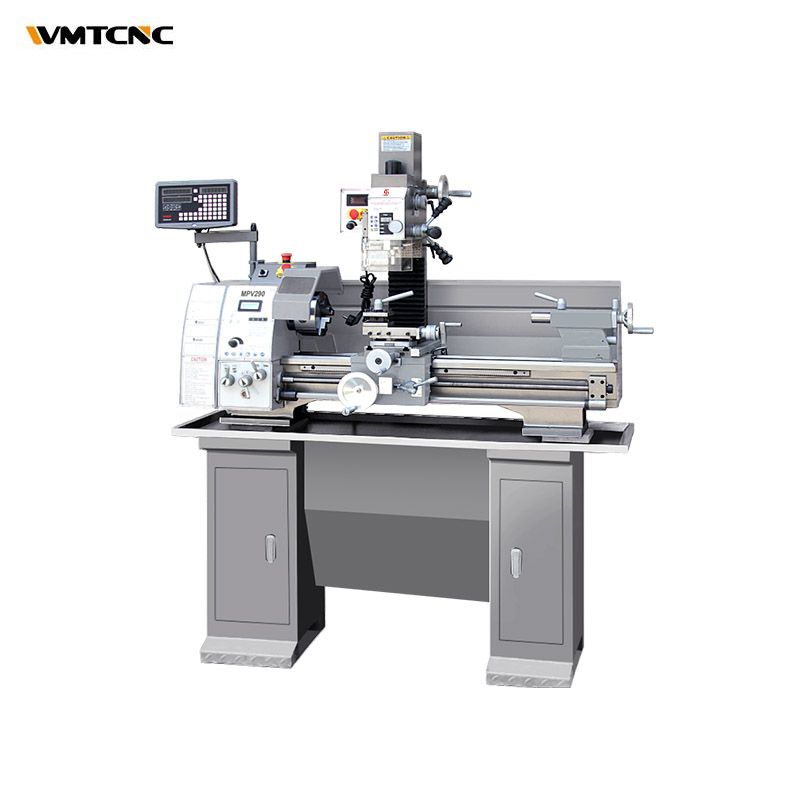

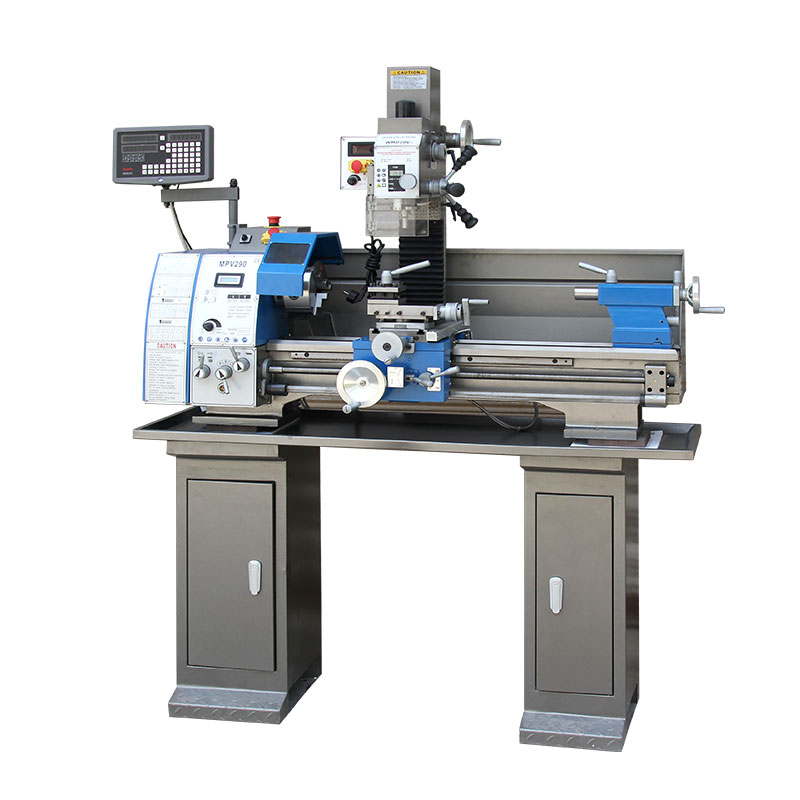

MPV290
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Turning, milling, drilling and threading.
2. Metric or imperial thread cutting.
3. Suitable for processing metal, wood and other materials.
4. Excellent advantage of various functions, small occupation and economic.
| Specification | MPV290 |
| Max. swing over bed | 290mm |
| Max. swing over cross slide | 180mm |
| Distance between centers | 800/900mm |
| Spindle taper | MT5 |
| Width of bed | 182mm |
| Spindle bore | 38mm |
| Range of cross feed | 0.01-0.10mm/rev |
| Range of longitudinal feed | 0.085-0.832mm/rev |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.2-3.5mm |
| Top slide travel | 70mm |
| Cross slide travel | 160mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kw |
| Drilling and milling head | ZAY7020V |
| Spindle taper | MT2 |
| Spindle travel | 52mm |
| Range of spindle speeds(variable speed) | 50-2250rpm |
| Max. distance from spindle nose to table | 380mm |
| Max. distance from spindle to columm | 190mm |
| Motor power | 750w |
| Packing size(for machine) | 1450×700×1040mm |
| Packing size(for stand) | 800x580x415mm |
| N.W | 325kg |
