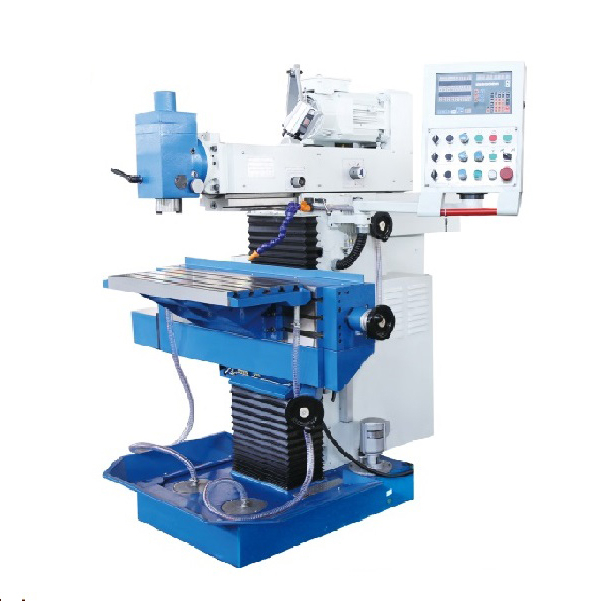

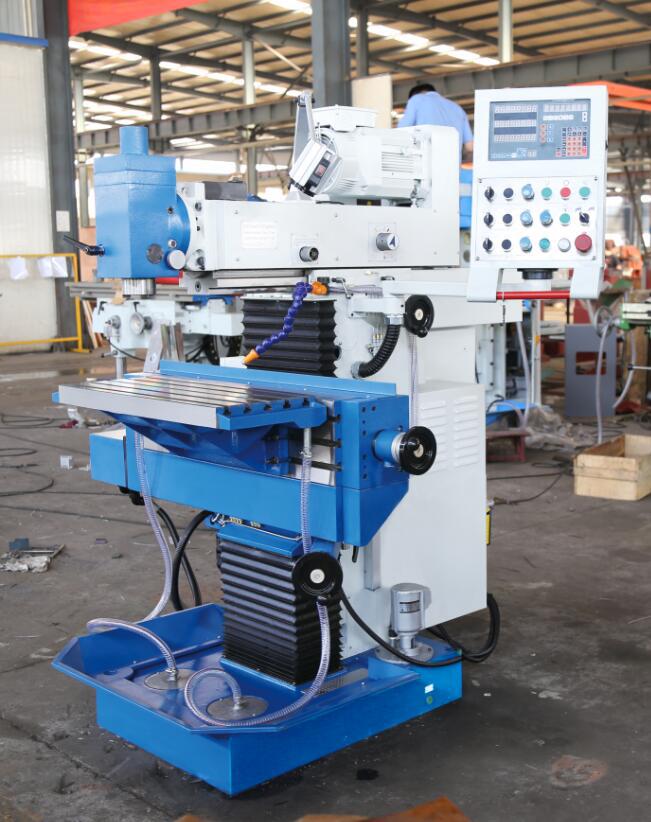

Product Description
Features:
X/Y/Z ballscrew
X/Y/Z servo feeding motor
Machine main motor is inverter motor, Variable speed
Electrical type handwheel
CE standarad Schneider electrical part
| Specification | XL8140 | |
| Work space dimensions | 800*400mm | |
| Vertical table dimensions | 1020*225mm | |
| T-slots,work table | (6)14*63mm | |
| T-slots,vertical table | (3)14*63mm | |
| Table load capacity | 200Kg | |
| travels | Longitudinal(X) | 500mm |
| Transverse(Y) | 400mm | |
| Vertical(Z) | 400mm | |
| Spindle axis-to-table surface distance | Horizontal spindle | 145-545mm |
| Vertical spindle | 50-450mm | |
| Speed range | (2)40-2000rpm | |
| Spindle mount | ISO40 | |
| Feeds X Y Z axis | 10-1000mm/min | |
| Rapid feed | 1200mm/min | |
| Quill stroke | 60mm | |
| Main motor rating | 3.7Kw | |
| Feed motor rating | X:7.7N.M | |
| Y:7.7N.M | ||
| Z:10N.M | ||
| Dimensions (L*W*H) | 1500*1700*1800mm | |
| weight | 1500kg | |
