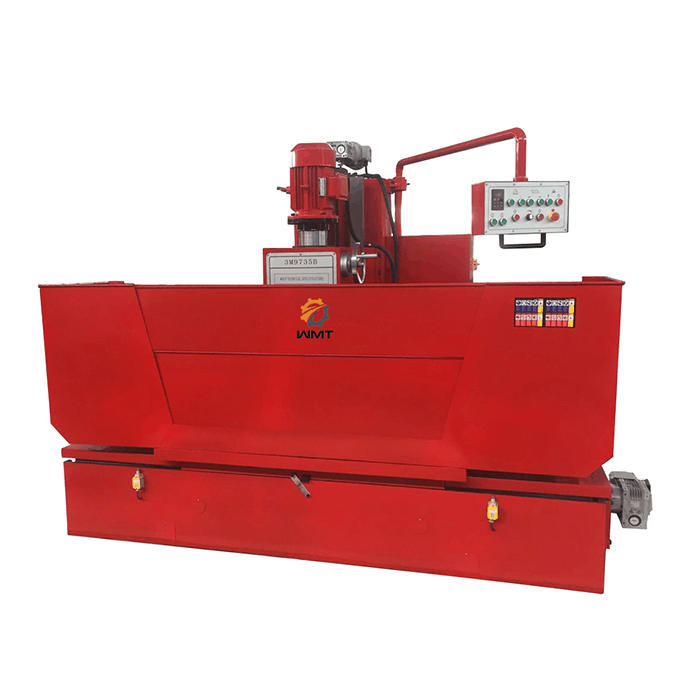

3M9735B Cylinder Head Block Grinding Milling Machine

  • 3M9735B

  • WMT

Availability:
Quantity:

Product Description

Features:

  • It suits for grinding and milling all kinds of cylinder body and cover surface.

  • The spindle adopts high precision bearing the motor is fixed on the back of the machine which guarantee the spindle precision with high speed.

  • It adopts the plastic guide way running stable and flexible.

  • The feeding of work table adopts stepless speed changes devices, suits for processing all kinds of materials of work piece

3M9735B

Specification 3M9735Bx130 3M9735Bx150
Working table size 1300 x500mm 1500x500mm
Max working length 1300 mm 1500 mm
Max. width of grinding 350 mm 350 mm
Max height of grinding 800 mm 800 mm
The vertical moving distance of grinding head 60 mm 60 mm
The vertical moving distance of spindle box 800 mm 800 mm
Spindle speed 1400/700 r/min 1400/700 r/min
Transverse moving speed of working table 40-900 mm/min 40-900 mm/min
Overall dimensions(LxWxH) 2800x1050x1700 mm 3050x1050x1700 mm
Packing dimensions(LxWxH) 3100x1200x1850 mm 3350x1200x1850 mm
N.W. / G.W. 2800 / 3100 kg 3000 / 3300 kg
