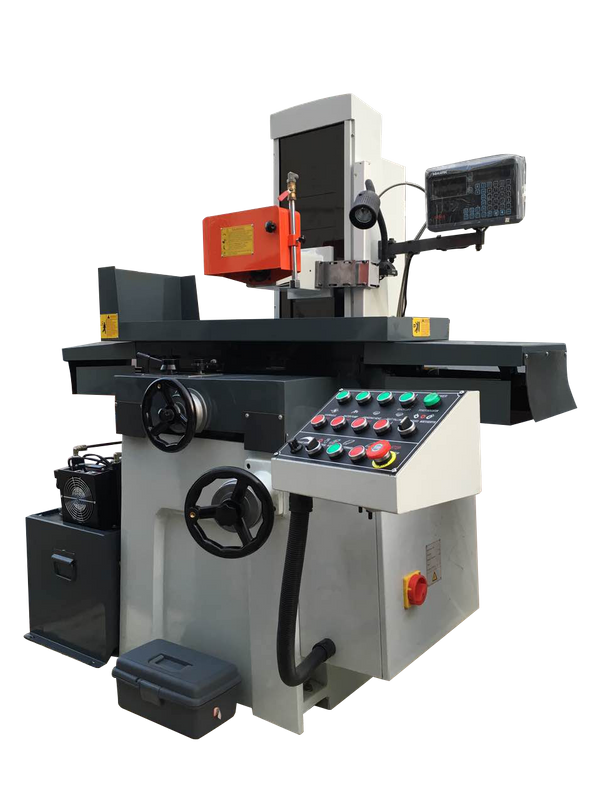

480x200mm Manual Metal Surface Grinder Machine 110V/220V with CE

  • MY820
  • WMT
Quantity:

Product Description

Features:

1.Machine reasonable structure, good rigidity, good looks, easy to operate.
2.Table movement in longitudinal is hydraulic transmission.
3.Spindle motor no vibration and low noise.

MY820 (5)


Specification MY820 MY1022
Max workpiece to be ground 480x200mm 540x250mm
Max travel of table 520x220mm 560x260mm
Table max cutting area 520x200mm 540x250mm
T-slot (number width) 1x14 1x14
Distance from table to spindle center 450mm 450mm
Wheel size (dia width bore) 200x20x31.75 200x20x31.75
Spindle speed 2850r/m 2850r/m
Table longitudinal (left and right) speed 3-20m/min 3-20m/min
Table horizontal  (before and after) Continuous (variable speed) 150mm/min 150mm/min

Intermittent (stepless) 0-5 0-5
 the amount of feed The handlewheel rotates 2.5mm 450mm

Hand wheel each grid 0.02mm 0.02mm
Vertical (up and down) The handlewheel rotates 1.25mm 2

 feed wheel feed Hand wheel each grid 0.01mm 0.01mm
Spindle motor 1.5KW 1.5KW
Cooling motor 40W 40W
Hydraulic motor 1.5KW 1.5KW
Working pressure 3Mpa 3Mpa
Oil tank capacity 80L 80L
Max capacity 18L/min 18L/min
The mechanical surface of the base of parallelism 300/0.004mm 300/0.004mm
Surface roughness Ra0.32 Ra0.32
N.W. 1.05T 1.25T
G.W. 1.15T 1.35T
Machine size 1680x1140x1720mm 1680x1220x1720mm


Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
