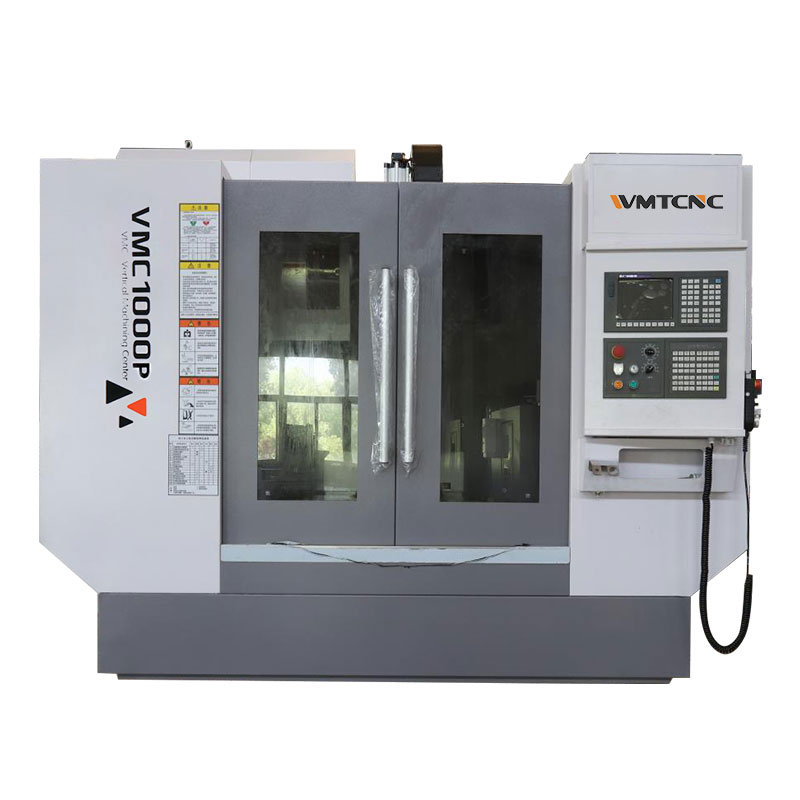

5 Axis CNC Milling Machines VMC1000P with BT40 Spindle for Sale

  • VMC1000P

  • WMT

  • 8457101000

Availability:
Quantity:

Product Description

Features:

  • High-rigidity design of the bed, servo, spindle, etc., enhance the extreme heavy cutting ability.

  • It has good heavy cutting ability in plane milling, boring, drilling, and tapping.

  • One-piece bed, C-shaped structure, Z axis without counterweight.

  • NTN bearing, THK/PMI/HIWIN linear guideway.

  • Taiwan ROYAL/VYUCHENG/KENTURN spindle, standard 8000 rpm, optional 10000 rpm.

  • BT40 spindle taper, 24t disc type tool magazine.

VMC1000P (2)

Specification VMC1000P
Worktable size(LxW) 1200x520mm
T-slot (NxWx D) 5x18x100mm
X/Y/Z axis travel 1000/520/535mm
Distance from spindle center to column 582mm
Distance from spindle nose to worktable surface 80-615mm
Spindle taper BT40
Spindle power 11/15kw
Max.spindle speed 8000rpm
Max.feed speed 10m/min
Rapid feed speed(X/Y/Z) 48/48/32m/min
X/Y/Z axis ball screw 4016
Tool magazine capacity 24T
Max.length of tool 300mm
Tool change time(T-T) 2.5s
Positioning accuracy(X/Y/Z) ±0.008mm
Re-positioning accuracy(X/Y/Z) ±0.005mm
LxWxH 2600x2320x2780mm
Max.loading of worktable 500kgs
Machine weight 5800kgs


Machine Details

加工中心细节图
