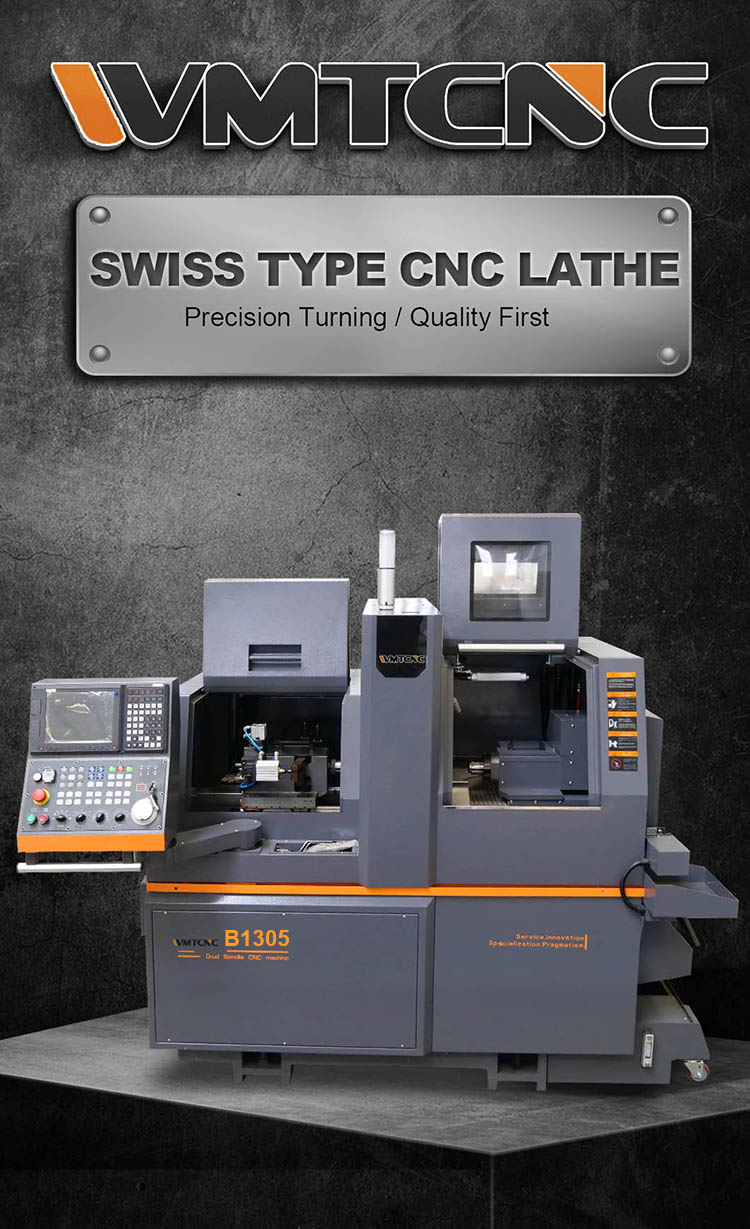

B1305
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Non-guide sleeve cutting and rotary guide sleeve cutting methods to meet the diverse processing requirements
2. To meet a variety of high-precision,multi-batch,complex shape of shaft parts and precision small parts of compound processing
3. Stable structure design,high-quality cast iron bed,strong rigidity
4. Through the configuration of automatic feeding machine,automatic continuous processing
| Specification | B1305 |
| Spindle | |
| Max. Bar dia. | Φ13mm |
| Max.spindle bore dia. | Φ14mm |
| Max. height of spindle center from ground | 1010mm |
| Max. spindle speed/motor power | 5000rpm/2kw |
| Max. installed capacity of cutter | 10*10mm square cutter(5pcs) |
| Φ16mm hole cutter (ER11 4pcs) | |
| Main spindle power head std. | ER11+ER16 (2pcs+1pc) |
| Main spindle power head max. speed/motor power | 5000rpm/0.4kw |
| Sub-spindle | |
| Max.Clamping dia. | Φ13mm |
| Sub-spindle max. speed/motor power | 5000rpm/2kw |
| Max. installed capacity of cutter | Φ16mm hole cutter(4pcs) |
| Sub-spindle power head | *optional ER16 (4pcs) |
| Sub-spindle power head max. speed/motor power | *optional 5000rpm/0.4/0.75kw |
| Spindle Travel | |
| X1/Y1/Z1 axis travel | 60/230/180mm |
| X1/Y1/Z1 axis servo motor power | 0.75kw/1kw/1kw |
| Sub-spindle travel | |
| X2/Y2/Z2 axis travel | 380/NA//160mm |
| X2/Y2/Z2 axis servo motor power | 1kw/NA/1kw |
| Controller | |

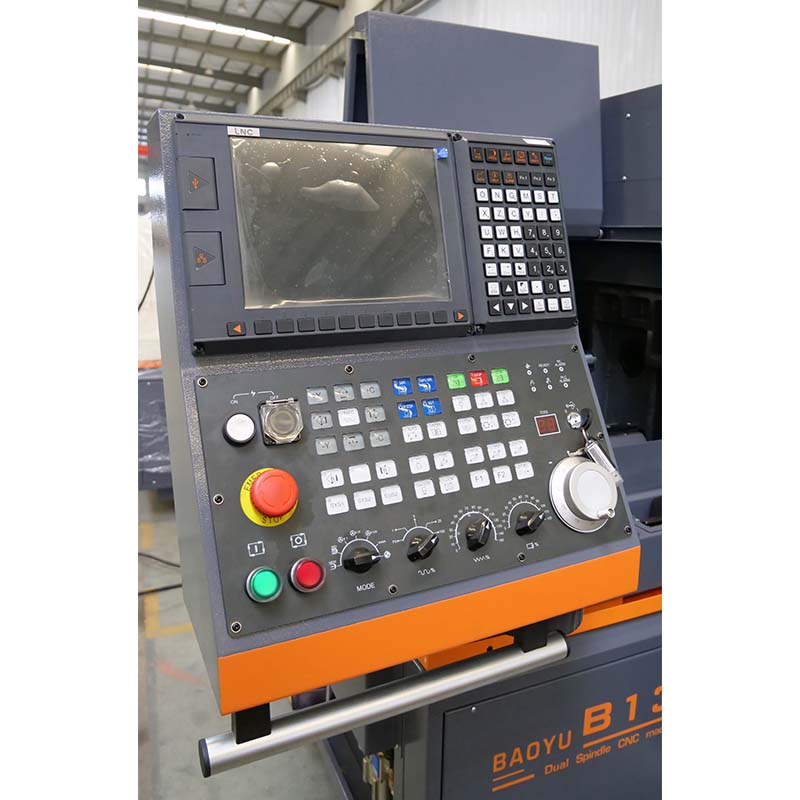

| Controller model | LNCT6850 |
| X Axis Pulse Equivalent | 0.0005/NA/0.001mm |
| Max. cutting Speed | 4m/min |
| X /Y/Z axis max. fast feeding speed | 20/20/20m/min |
| Machine dimension | |
| Machine overall dimension（ LxWxH） | 2030x1360x1960mm |
| Machine weight | 1700kg |
