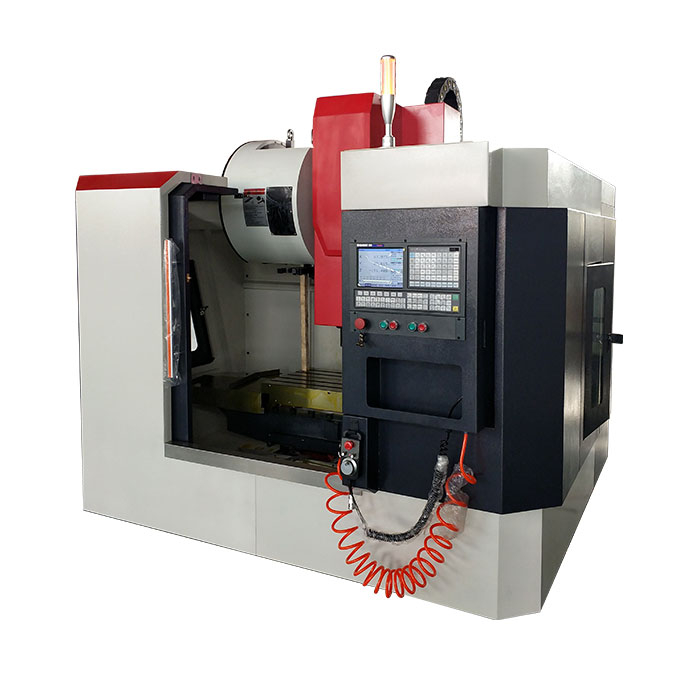

600x500x500mm CNC Machine Center for Metal Machining VMC650

  • VMC650
  • WMT
  • 8457101000
Availability:
Quantity:

Product Description

Features:

  • The product is X,Y,Z three-axis servo direct control semi-closed-loop vertical machining center,the three axes are all rectangular hardened rails,guide rails are wide,span is large,the structure and dimentions are compact and reasonable,the spidle is sevo motor synchronization Belt drive.

  • It can realize clamping of various kinds of discs,plates,housings,cams,dies and other complex parts at one time.

  • It can perform drilling ,milling,boring,expansion,reaming,rigid tapping,and other process operations,and is suitable for many varieties.

  • The production of medium and small batch products can meet the processing of complex and high-precision parts.

  • The forth rotary shaft can be equipped to meet the processing requirements of special parts.

VMC650主图

Specification
VMC650
Worktable area
800x450mm
X/Y/Z travel
600x500x500mm
Spindle end to table distance
130~630mm
Spindle center to column guide surface distance
460mm
Workbence maximum load
500kg
T-slot(slot ×width×center distance)
3×18×125
Main motor power
5.5kw(servo motor)
Spindle inner cone
BT40
Spindle-speed
80~8000rpm
Maximum tool diameter(adjacent/empty)
φ80/φ130mm
Tool length
300mm
Tool weight
6kg
X/Y axis quick move
24m/min
Z axis quick move
10m/min
Cutting feed speed
1~5000mm/min
Positioning accuracy
0.025mm(GB)±0.008(actual measurement)
Repeat positioning accuracy
0.015mm(GB)±0.004(actual measurement)
Water tank capacity
200L
Cooling pump power
180W
Cooling pump flow
25L/min
Rated head
40m
Use air pressure
0.6MPa
