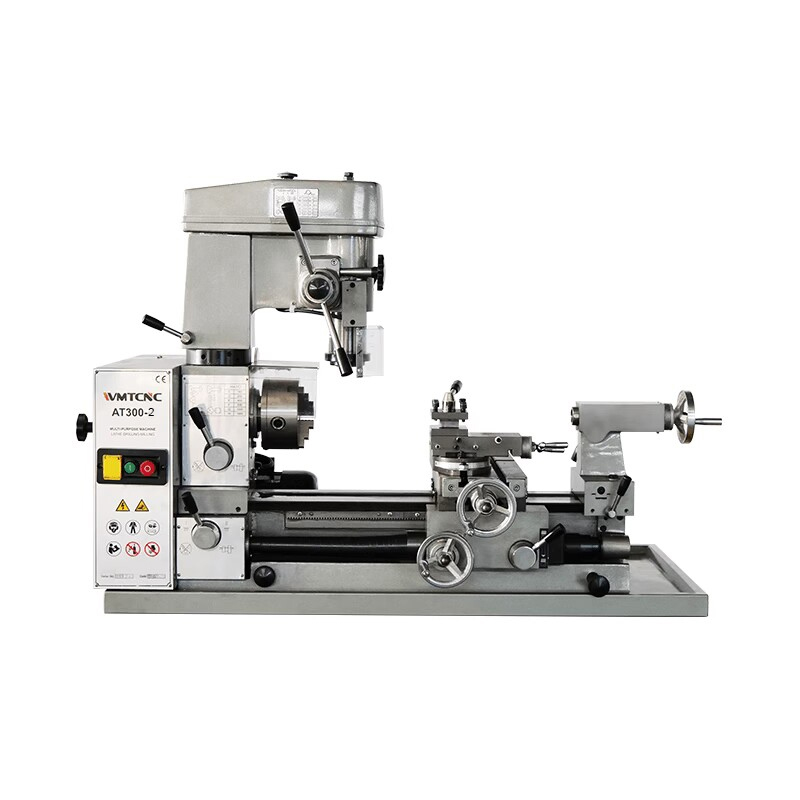

AT300-2 High Precision Drill Mill Lathe Machine Combined Lathe From China for Metalworking

AT300-2 drill mill lathe combo lathe machine for Sale

Product Description

Features:

1) High precision spindle.

2) More popular, widely useful variable speed lathe.

3) Induction harden precision bedway.

4) Powerful, maintenance-free motor.

5) Gear head, low noise.

AT300-1

Specification	AT300-2/AT300-5
Max. swing diameter over bed	300mm
Max.distance between centers	470mm
Max. cross travel of worktable	160mm
Spindle taper	MT4
Spindle bore	26mm
Range of spindle speed	160-1600r/min
Top slide travel	80mm
Metric thread range	0. 5-3mm
Inch thread range	11-40 1/n”
Quill travel	40mm
Quill taper	MT3
Motor power	0.55kw
Max.drilling capacity	15mm
Spindle speed	125-1600r/min
Spindle taper	MT3
Spindle stroke	80mm
Spindle nose to table	170-250mm
Working table size	200x150/425x150mm
Head rotation in vertical	360°
Motor power	N/A
Packing size	1160x580x600mm
N.w/G.w	160/190kg

Standard Accessories:

1) 3-jaw chuck

2) Speed display

3) Splash guard

4) Chip tray

5) Chuck guard

6) Dead center

7) Change gears

8) Draw bar

9) Morse taper

10) Drill chuck

11) Toolbox with tools
