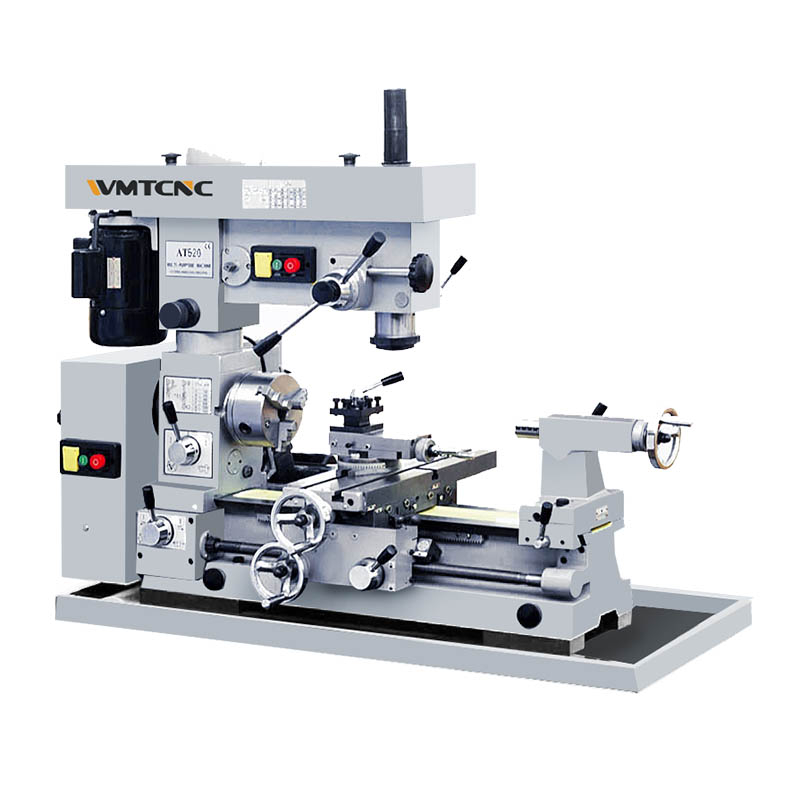

AT520
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.
| Specification | AT520/AT750 |
| Max. swing over bed | 300mm |
| Max. distance between centers | 500/750mm |
| Max. cross travel of worktable | 200mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Range of spindle speed | 160-1600r/min |
| Top slide travel | 80mm |
| Metric thread range | 0.5-3mm |
| Inch thread range | 11-40 1/n" |
| Barrel travel | 50mm |
| Barrel taper | MT3 |
| Motor power | 0.55kw |
| Max. drilling capacity | 20mm |
| Spindle speed | 315-2000r/min |
| Spindle taper | MT3 |
| spindle stroke | 80mm |
| Spindle nose to worktable | 240-320mm |
| Worktable size | 425x150mm |
| Head rotation in vertical | 360° |
| Motor power | 0.37kw |
| Packing size | 1100/1350x550x740mm |
| N.w/G.w | 230/270kg |
Standard Accessories:
1) 3-jaw chuck
2) Speed display
3) Splash guard
4) Chip tray
5) Chuck guard
6) Dead center
7) Change gears
8) Draw bar
9) Morse taper
10) Drill chuck
11) Toolbox with tools
