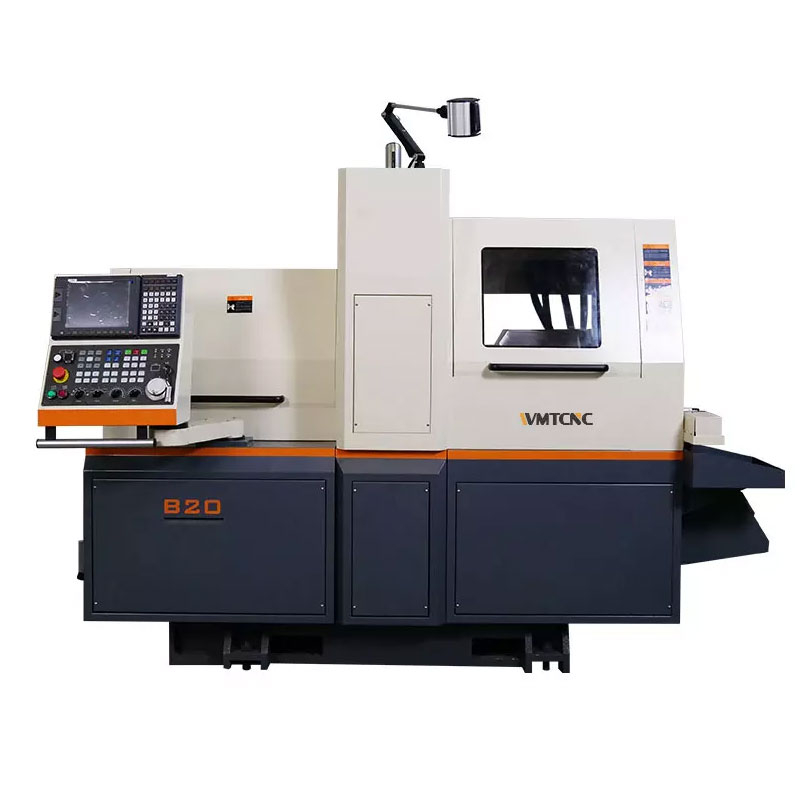

B20 5 Axis High Precision Cnc Swiss Type Lathe with Dual Spindle for Turning And Milling

  • B20

  • WMTCNC

  • 8459310000

Availability:
Quantity:

Product Description

Features:

1. Using the counter spindle and the back tool post, front and back processing can be performed at the same time.

2. Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping.
3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces.
4. Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits.
5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle.
6. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving.

b20

Specificaton
B20
Spindle
Max. bar throught hole
Φ20mm
Spindel through diameter
Φ21mm
Spindle center height from the ground
1050mm
Motorized/Sevrvo spindle revolving speed
10000/5000r/min
Power of Motorized/Servo spindle
7.5kw/4kw
Sub spindle
Max. clamping dia.
Φ20mm
Spindle speed
0-5000r/min
Motor power
2kw
CNC system
LNC
LNC-T6800D
Min. setting unit
0.001mm
Min. moving unit X
0.0005mm
Min. moving unit Z
0.001mm
Cutting speed
1-4000mm/min
X rapid travel speed
20000mm/min
Y rapid travel speed
20000mm/min
Z rapid travel speed
20000mm/min
Stroke
X stroke
140mm (Dia. value)
Y stroke
300mm
Z stroke
300mm
X axis servo motor power
1kw
Y axis servo motor power
1kw
Z axis servo motor power
1kw
Guideway
Linear guideway
X1 stroke
500mm (Dia. value)
Z1 stroke
200mm
X1 servo motor power
1kw
Z1 servo motor power
1kw
Power
Rated voltage
3 phase AC 380V
Rated frequency
50HZ
Total input power
17kw
Cooling system
Cutting motor power
0.18kw
Capacity of coolant container
150L
Lube system
Motor power
25w
Capacity
1.5L
Live tool
Side live tool
4 nos.
Power
1kw
ER collet
ER11/ER16 (each 2 nos.)
Front live tool (optional)
3 nos.
Front live tool for sub spindle(optional)
4 nos.
Tool post
12*12 squre tool+Φ20 boring tool
6 nos.+4 nos.
Machine size

L*W*H
2090*1200*1800mm
Weight
