B5020 factory promotion vertical slottint machine for sale

  • B5020
  • WMT
Quantity:

Product Description

Features:

Three-axis association

The plunger reciprocates in a vertical straight line with the slider, and the work piece is processed by intermittent feeding movement along the longitudinal, transverse and circumferential directions.

Configuration system

The NC system and the fourth axis are configured to realize the bolt function of the special work piece, which greatly improves the application range and processing efficiency of the machine tool.

Suitable for the processing of key slot and spline in auto parts and aviation plugs.

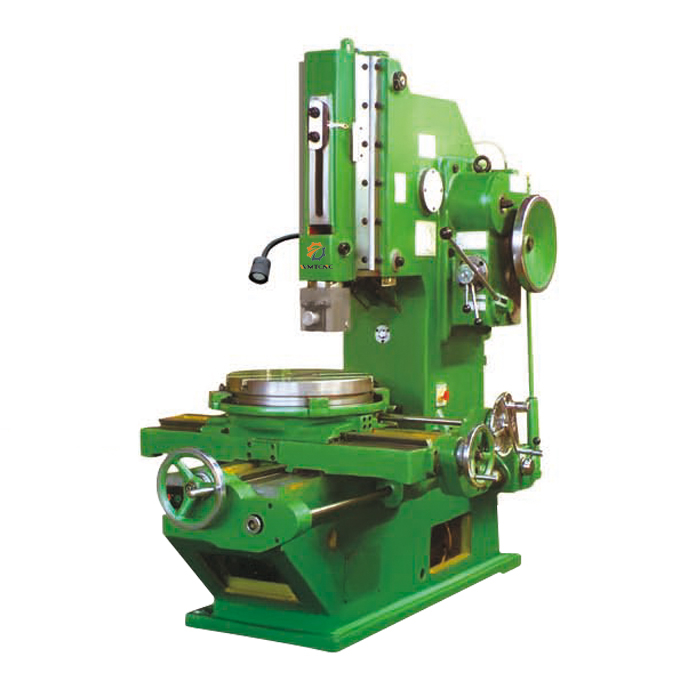

B5032-B5020

Specification B5020
X-axis stroke 500mm
Travel Y-axis 500mm
Max.pin length 200mm
Sleeper movement times 32,50,80,125min
Main motor power(servo motor) 3KW
Workbench size 500×500mm
Fast moving speed (X/Y) -
Gyration angle 360°
The distance between the working table and the slippery pillow 320mm
Max.load of worktable 120KG
shape size 1916×1305×1995mm
Machine tool weight(about) 2200KG
Package dimensions 2200/1400/2300mm



Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
