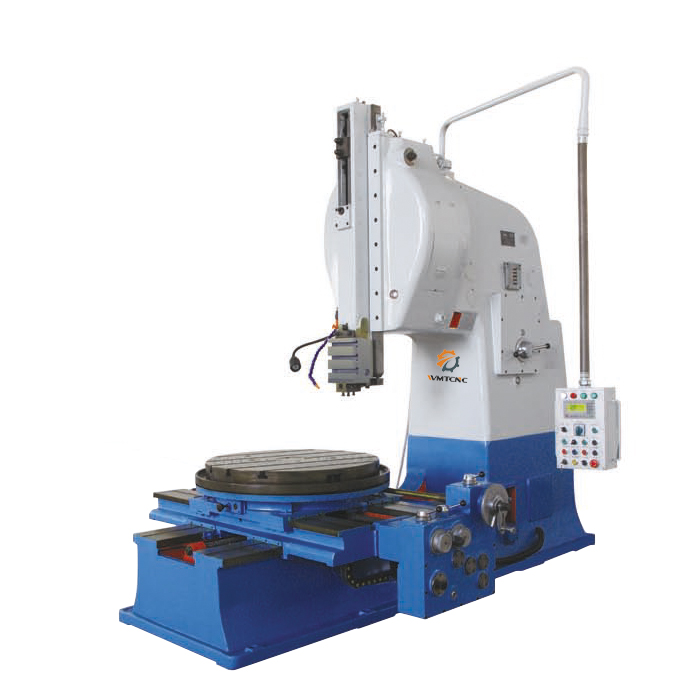

This slotting machine is used for cutting plane and shape of parts surface and groove, etc.
The machine adopts double crank mechanism the moving stable table adopts advanced PLC system and this feeding system is composed of digital control system and feeding motor system.
Worktable with mobile rotary positioning processes multi-keyway provides convenient.
Continuous non-polar feed.
Real-time feed parameters.
When the machine tool is used for a long time,the machine system wears severely,it can be carried out by professionals to do some error.
compensation with the control system to ensure the accuracy.
|Maximum cutting length(inserted hole 450 mm)||500mm|
|Worktable maximum longitudinal movement distance||660nm|
|Worktable maximum lateral movement distance||1000mm|
|Workbench maximum load||2000kg|
|Distance from work surface to the lower end of the carnage||740mm|
|Distance from the tool support surface to the front wall of the bed||990mm|
|Ram adjustment distance||430nm|
|Ram tilt angle (left and right direction)||±10deg|
|Number of ram reciprocation(minutes)||184.108.40.206.25.3650|
|Workable vertical and horizontal maneuvering feed rate map(millimeter ram reciprocating once)||0.10.20.30.40.61.2|
|Working and turning maneuvering feed range(slipping once)||3'6'9'12'18'36|
|Maximum cutting force||16000N|
|Main drive electric machine||7.5kw1440r.P.m|
|Feed servo motor||4.0kw|
|Cooling pump motor||0.125kw2800r.p.m|
|Machine contour(length x width x height)||3480×2085×3307mm|
|Split package size||3680/2260/1200/2250/1100/2250mm|
