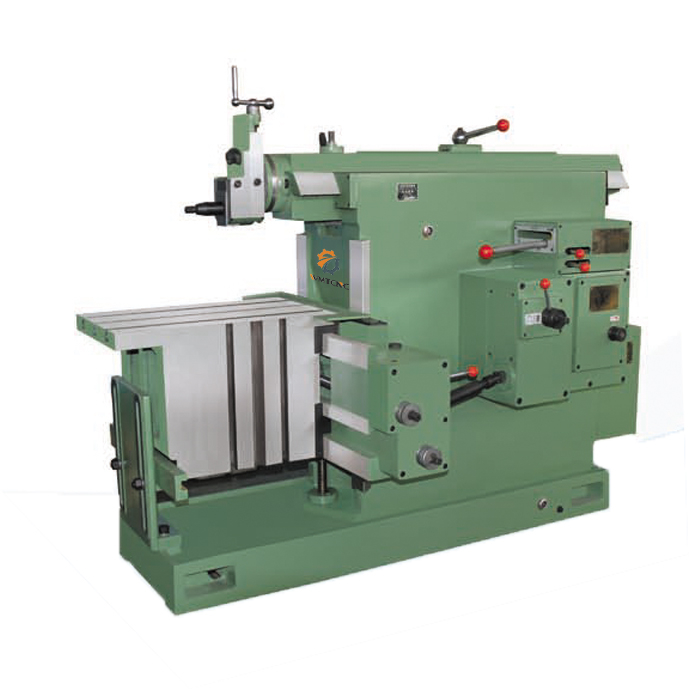

Product Description
Features:
Feed
Table along the beam guide rail can do manually or maneuvering horizontal feed.
The motor has 12 different feeds for different processing
Configuration system
Configuration of numerical control system can achieve planing function of some special parts has greatly improved processing efficiency.
| Specification | BC6063 | ||||||||
| Maximum planing length | 630/660mm | ||||||||
| Maximum distance from the bottom of the working table | 385mm | ||||||||
| lateral travel | 630mm | ||||||||
| Vertical stroke | 360mm | ||||||||
| Tool frame travel | 120mm | ||||||||
| Sleeper reciprocating times (per minute) | 14/20/28/40/56/80 | ||||||||
| Main motor power | 3W | ||||||||
| The maximum size（width*thickness）of the handle | 20×30mm | ||||||||
| The size of the T groove in the center of the worktable | 18mm | ||||||||
| Angle of rotation | ±60°(刀架) | ||||||||
| Workbench size | 630×400/660×400mm | ||||||||
| Shape size | 2000×1300×x150/2357×1225×1480mm | ||||||||
| Machine tool weight (about) | 1750/1870,1800/1920KG | ||||||||
| Package dimensions | 2000/1300/1650mm | ||||||||
