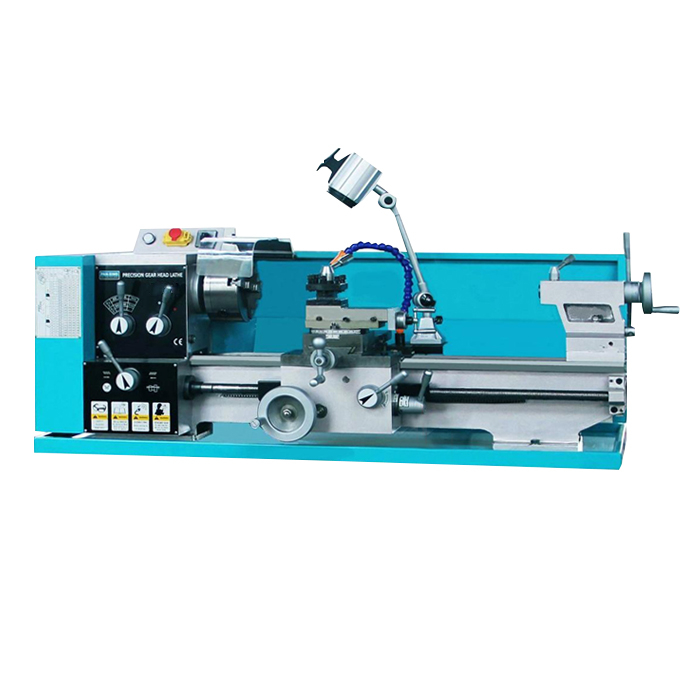

BL330E Easy Change Cross And Longitudial Feeding Lathe Metal

  • BL330E

  • WMT

Availability:
Quantity:

Product Description

Features

  • Precision ground and hardened bed ways.

  • The spindle is supported with precision roller bearings.

  • Headstock gears are made of high quality steel, ground and hardened.

  • With or without cabinet according to requirement.

BL330E

Specifications
BL330E
Swing over bed
330mm
Swing over carriage
160mm
Center distance
600/700mm
Spindle bore
38mm
Spindle speed
60-1800mm
Spindle taper
MT5
Toolpost travel
100mm
Longitudinal travel
680mm
Cross travel
160mm
Metric thread
15/0.5-4mm
Inch thread
23/9-40TPI
Tailstock taper
MT3
Tailstock max. travel
85mm
Motor power
1100W
Net weight
245/275kgs
Packing size
1400/1420x760x650mm
