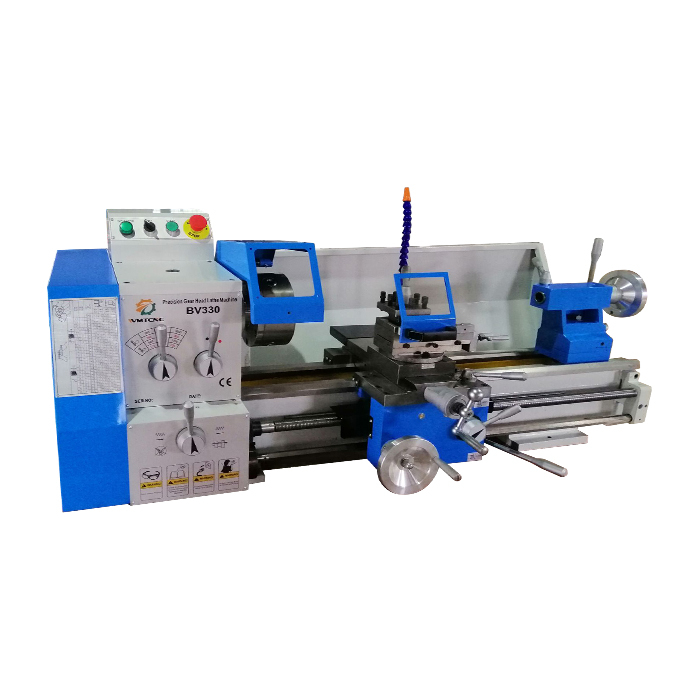

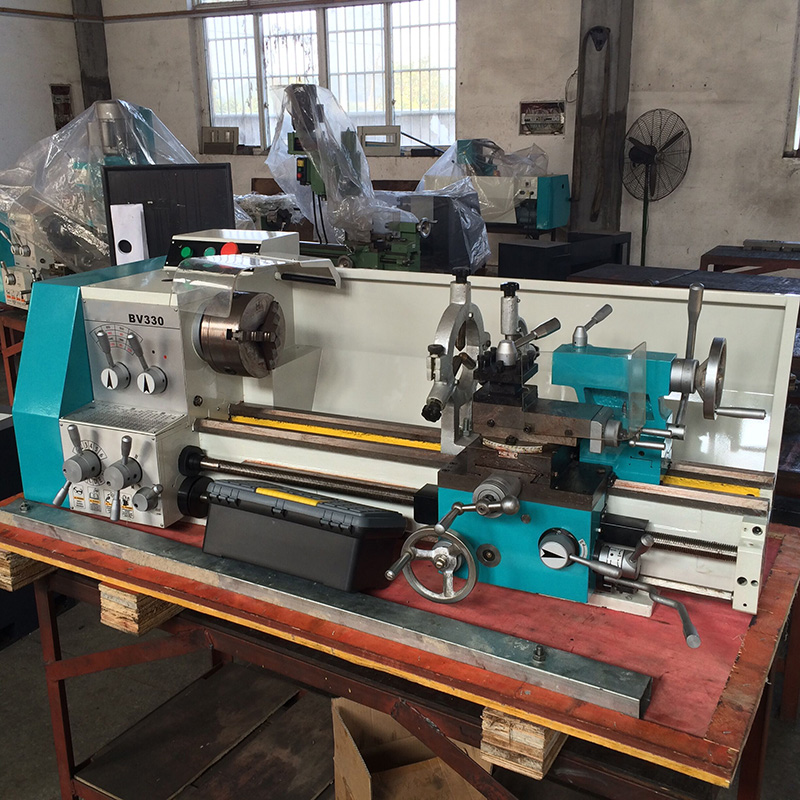

BV330
WMTCNC
| Quantity: | |
|---|---|
Product Description
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.

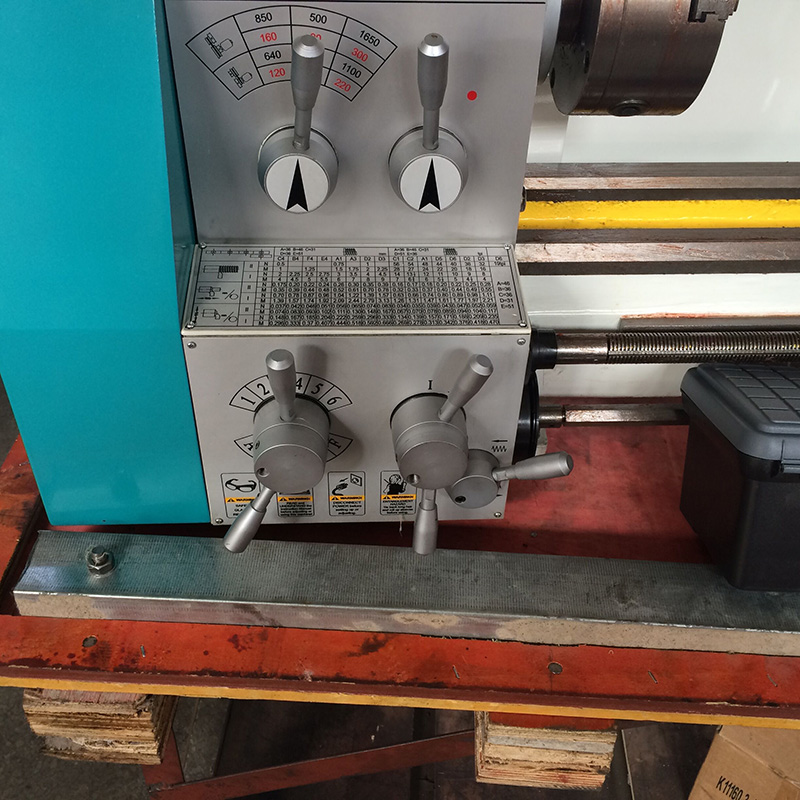

Headstock gears are made of high quality steel, ground and hardened.
Spindle speed range 60-1650rpm.
Two different lengths of bed are available.
With or without cabinet according to requirement.
| Specification | BV330 |
| Swing over bed | 330mm |
| Swing over gap | 220mm |
| Center distance | 700mm |
| Spindle bore | 38mm |
| Spindle speed | 60-1650mm |
| Spindle taper | MT5 |
| Small toolpost travel | 75mm |
| Longitudinal tracel | 160mm |
| Cross travel | 100mm |
| Metric thread | 20/0.2-3.5mm |
| Inch thread | 20/56-8 TPI |
| Tailstock taper | MT3 |
| Tailstock travel | 70mm |
| Motor power | 1100W |
| Net weight | 240kgs |
| Packing size | 1420x770x640mm |
