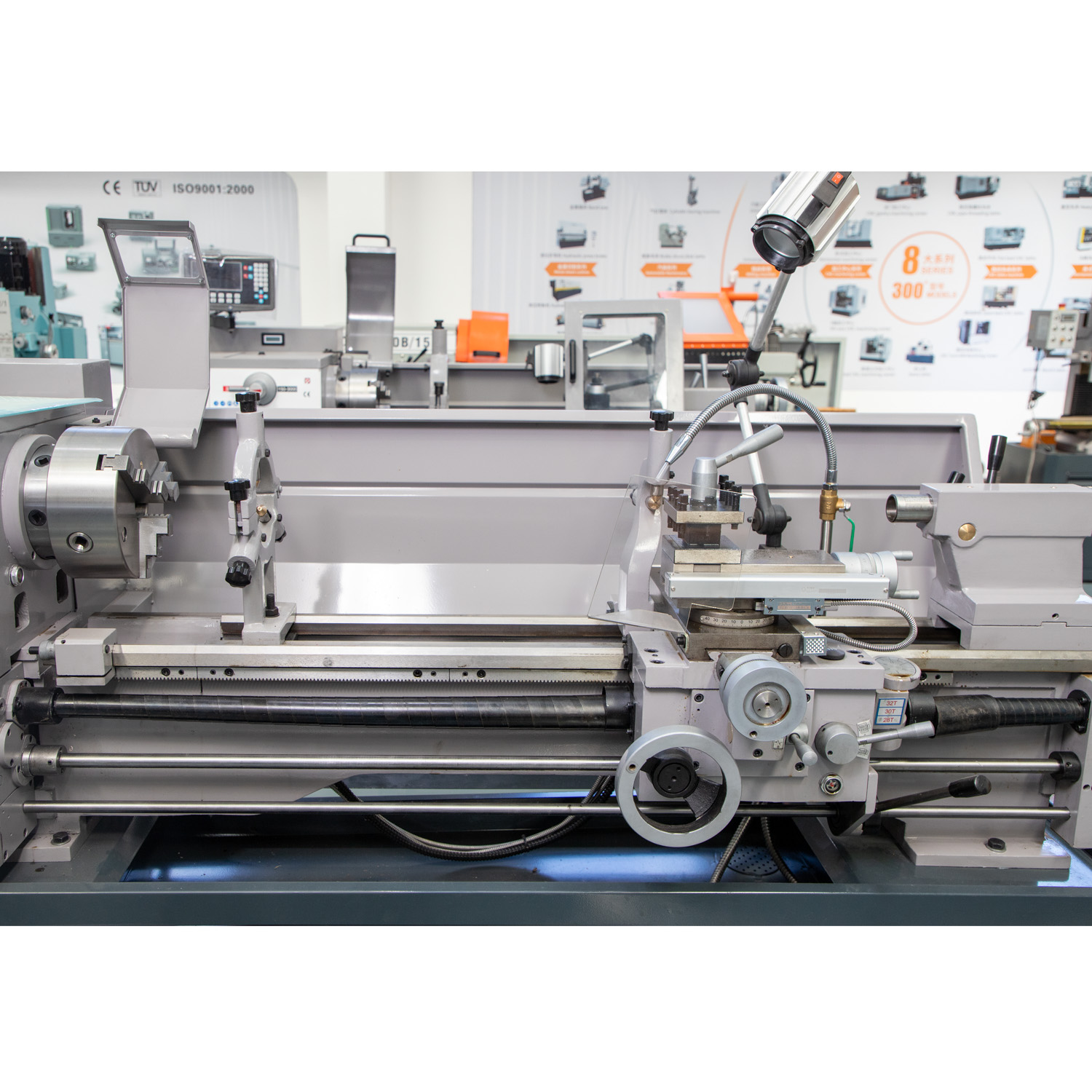

Bench lathe C0636A precision metal lathe machine with CE Standard

  • C0636A
  • WMT
Quantity:

Product Description

Features:Precision ground and hardened bed ways. The spindle is supported with precision roller bearings. Headstock gears are made of high quality steel ground and hardened. Easy operating speed change levers. Removable gap is provided for larger diameter work. Easy operating gear box has various feeds and thread cutting function.
Specifications
C0632A×750/1000mm
C0636A×750/1000mm

C0632B×750/1000mm
C0636B×750/1000mm
Swing over bed
Φ330mm(13")
Φ360mm(14")
Swing over cross slide
Φ198mm(7-25/32")
Φ212mm(8-1/6")
Swing over gap
Φ476mm(18-3/4")
Φ491mm(9-1/3")
Distance between centers
750mm(30")/1000mm(40")
Bed width
187mm(7-3/8")
Spindle bore and nose
A: Φ38mm(1-1/2") / D1-4 camlock

B: Φ52mm(2")/D1-5 camlock
Taper in nose
MT5
Speeds number
8 or 16(pole changeable motor:optional)
Speeds range
70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread
8 TPI or 3mm pitch
Cutting tool max section
16×16mm(5/8"×5/8")
Threads imperial pitches
36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches
28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial
36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric
36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)
Cross feeds imperial
36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric
36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)
Tailstock barrel taper and travel
MT3 100mm (3-15/16")
Main motor
1.5KW/3 PH or 1 PH
Cross slide travel
160mm(6-5/16")
118mm(4-5/16")
Compoud rest travel
68mm(2-11/16")
Net /Gross weight
570/620kg 620/670kg
610/660kg 650/700kg
Packing size
1890/1940 X 750 X 1510mm
