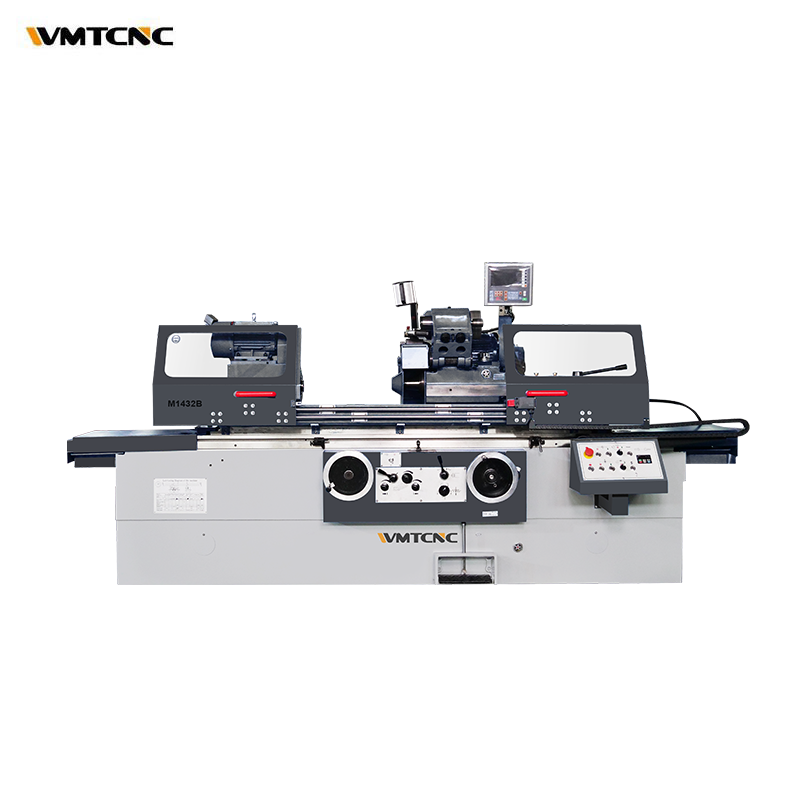

Benchtop Precision Cylindrical Grinding Machine M1432B*1000 Universal Cylindrical Grinder

  • M1432B

  • WMTCNC

Availability:
Quantity:

Product Description

Main Features:

1. M1432B Universal Cylindrical Grinder is an improved design of its predecessor, M131W and M1432A, with full retainment of their noteworthy merits. It is operated by hand and  can be controlled and actuated either by power or by hydraulic system.

2. In comparison the machine is superior to M1432A in the following field: Greater rigidity and resistance to temperture change deformation of the machine body; lager diameter for the grinding wheel spindle bearings. More power of grinding wheel and use of small orifice lubricant restrictor for better finish in grinding performance.

3. Machine table longitudinal travel, wheelhead rapid approach and withdrawal and automtic periodic cross infeed are driven hydro-electrically by pushing button operation. The machine  also has the following functions: hand-operated workable and wheelhead manually traverse infeed plus hydraulic tailstock quill retraction by foot.

4. The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, or wheelhead or table, components  with different external or  internal taper can be ground . By turning down the internal grinding selection. The chuck mounted using short axis.

5. Workpiece, external and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.

6. All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation.
External and internal grinding wheels are guarded in sound and strong covers.

M1432B 1000-wmt

Specification M1432B×1000 M1432B×1500 M1432B×2000 M1432B×3000
Grinding length(O.D/I.D) 1000/125 mm 1500/125 mm 2000/125 mm 3000/125 mm
Grinding dia.(O.D/I.D) Φ8~Φ320/Φ30~Φ100 mm
Center height 180 mm 180 mm 180 mm 180 mm
Max. workpiece weight 150 kg 150 kg 150 kg 150 kg
Worktable speed 0.1~4 m/min 0.1~4 m/min 0.1~4 m/min 0.1~4 m/min
Max. peipheral speed of grinding wheel 38 m/s 38 m/s 38 m/s 38 m/s
Max. travel of table 1100 mm 1600 mm 2100 mm 3100 mm
Swivel range of worktable -3~+7° -3~+6° -2~+5° -2~+3°
External wheel size Φ400×50×Φ203 mm Φ500×50×Φ203 mm
Spindle speed of headstock 50Hz:25~220 stepless r/min                  60Hz:30~264 stepless r/min
Headstockand tailstock center MT4 MT4 MT4 MT4
Wheelhead displacement per div. of handwheel
coarse/fine
0.01/0.0025 mm 0.01/0.0025 mm 0.01/0.0025 mm 0.01/0.0025 mm
Total motor power 9 kw 9 kw 9 kw 9 kw
Overall dimensions(L×W×H) 3605×1810×1515 mm 4605×1810×1515 mm 5605×1810×1515 mm 7605×1810×1515 mm
Machine weight 3700 kg 4300 kg 6600 kg 8600 kg
