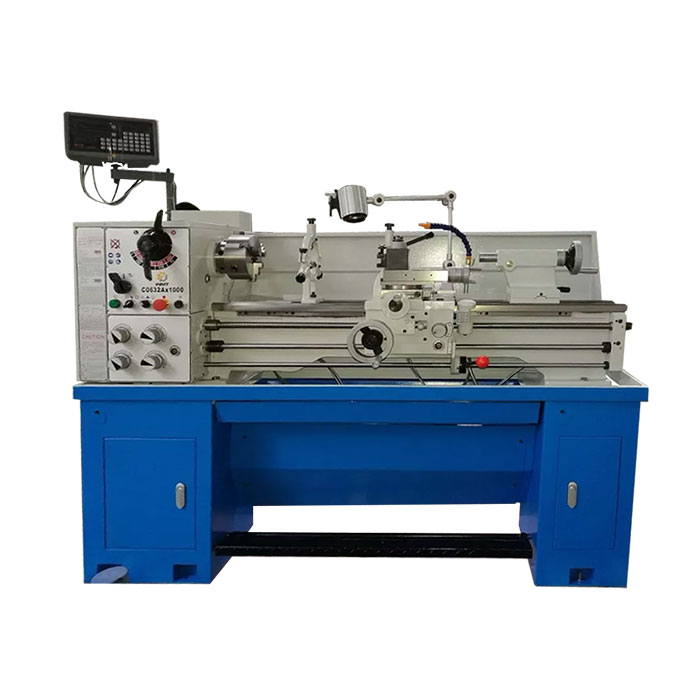

C0632A
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.

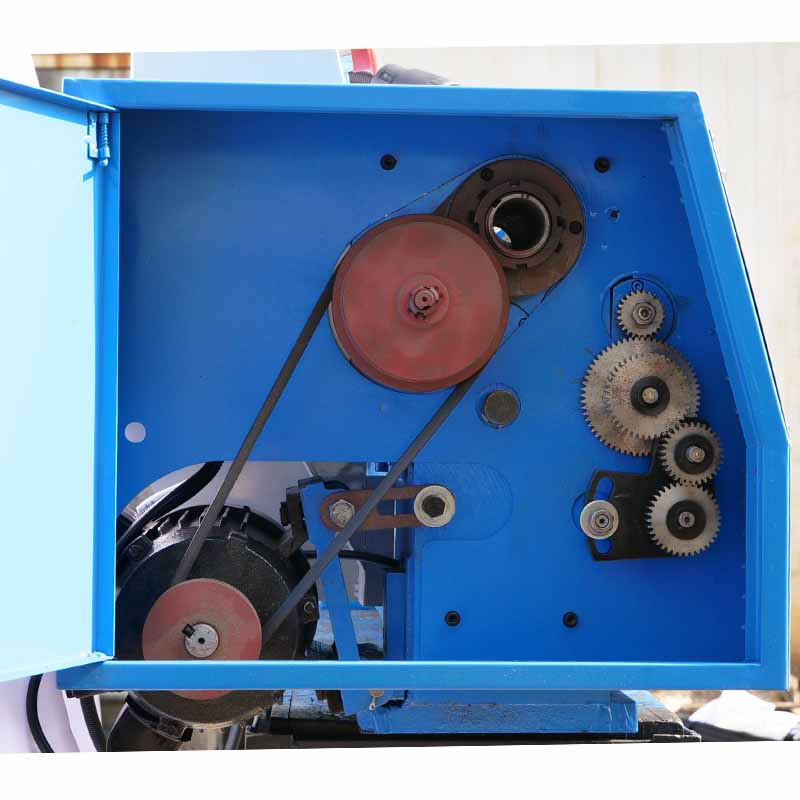

3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) With or without cabinet according to requirement.
| Specifications | C0632A×750/1000mm | C0636A×750/1000mm |
| C0632B×750/1000mm | C0636B×750/1000mm | |
| Swing over bed | Φ330mm(13") | Φ360mm(14") |
| Swing over cross slide | Φ198mm(7-25/32") | Φ212mm(8-1/6") |
| Swing over gap | Φ476mm(18-3/4") | Φ491mm(9-1/3") |
| Distance between centers | 750mm(30")/1000mm(40") | |
| Bed width | 187mm(7-3/8") | |
| Spindle bore and nose | A: Φ38mm(1-1/2") / D1-4 camlock | |
| B: Φ52mm(2")/D1-5 camlock | ||
| Taper in nose | MT5 | |
| Speeds number | 8 or 16(pole changeable motor:optional) | |
| Speeds range | 70-2000rpm or 35-2000 rpm(2 speed motor) | |
| Leadscrew thread | 8 TPI or 3mm pitch | |
| Cutting tool max section | 16×16mm(5/8"×5/8") | |
| Threads imperial pitches | 36 Nos. 8-112TPI or (34 Nos. 4-56TPI) | |
| Thread metric pitches | 28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm) | |
| Longitudinal feeds imperial | 36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev) | |
| Longitudinal feeds metric | 36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev) | |
| Cross feeds imperial | 36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev) | |
| Cross feeds metric | 36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev) | |
| Tailstock barrel taper and travel | MT3 100mm (3-15/16") | |
| Main motor | 1.5KW/3 PH or 1 PH | |
| Cross slide travel | 160mm(6-5/16") | 118mm(4-5/16") |
| Compoud rest travel | 68mm(2-11/16") | |
| Net /Gross weight | 570/620kg 620/670kg | 610/660kg 650/700kg |
| Packing size | 1890/1940 X 750 X 1510mm | |
