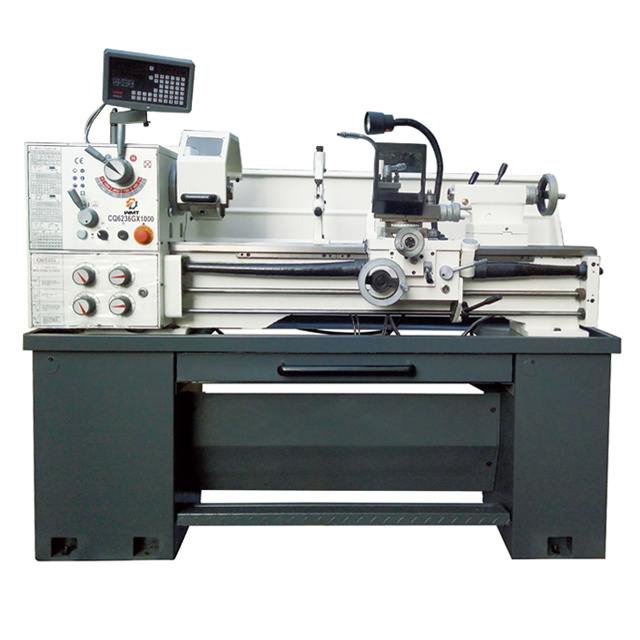

C0636B 14" X 39" High Precision Metal Lathe W. DRO

  • C0636B
  • WMT
Quantity:

Product Description

C0636B主图

Main Specification

SpecificationsC0636A×1000mm

C0636B×1000mm

Swing over bedΦ360mm(14")
Swing over cross slideΦ212mm(8-1/6")
Swing over gapΦ491mm(9-1/3")
Distance between centers1000mm(40")
Bed width187mm(7-3/8")
Spindle bore and noseA: Φ38mm(1-1/2") / D1-4 camlock
B: Φ52mm(2")/D1-5 camlock
Taper in noseMT5
Speeds number8 or 16(pole changeable motor:optional)
Speeds range70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread8 TPI or 3mm pitch
Cutting tool max section16×16mm(5/8"×5/8")
Threads imperial pitches36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)
Cross feeds imperial36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)
Tailstock barrel taper and travelMT3 100mm (3-15/16")
Main motor1.5KW/3 PH or 1 PH
Cross slide travel118mm(4-5/16")
Compoud rest travel68mm(2-11/16")
Net /Gross weight610/660kg 650/700kg
Packing size1890/1940 X 750 X 1510mm

 Features:

1) Precision ground and hardened bed ways.

2) The spindle is supported with precision roller bearings.

3) Headstock gears are made of high quality steel ground and hardened.

4) Easy operating speed change levers.

5) Removable gap is provided for larger diameter work.

6) Easy operating gear box has various feeds and thread cutting function.


Standard Accessories:

1) 3-jaw chuck

2) Dead centers MT3

3) Change gears set

4) Splash guard

5) Oil gun

6) Toolbox with tools
