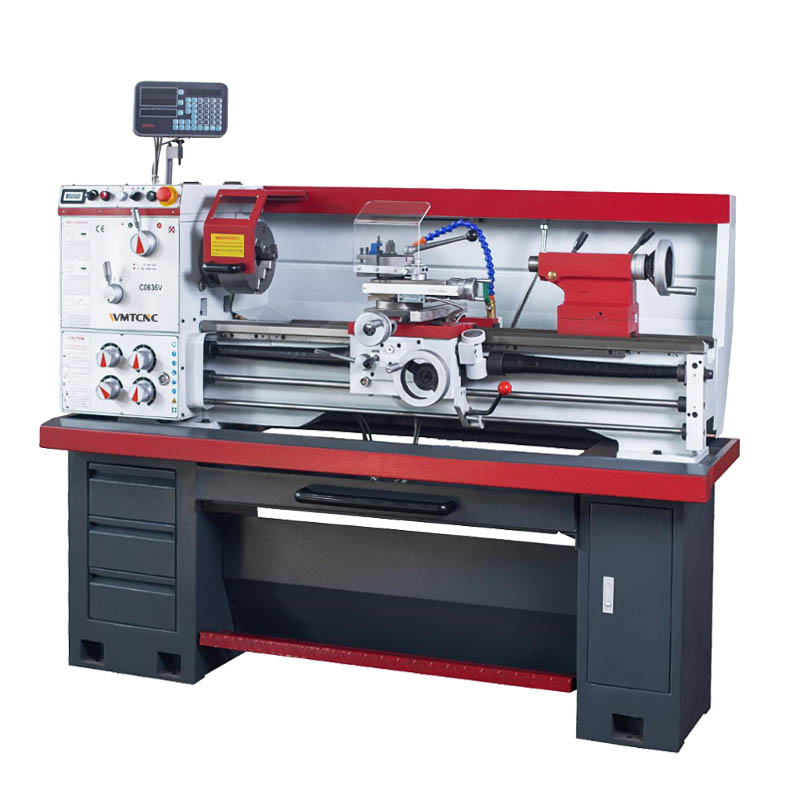

C0636V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:

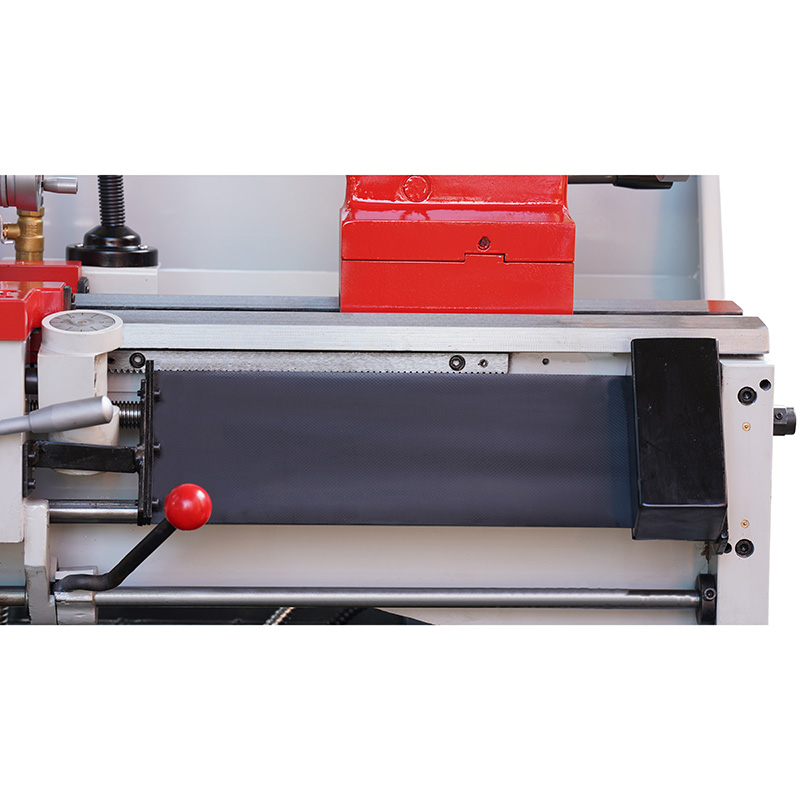

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.

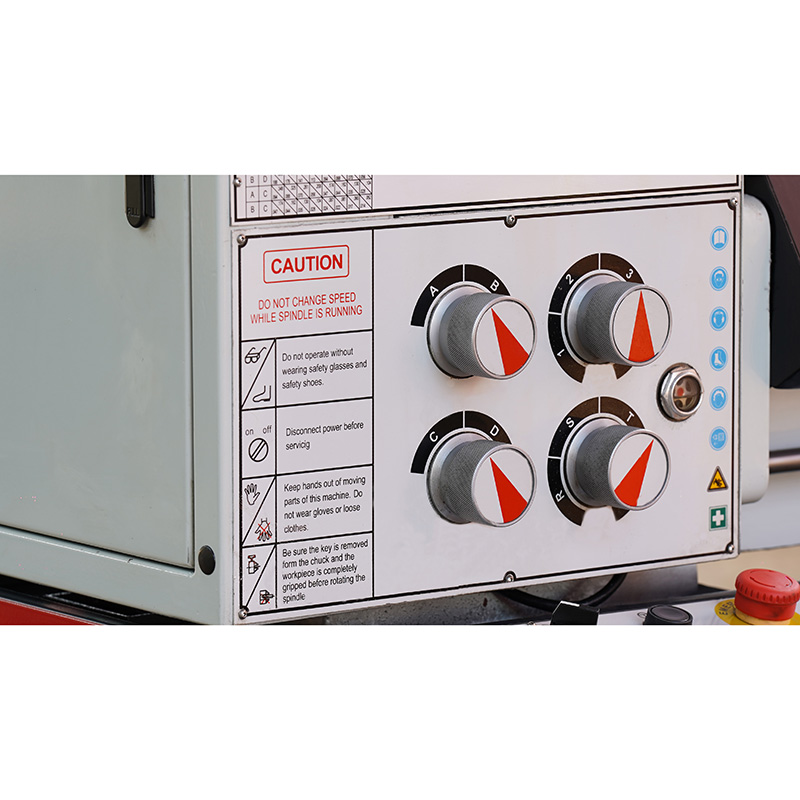

Easy operating gear box has various feeds and thread cutting function.
| Specification | C0636V |
| Max. swing over bed | 360mm |
| Max. swing over cross slide | 215mm |
| Max. swing over gap | 500mm |
| Distance between centers | 1000mm |
| Width of bed | 187mm |
| Spindle bore and nose | 51mm |
| Spindle taper | MT5 |
| Speed number | 2 steps |
| Cross slide travel | 190mm |

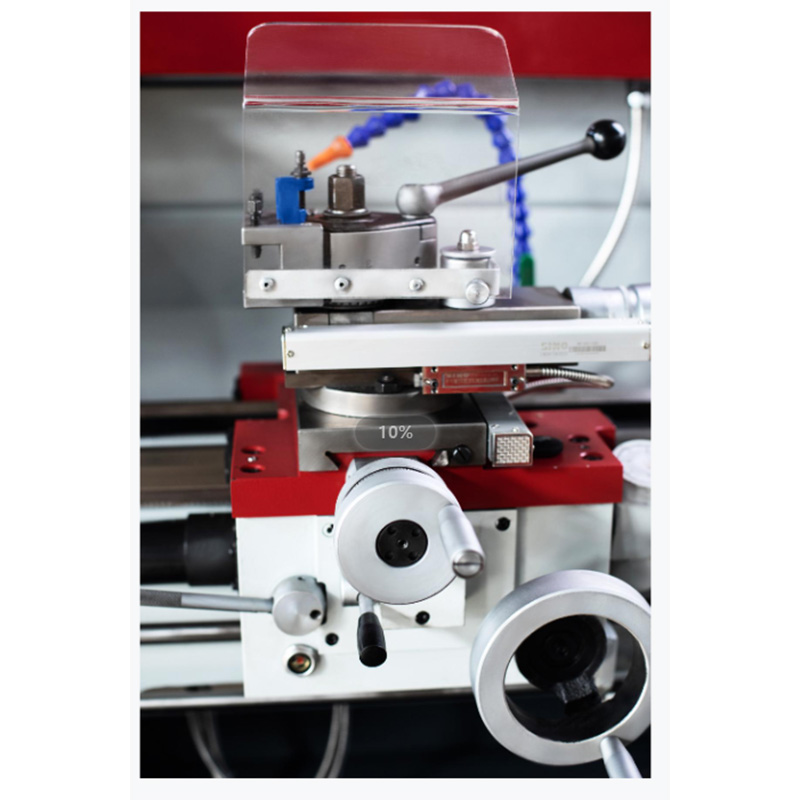

| Compound rest travel | 95mm |
| Spindle speed range | L:70-440rpm / H:350-2000rpm |
| Max. section of tool | 16mmx16mm(5/8"x5/8") |
| Threads inch pitches | 4-56TPI/34 kinds |
| Threads metric pitches | 0.4-7mm/26 kinds |
| Longitudinal feeds | 24Nos.0.046-3.249mm/rev |
| Cross feeds range | 24Nos.0.01-0.703mm/rev |

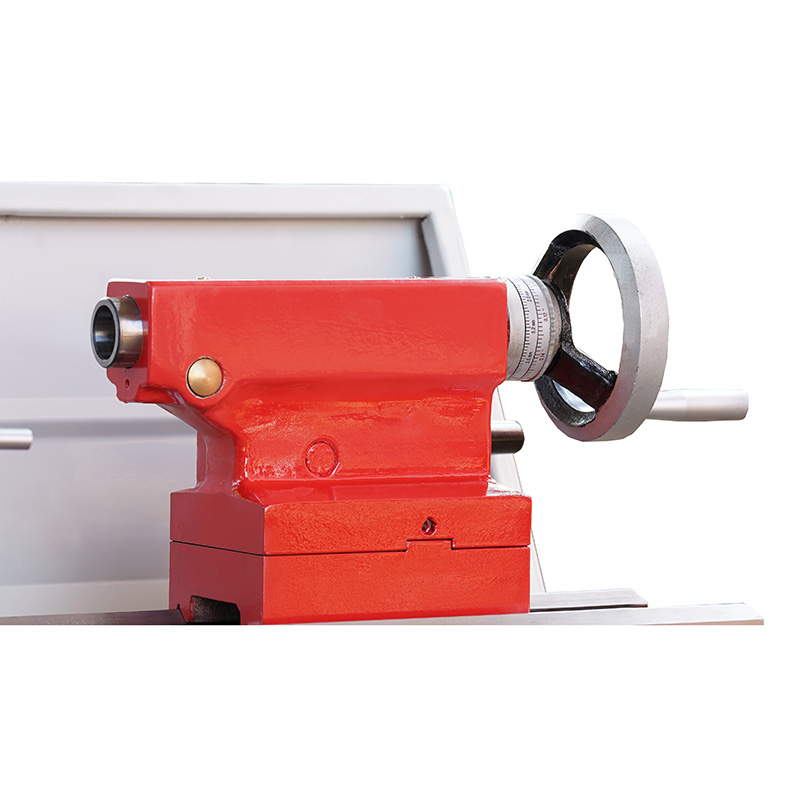

| Tailstock quill taper and travel | MT4 |
| Tailstock quill diameter | 42mm |
| Main motor power | 1.5kw |
| Coolant pump power | 40w |
| Packing size | 1930x760x1690mm |
| N.w/G.w | 660/765kg |
