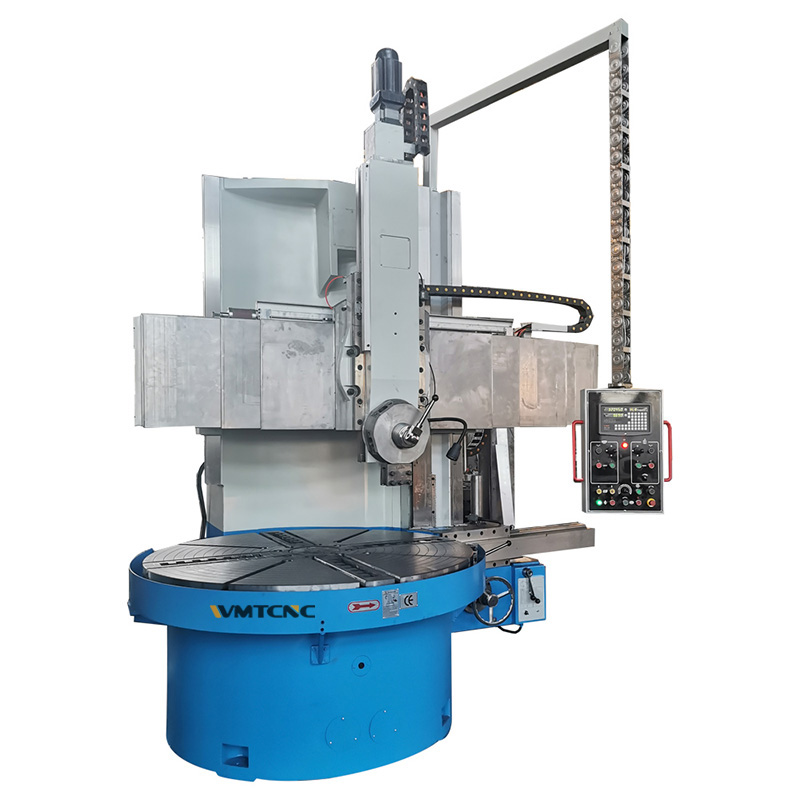

C5120 High Precision Heavy Duty Vertical Lathe Machine for Metal Processing

C5120 High Precision Heavy Duty Vertical Lathe Machine for Sale
  • C5120

  • WMTCNC

Availability:
Quantity:

Product Description

Features:

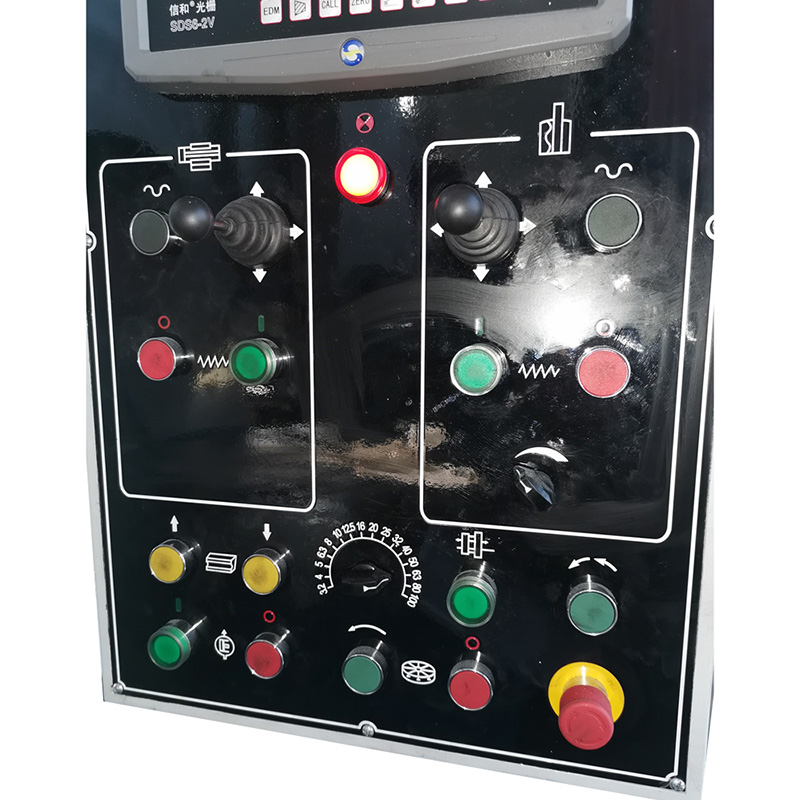

C51 series is a professional product designed according to the needs of motor, valve,pump,bearing,automobile,and other industries.This machine is suitable for high-speed steel and carbide tools,focusing on roughing and finishing of inner and other cylindrical surface,end face and grooving of ferrous metal,non-ferrous metal and some non-metal parts. The machine is easy to operate due to simple structure and convenient maintenance.The operate could operate the lathe by manipulating the handle and the buttons of the hanging button station for turning work.


1

Specification C5120D

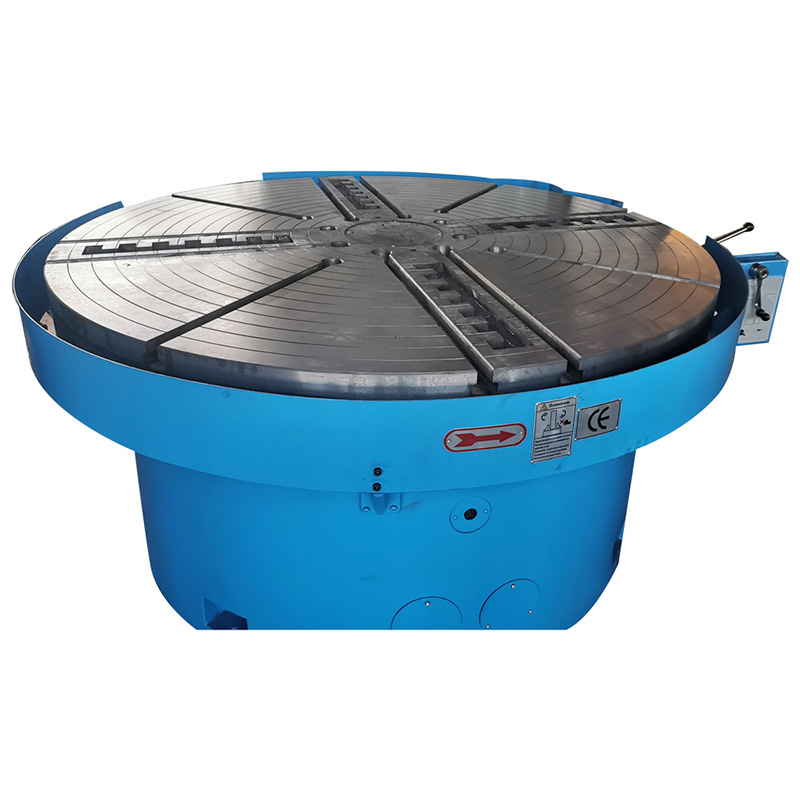

Table dia. 1800mm
Max. turning dia. 2000mm
Max. workpiece height 1250/1600mm
Max. workpiece weight 8t
Table speed range 3.2-100r/min
Table rotation speed step 16
Vertical toolpost feed range 0.8-86 r/min
Vertical side toolpost feed step 12
Horizontal travel of vertical toolpost 1110mm
Vertical travel of vertical toolpost 800/1000mm
Horizontal travel of side toolpost 630mm
Vertical travel of side toolpost 1100mm
Crossam ram travel 890/1240mm
Tool bar section size(Lx W) 30x40mm
Main motor power 30kw
Feeding motor power 1.3/1.8kw
N.W 17.5t
Overall size(LXWXH) 3210x2850x3910mm
