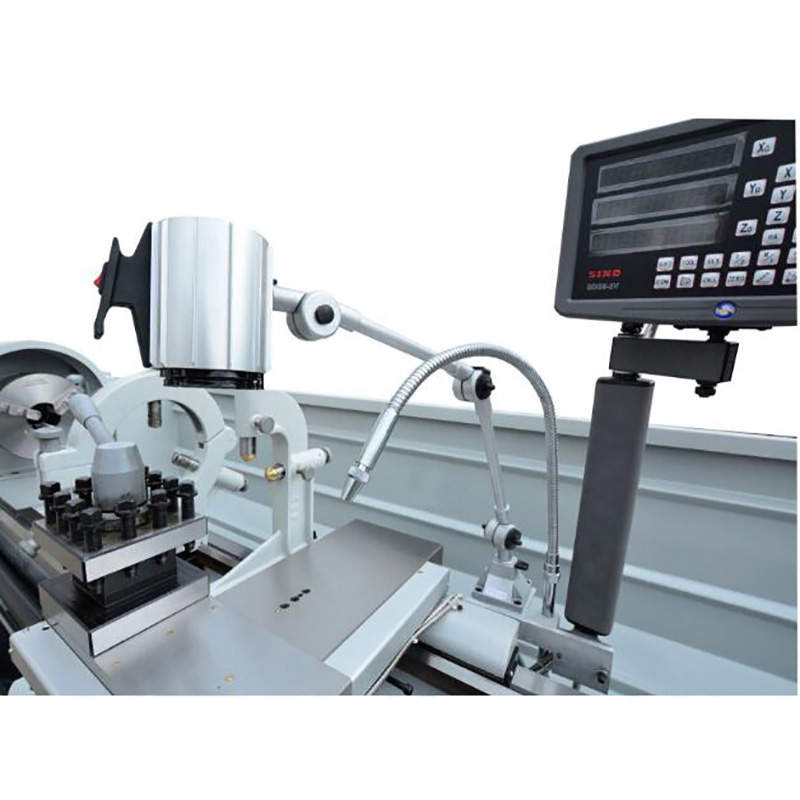

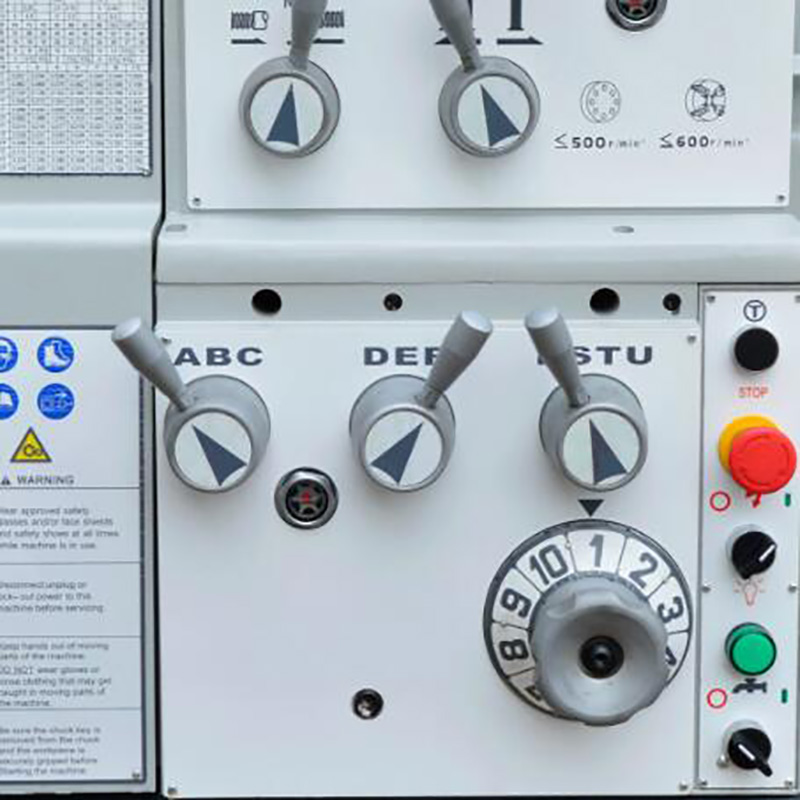

C6246- 460mm Swing Industrial Grade Big Bore High Precision Engine Lathe

  • C6246
  • WMT
  • 84581900
Availability:
Quantity:

Product Description

Features:

  • The spindle system is high in rigidity and accuracy.

  • The design of the main drive is optimized and the gears in the headstock are precision ground.

  • The noise of the machine is low. There is no need for change gears.

  • The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads.

  • An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and reliable pedal braking device providing quick and effective stop while operating.

c6246

Specification C6246
Swing over bed Φ460mm
Swing over cross slide Φ270mm
Swing in gap Φ690mm
Distance between centers 1000mm/1500mm/2000mm/3000mm
Valid length of gap 165mm
Width of bed 300mm
Spindle nose D1-6
Spindle bore Φ58mm
Taper of spindle bore MT6
Range of spindle speed 12 changes, 25-2000r/min
Max.travel of top slide 128mm
Max.travel of cross slide 285mm
Max.section of tool 25×25mm
Pitch thread of leadscrew 6mm or 4T.P.I.
Longitudinal feeds range 42 kinds,0.031-1.7mm/rev
Cross feeds range 42 kinds, 0.014-0.784mm/rev
Metric threads range 41 kinds, 0.1-14mm
Inch threads range 60 kinds, 2-112T.P.I.
Diametrical pitches range 50 kinds, 4-112DP
Module pitches range 34 kinds, 0.1-7MP
Tailstock quill diameter Φ60mm
Tailstock quill travel 128mm
Tailstock quill taper MT4
Power of main motor 5.5kw(7.5HP) 3PH
Power of coolant pump 0.1kw(1/8HP) 3PH
Overall dimension  2200/2750/3250×1080×1370mm
Packing size 2250/2800/3300×1120×1620mm
Net weight 1670/1920/2070kgs
Gross weight 1980/2265/2450kgs

Standard accessories:

  • 3 jaw chuck 200mm

  • 4 jaw chuck 250mm

  • Coolant system

  • Working light

  • Foot brake

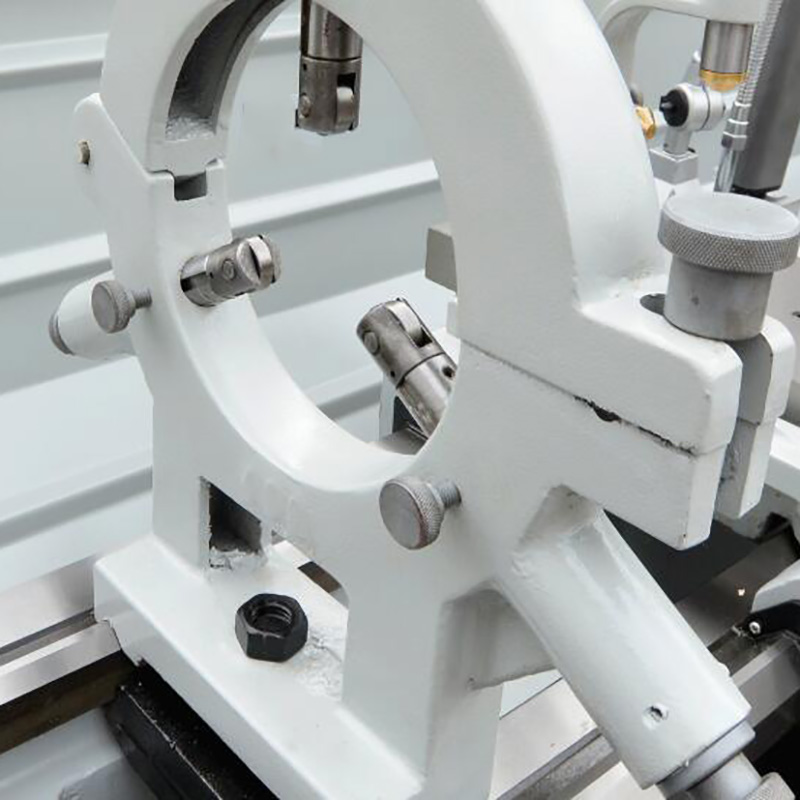

  • Steady rest

  • Follow rest

  • Change dial indicator

  • Change gears set

  • Tool box& tools
