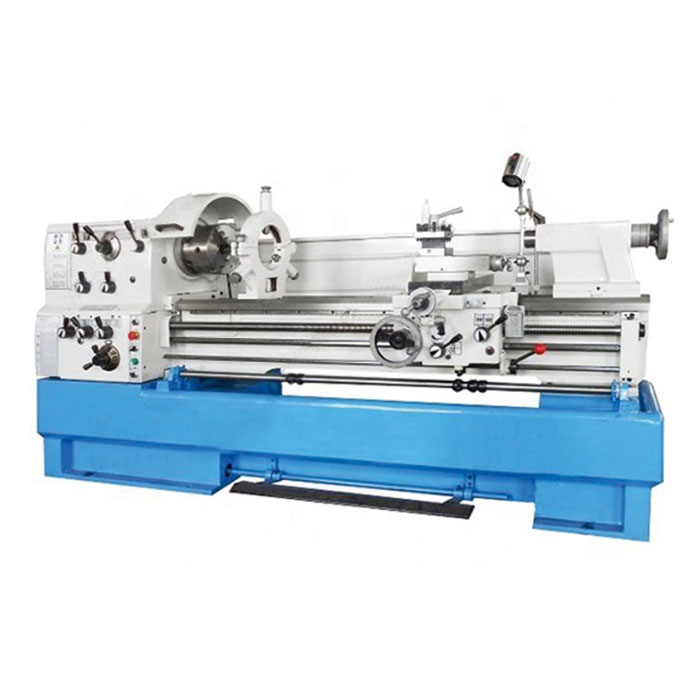

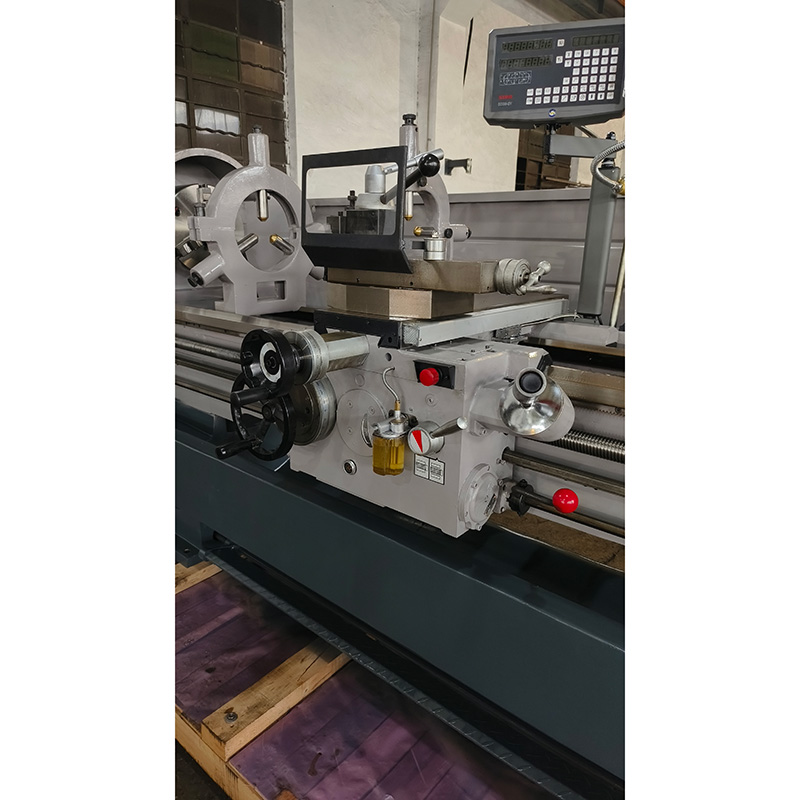

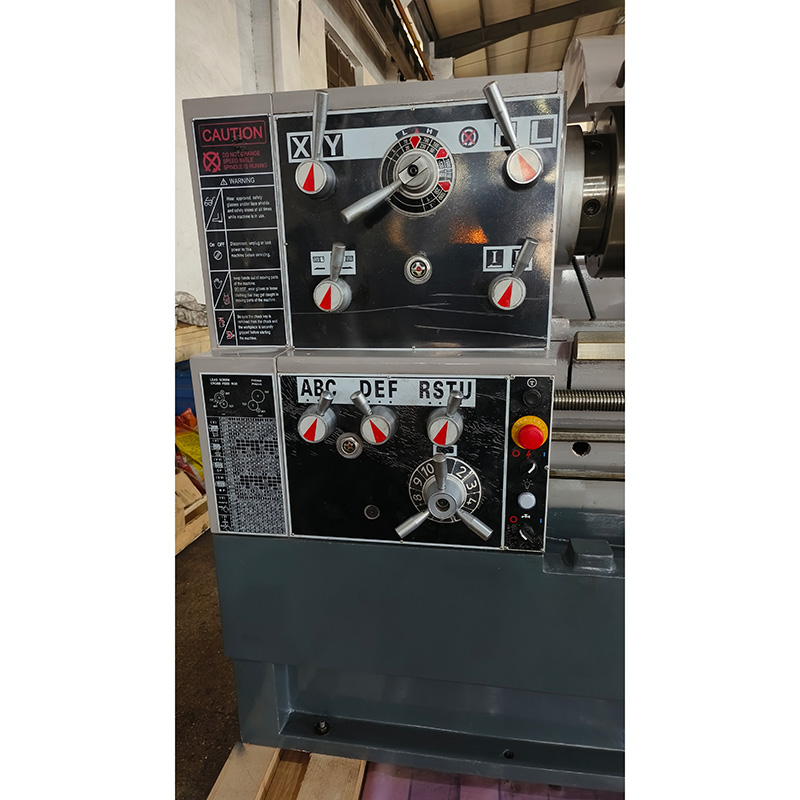

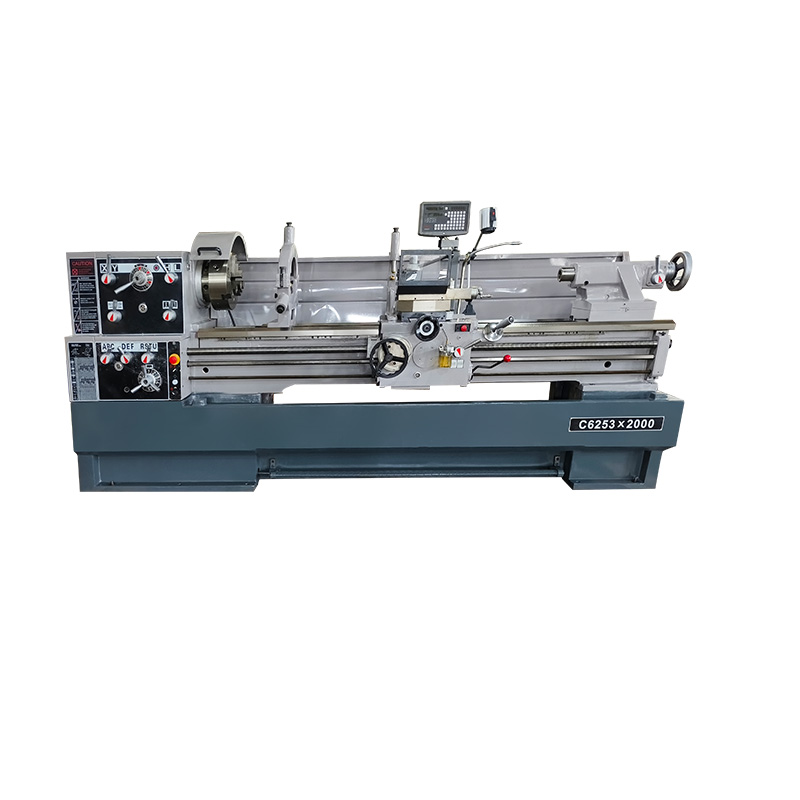

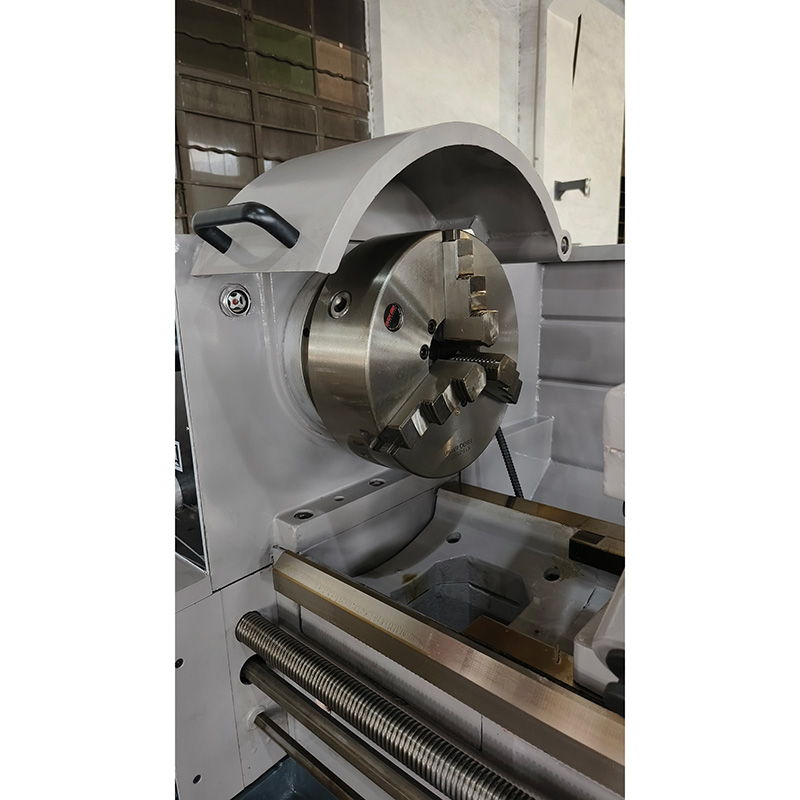

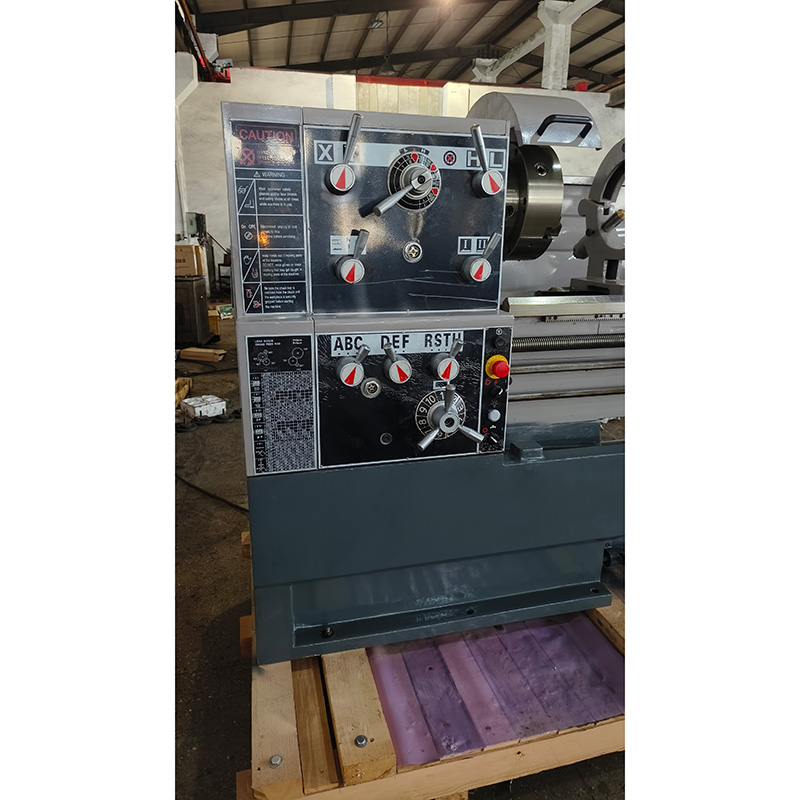

C6253 Universal Heavy Duty Manual Lathe Machine for Metal Cutting

  • C6253
  • WMT
  • 84581900
Quantity:

Product Description

C6253

Model C6253×1000 C6253×1500 C6253×2000
Swing over bed Φ530mm(20 7/8")
Swing over cross slide Φ329mm(12 31/32")
Swing in gap(D×W) 765mm×218mm(D1-8)/765mm×240mm(A1-8)
Height of center 265mm(10 7/16")
Distance between centers 1015mm/1515mm/2015mm
Width of bed 400mm(15 3/4")
Max. section of cutting tool 25mm×25mm(1"×1")
Total travel of cross slide 320mm(12 5/8")
Total travel of top slide 200mm(7 7/8")
Spindle bore Φ82mm(3 1/4")
Spindle nose D1-8 or A1-8
Spindle morse taper in nose,in sleeve ME90/M.T.#5
Spindle speeds number 12
Spindle speeds range 20-1600 R.P.M
Leadscrew diameter&thread 40mm(1 9/16")×4 T.P.I or pitch 6mm
Threads imperial pithches 4-112(50 NOS)
Threads metric pithches 0.25-7(24 NOS)
Diametral pitches DP/DP 4-112(50 NOS)
Diametral pitches MP/MP 0.25-14(34 NOS)
Longitudinal feeds(imperial/metric) 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos)
Cross feeds(imperial/metric) 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos)
Total travel of tailstock quill 180mm(7 5/64")
Tails stock quill Φ75mm(2 61/64")
Taper tailstock quill M.T.#5
Spindle drive motor 10.0HP
Coolant pump motor 1/8HP(0.1KW)
Machine dimension 94"×38"×52"/114"×38"×52"/134"×38"×52"
Packing dimension 98"×43"×71"/118"×43"×71"/138"×43"×71"
N.W 2490KG/2750KG/3010KG
G.W 2790KG/3090KG/3400KG
