C6256×1000
WMTCNC
| Quantity: | |
|---|---|
Product Description
Product Overview:

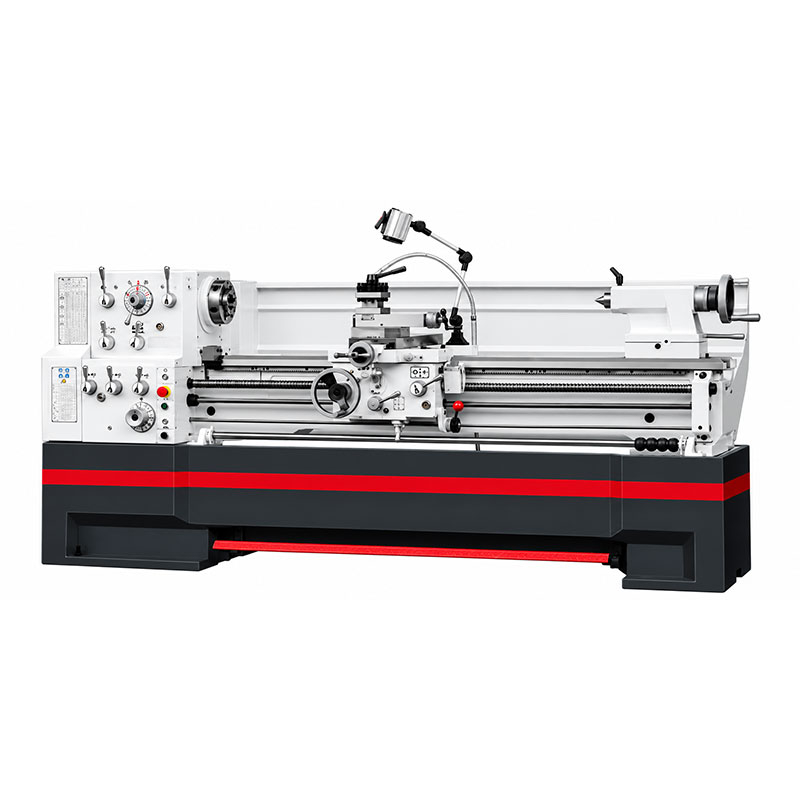

The C6256×1000 heavy duty conventional lathe machine is designed for workshops requiring strong cutting capability, stable performance, and versatile machining functions. With a 560mm swing over bed, 80mm spindle bore, and 7.5 kW main motor, this engine lathe provides reliable performance for medium and large-sized workpieces.
Equipped with a rigid cast iron bed, precision-machined guideways, and a wide range of metric, imperial, module, and diametral thread cutting options, the C6256×1000 is suitable for general machining, repair workshops, maintenance centers, and production applications.
Its 1000mm distance between centers and 785mm gap swing diameter allow operators to process larger diameter components, while the powerful spindle system with D1-8 spindle nose ensures stable turning performance under heavy cutting conditions.
| Specification | C6256×1000 |
| Carriage width | 480mm |
| Carriage length | 568mm |
| Swing over bed | 560mm(22") |
| Swing over cross slide | 355mm(14") |
| Swing in gap diameter | 785mm(30-7/8") |
| Distance between centers | 1000mm |
| Valid length of gap | 170mm (6-11/16") |
| Width of bed | 350mm (13-13/16") |
| Spindle nose | D1-8 |
| Spindle bore | 80mm (3-1/8") |
| Taper of spindle bore | MT No.7 |
| Range of spindle speed | 12 changes, 25~1500 r/min |
| Compound rest travel | 130mm (5-1/8") |
| Cross slide travel | 316mm (12-7/16") |
| Max. section of tool | 25×25mm |
| Longitudinal feeds range | 35 kinds, 0.059~1.646 mm/rev |
| Cross feeds range | 35 kinds, 0.020~0.573 mm/rev |
| Threads metric pitches | 47 kinds, 0.2~14 mm |
| Threads imperial pitches | 60 kinds 2~112 T.P.I. |
| Threads diametral pitches | 50 kinds 4~112 DP |
| Threads module pitches | 34 kinds, 0.1~7 MP（510, 560,39 kinds） |
| Quill diameter | Φ75mm (2-15/16") |
| Quill travel | 180mm (7-1/16") |
| Quill taper | MT No.5 |
| Main motor power | 7.5 kW 3PH |
| Overall Dimension (L×W×H) | 239×115×146 / cm |
| Packing size (L×W×H) | 245×114×174 cm |
| Net weight | 2195kg |
| Gross weight | 2600kg |
