C6266 High Precision Big Bore Lathe Machine Engine Lathe for Sale

C6266 High Precision Big Bore Lathe Engine Lathe Machine for Sale

Product Description

Features:

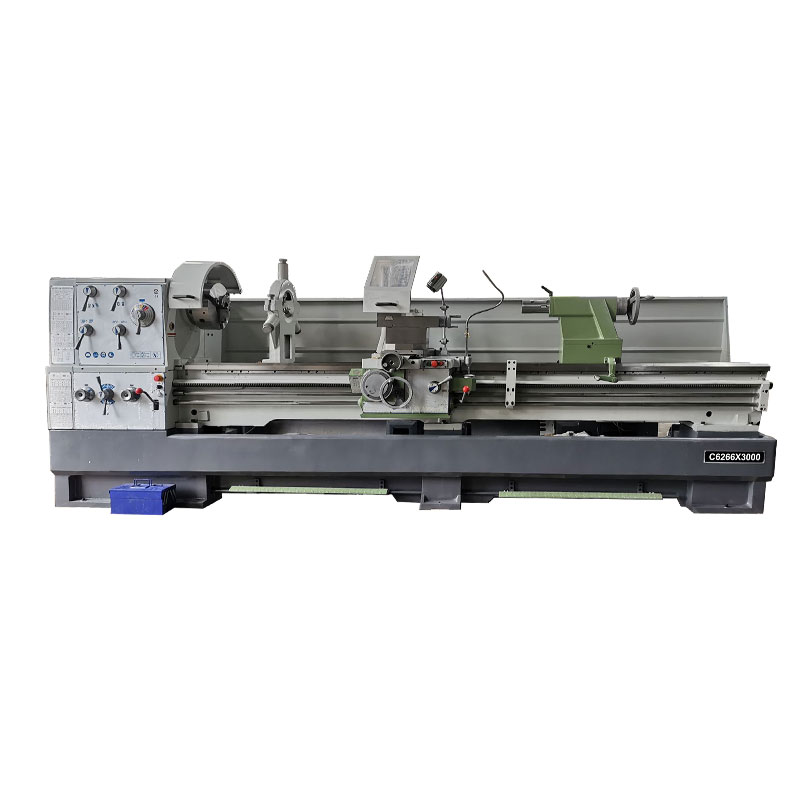

C6266主图03

Speciofication	C6266x2000	C6280x3000
Swing Over Slide	Φ660mm Φ800mm
Swing Over Cross Slide	Φ440mm	Φ570mm
Swing in Gap Diameter	Φ900mm	Φ1035mm
Length of Gap	250mm
Center Height	330mm
Distance Between Centers	1500mm/2000mm/3000mm
Width of Bed	400mm	400mm
Max. Section of Tool	25mm × 25mm
Max. Travel of Cross Slide	368mm	420mm
Max. Travel of Compound Rest	230mm	230mm
Spindle Bore	Φ105mm
Spindle Nose	D1-8
Taper of Spindle Bore	Φ113mm(1:20)/MT5
Spindle Speed Number	16
Range of Spindle Speed	25~1600rpm	25~1600rpm
Leadscrew Pitch	Φ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range	7/16~80T.P.I. (54 kinds)
Metric Threads Range	0.45~120mm (54 kinds)
Diametrical Pitches Range	7/8~160DP (42 kinds)
Module Pitches Range	0.25~60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw	0.044~1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw	0.00165"~0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw	0.022~0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw	0.00083"~0.02774"/rev (25 kinds)
Quill travel	235mm
Quill diameter	Φ90mm
Quill taper	MT5
Main motor power	7.5kW(10HP)
Coolant pump power	0.09kW (1/8HP)
Overall Dimension (L×W×H)	321x123x160cm(1500mm)	321x123x167cm(1500mm)
Packing Size (L×W×H)	371x123x160cm(2000mm)	371x123x167cm(2000mm)
	471x123x160cm(3000mm)	471x123x167cm(3000mm)
	324x114x184cm(1500mm)	324x114x191cm(1500mm)
	374x114x184cm(2000mm)	374x114x191cm(2000mm)
	474x114x184cm(3000mm)	474x114x191cm(3000mm)
Net Weight	3060/3345/3710kg	3220/3505/3870kg
Gross Weight	3535/3835/4310kg	3705/4005/4480kg
