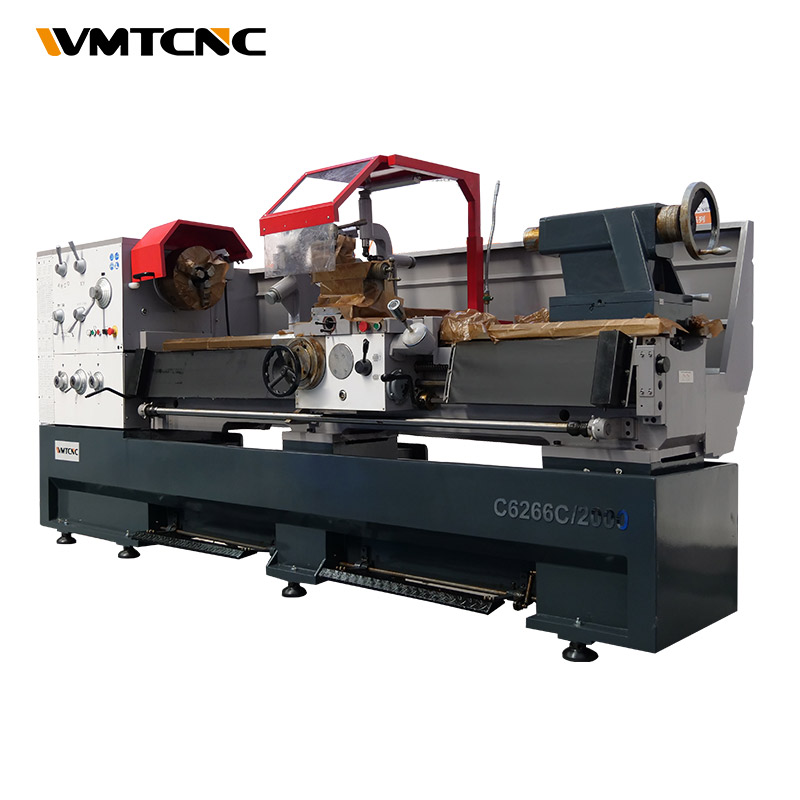

C6266Cx2000
WMTCNC
84581900
| Quantity: | |
|---|---|
Product Description
Main Features:
The bed rails are quenched and precision ground.
The spindle is supported with precision roller bearings.

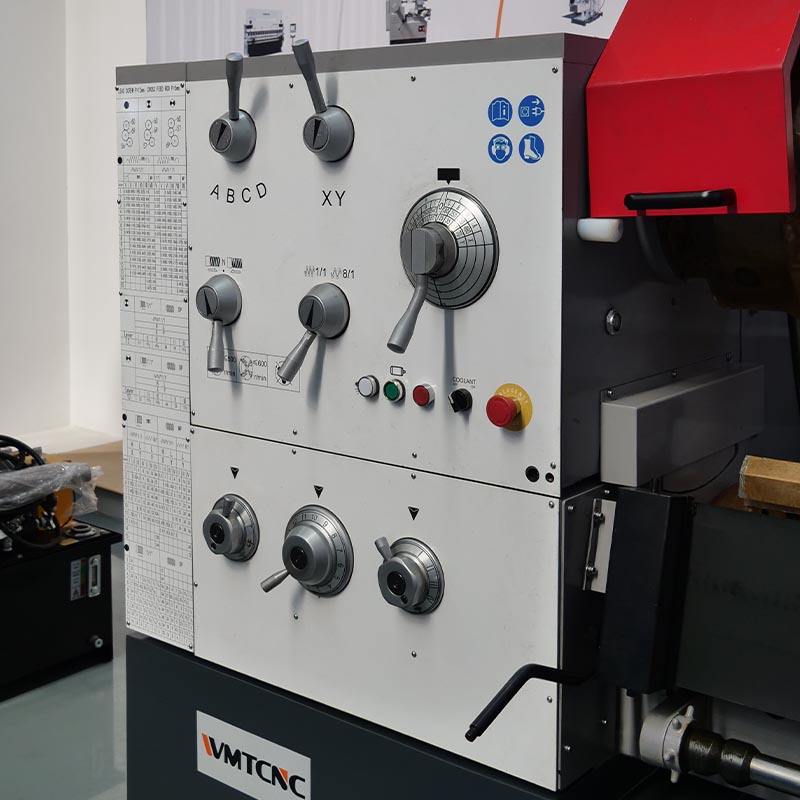

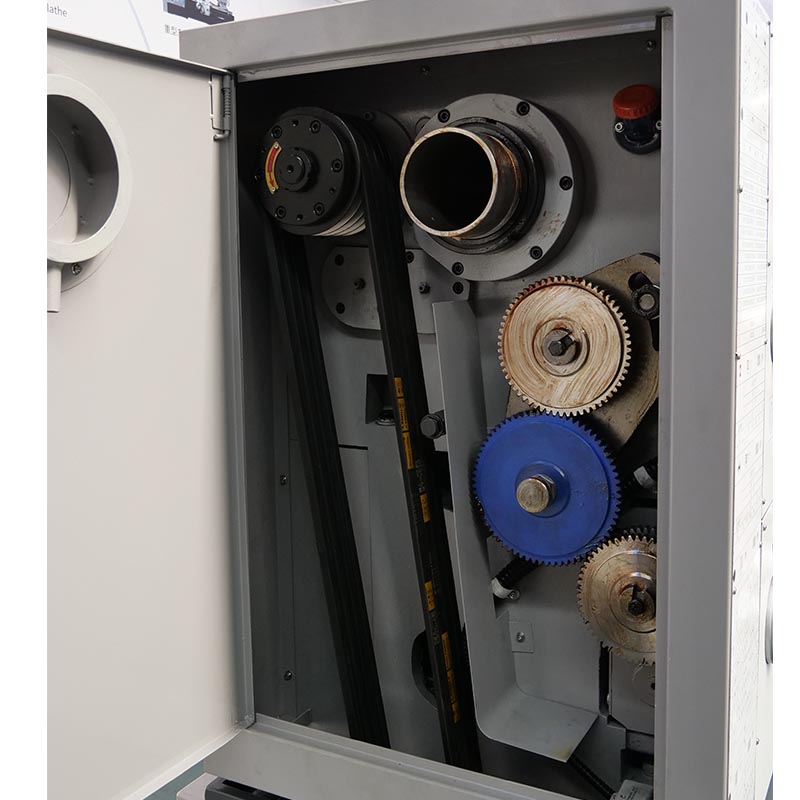

Head stock gears are made of high quality steel ground and hardened.
Monoblock cast iron base ensures high rigidity of the whole machine.
| Specification | C6266C |
| Max. swing over bed | φ660mm |
| Max. swing over cross slide | φ440mm |
| Max. swing in gap | φ896mm |
| Distance between centers | 1500/2000/3000/4000mm |
| Effective length of gap | 200mm |
| Width of bed | 400mm |
| Spindle nose | D1-8 |
| Spindle bore | φ105mm |
| Spindle taper | φ113(1:20) |
| Range of spindle speed | 16 steps,25-1600r/min |
| Max. travel of top slide | 130mm |
| Max. travel of cross slide | 400mm |
| Max. section of tool | 25×25mm |
| Leadscrew pitch | φ40mm×2T.P.I. or φ40mm×12mm |
| Longitudinal feeds range | 0.063-2.525mm/rev (69 kinds) |
| Cross feeds range | 0.022-0.878mm/rev (66 kinds) |
| Metric threads range | 1-144mm (50 kinds) |
| Inch threads range | 1/4-36T.P.I. (56 kinds) |
| Diametrical pitches range | 1/2-72D.P. (56 kinds) |
| Module pitches range | 0.5-72M.P. (50 kinds) |
| Tailstock quill diameter | 90mm |
| Tailstock quill travel | 235mm |
| Tailstock quill taper | MT5 |
| Main motor power | 7.5kw |
| Coolant pump motor | 120w |
| Overall size | 3300/3800/4800/5800x1100x1970mm |
| Packing size | 3350/3850/4850/5850×1150×2020mm |
| N.W | 3250/3550/4050/4750kg |
| G.W | 3500/3800/4300/5000kg |
