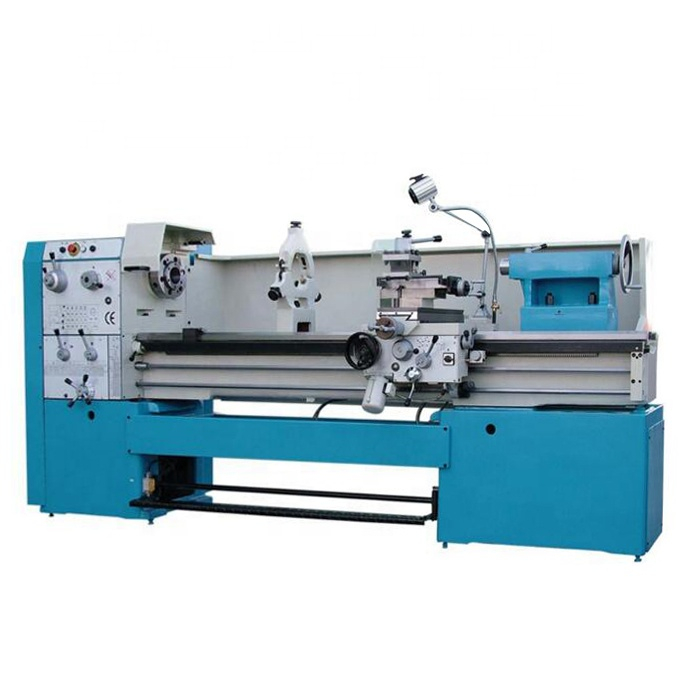

CD6240C
WMTCNC
84581900
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The bed rails are quenched and precision ground.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
4. Monoblock cast iron base ensures high rigidity of the whole machine.
| Specification | CD6240B/C |
| Max.swing over bed | Φ400mm |
| Max.swing over cross slide | Φ225mm |
| Max.swing over gap | Φ550mm |
| Effective length of gap | 260mm |
| Center Distance | 1000mm/1500mm/2000mm/3000mm |
| Bed Width | 330mm |
| Spindle hole | B:Φ65mm,C: Φ80mm |
| Spindle nose | B:ISO-D6,C:ISO-D8 |
| Spindle speed(Number) | B:20-1800rpm(15steps) C:/24-1600rpm(15steps) |
| Longitudinal feeds range | 66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev) |
| Cross feeds range | 66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev) |
| Metric threads range | 66kinds 0.5-28 |
| Inch threads range | 66kinds 1-56inch |
| Module threads range | 33kinds 0.5-3.5mπ |
| Diametric threads range | 33kinds 8-56D.P |
| Max.travel of top slide | 130mm |
| Max.travel of cross slide | 300mm |
| Max.size of tool shank | 20×20mm/25×25mm |
| Dia.of tailstock sleeve | Φ65mm |
| Taper of tailstock sleeve | MT5 |
| Max.travel of tailstock | 120mm |
| Main drive motor | 5.5kw or 7.5kw |
| Rapid traverse motor | 250w |
| Coolant pump motor | 125w |
| Packing size | 1000mm:2420mm×1150mm×1800mm 1500mm:2920mm×1150mm×1800mm 2000mm:3460mm×1150mm×1800mm 3000mm:4720mm×1150mm×1800mm |
| N.W/G.W | 1000mm:1560/2210kgs 1600/2250kgs 1640/2290kgs |
| 1500mm:1770/2410kgs 1830/2470kgs 1870/2530kgs | |
| 2000mm:2010/2780kgs 2070/2820kgs 2130/2860kgs |
