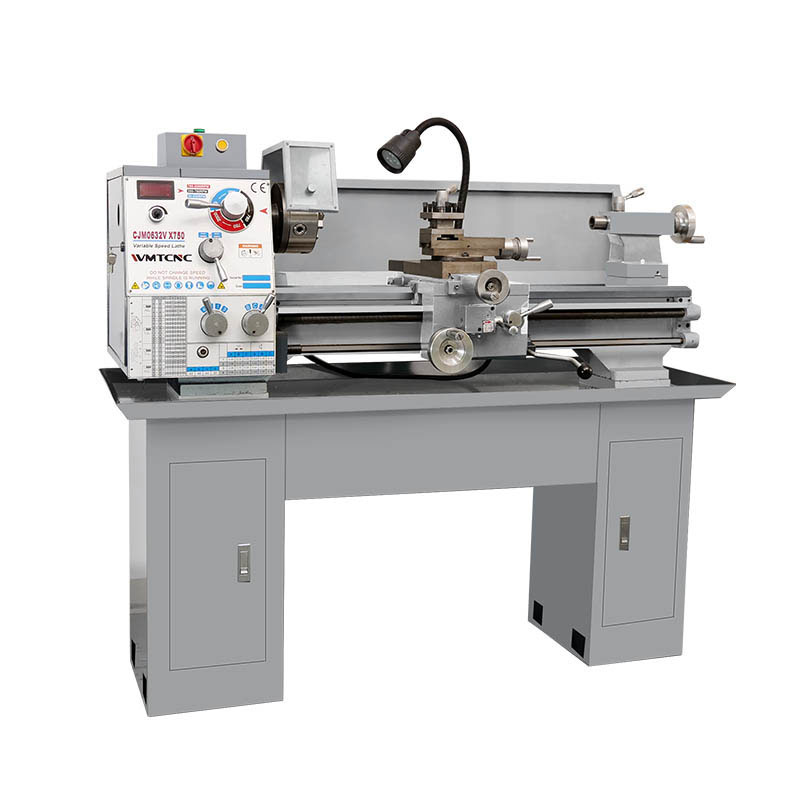

CJM0632V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.
| Specification | CJM0632V |
| Max Swing diameter on the bed | 320 mm |
| The distance between center | 500/750mm |
| Max swing over cross slide | 180 mm |
| Spindle bore | 38 mm |
| Spindle taper | MT.5# |
| Max longitudinal travel over toolpost | 160 mm |
| Max cross slide travel over toolpost | 75 mm |
| Metric thread kinds | 18 |
| Metric thread range | 0.20~3.5 mm |
| Inch thread kinds | 34 |
| Inch thread range | 41/2～48 1/n″ |
| Moudle thread kinds | 16 |
| Moudle thread range | 0.20~1.75 π |
| Pitch thread kinds | 24 |
| Pitch thread range | 16～120 π/DP″ |
| Longitudinal feed range | 0.08~0.56 mm/r |
| Cross-feed range | 0.04~0.28 mm/r |
| Max tailstock quill travel | 60 mm |
| Tailstock quill taper | MT.3# |
| Spindle speed kinds | 3 Kinds+Variable speed in one kind |
| Spidnle speed range | 30~2000 r/mim |
| Main motor | 750W 380V 50HZ (or 220V 50HZ) |
| New weight(without stand) | 300kg |
| Gross weight(without stand) | 350kg |
