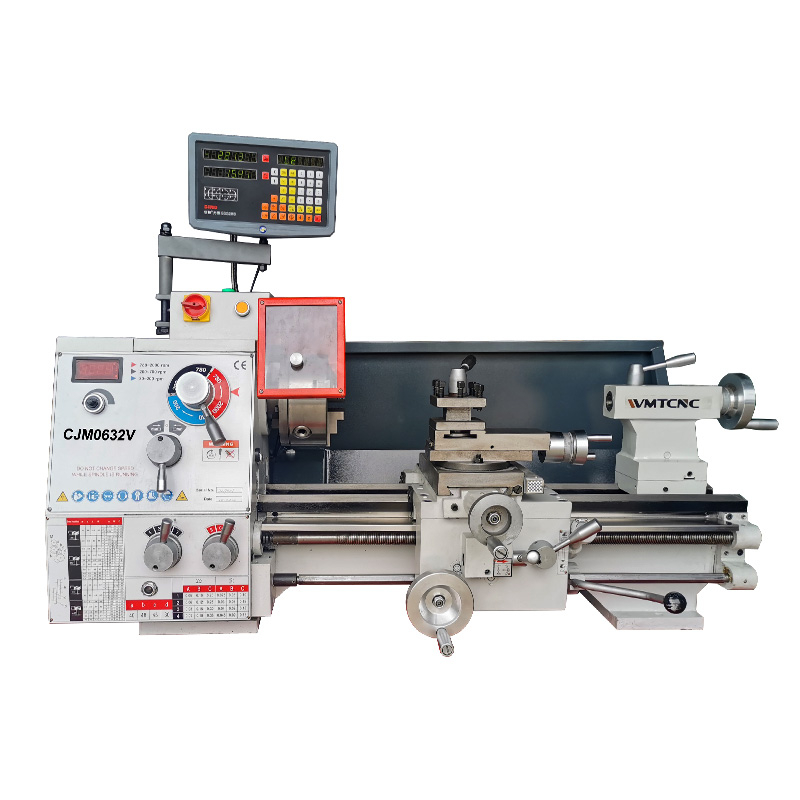

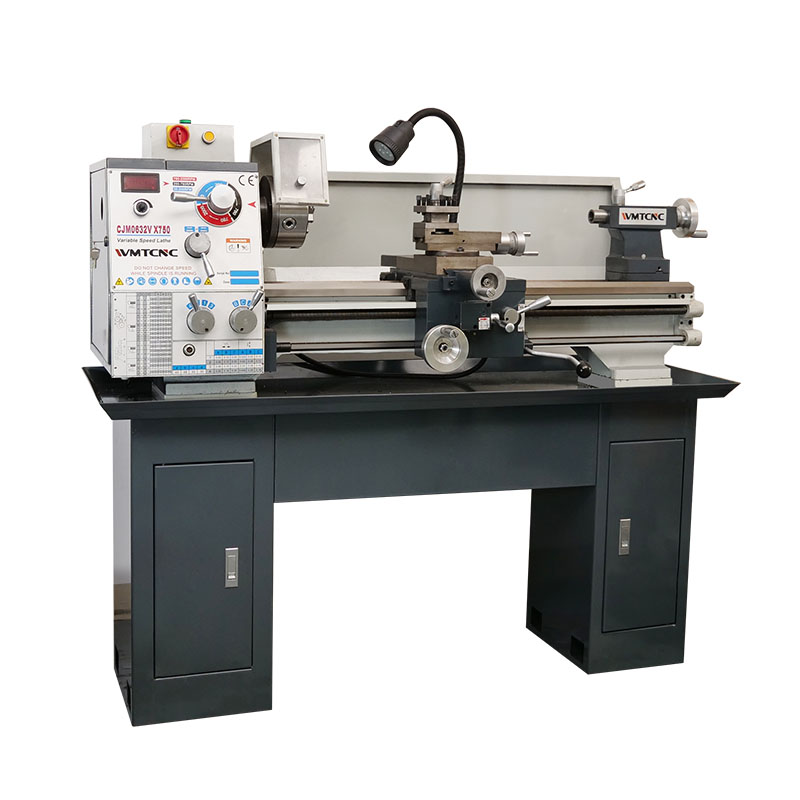

CJM0632V Small Lathe Machine with Variable Speed

  • CJM0632V
  • WMT
Availability:
Quantity:

Product Description

Features:

An economical and practical processing lathe that not only has the relatively complete functions of ordinary lathes, but also has the characteristics of lightness and flexibility of light bench lathes, compact and reasonable structure, simple and flexible operation, excellent cutting rigidity, complete basic functions, and quick installation and maintenance.

LKL160G-主图01

Model
CJM0632V
 Max Swing diameter on the bed
320 mm
 the distance between center
500/750mm
 Max swing over cross slide
180 mm
spindle bore
38 mm
 spindle taper
MT.5#
Max longitudinal travel over toolpost
160 mm
Max cross slide travel over toolpost
75 mm
Metric thread kinds
18
 Metric thread range
0.20~3.5 mm
Inch thread kinds
34
 Inch thread range
41/2~48 1/n″
 Moudle thread kinds
16
 Moudle thread range
0.20~1.75 π
Pitch thread kinds
24
Pitch thread range
16~120 π/DP″
Longitudinal feed range
0.08~0.56 mm/r
Cross-feed range
0.04~0.28 mm/r
Max tailstock quill travel
60 mm
Tailstock quill taper
MT.3#
 Spindle speed kinds
3 Kinds+Variable speed in one kind
Spidnle speed range
30~2000 r/mim
Main motor
750W 380V 50HZ (or 220V 50HZ)
New weight(without stand)
300㎏
Gross weight(without stand)
350㎏
