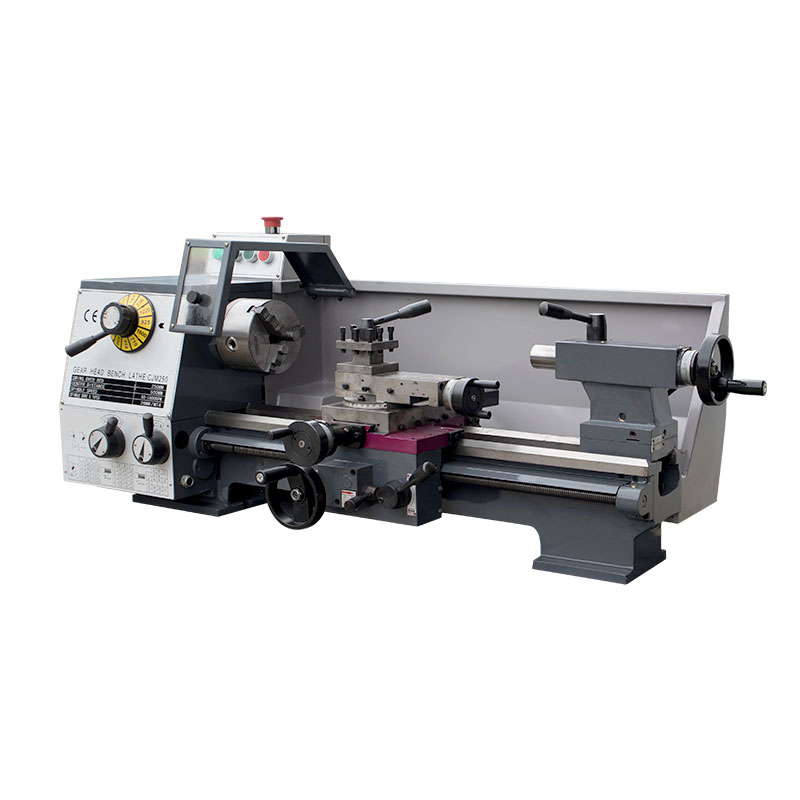

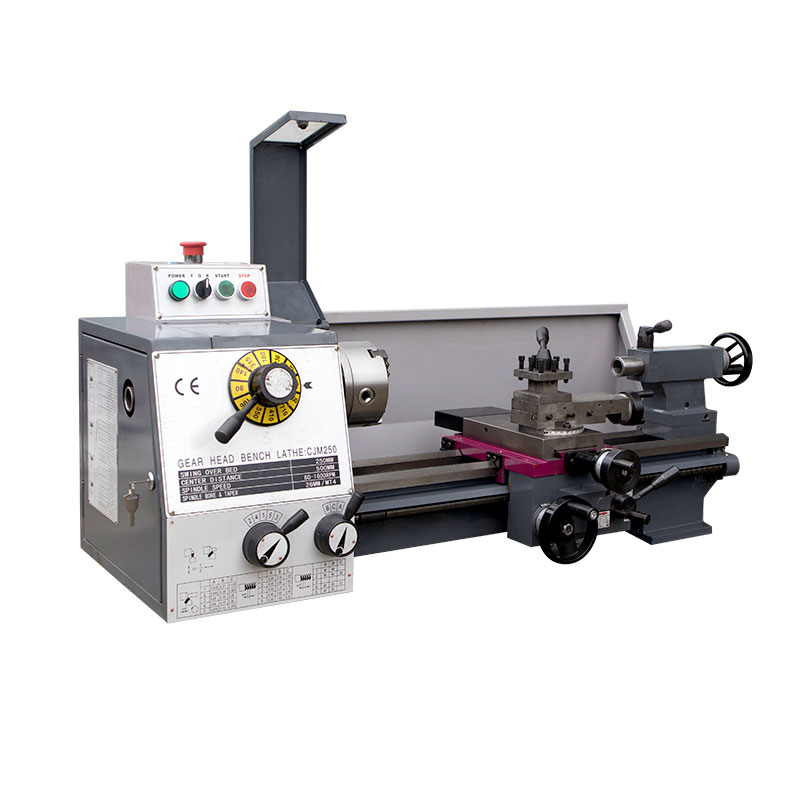

CJM250 10x20 Inch Precision Mini Metal Lathe

  • CJM250
  • WMT
Quantity:

Product Description

CJM250

Specification CJM250
Max. swing over  the bed 250mm
Max. length of work piece 500mm
Max. swing over cross slide 150mm
Spindle bore 26mm
Spindle taper MT4
Max. cross slide travel 130mm
Max. longitudinal stroke over tool post:  60mm
Metric thread kinds 9
Metric pitches  0.25-2.5mm
Inch threads kinds 15
Inch pitches 12-96TPI
Longitudinal-feed range  0.025-0.250mm/r
Cross-feedrange 0.0125-0.125mm/r
Max. travel of tailstock taper 60mm
Tailstock sleeve taper:  MT3
Spindle speeds range 12 steps: 80-2000r/min
Motor 750W
Net weight (without base) 180/200kg
Packing size (without stands): (L×W×H)  1160*640*580mm




Features:

1) Threading without change gear, easy working.

2) Bed surface hardened, high quality.

3) High quality, precision, apply for small workshop and development.

4) Longitudinal and Horizontal auto Feed for threading.


Standard Accessories:

1) 3-jaw chuck

2) V-belt

3) Dead centers

4) Splash guard

5) Toolbox with tools
