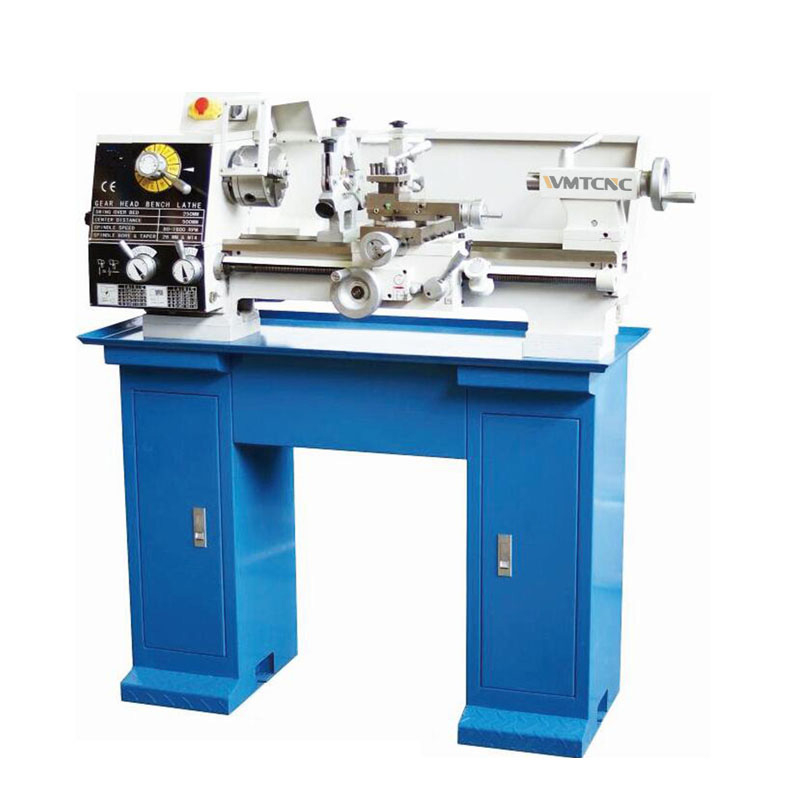

CJM250
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.
| Specifications | CJM250 |
| Maximum Swivel Over Bed | 250mm |
| Maximum Workpiece Length | 500/700mm |
| Maximum Swivel Over Cross Slide | 150mm |
| Maximum Cross Slide Stroke | 140mm |
| Maximum Longitudinal Stroke Over Toolholder | 70mm |
| Spindle Bore | 26mm |
| Spindle Taper | MT4 |
| Spindle Speed Range | 12 steps: 80–1600 r/min |
| Metric Thread Types | 18 |
| Metric Pitch Range | 0.25–5.0mm |
| Inch Thread Type Range | 36 |
| Inch Pitch Range | 4–96 T.P.I |
| Modular Thread Types | 24 |
| Modular Thread Range | 9–96 D.P |
| Longitudinal Feed Range | 0.035–0.375 mm/r |
| Cross Feed Range | 0.0175–0.188 mm/r |

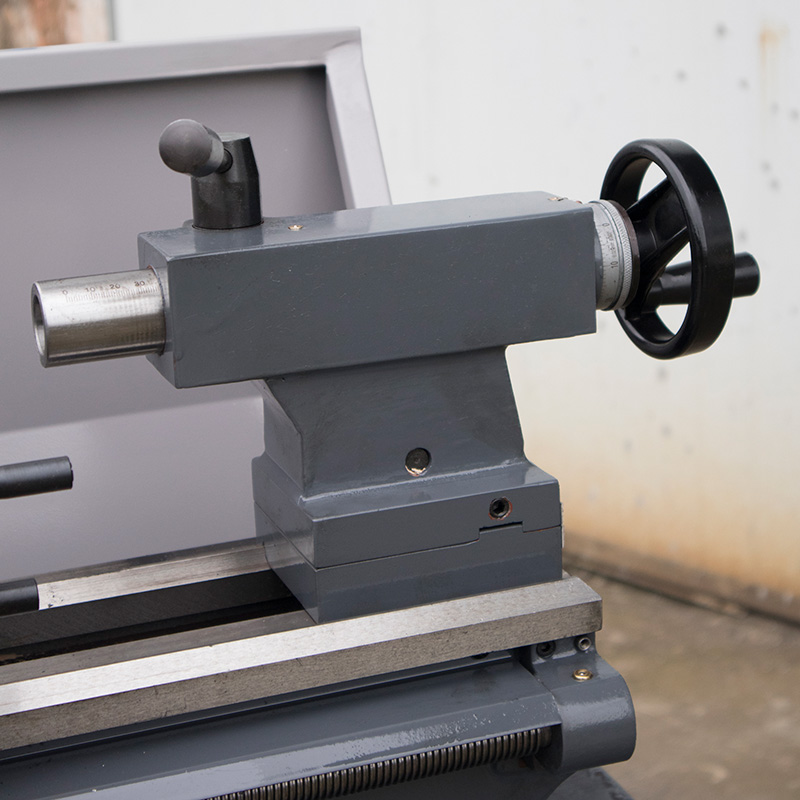

| Tailstock Travel | 75mm |
| Tailstock Taper | MT3 |
| Motor Power | 750w |
| Net Weight/Gross Weight (excluding supports) | 160/180kgs, 185/208kgs |
| Overall Dimensions (L×W×H) | 1070×570×500mm, 1270×570×500mm |
| Packaging Dimensions (excluding supports): (L×W×H) | 1200×610×670mm, 1400×610×670mm |
