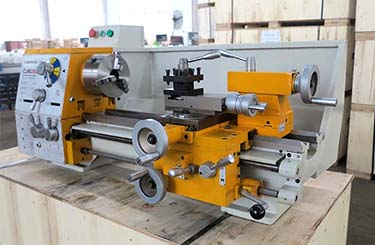

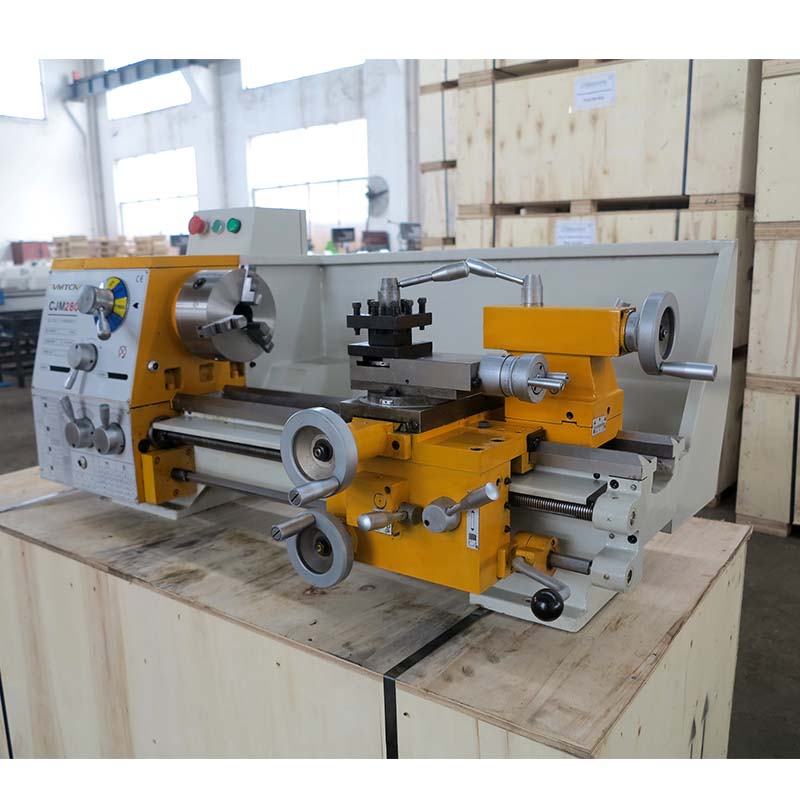

CJM280 High Quality Bench Lathe Machine Mini Bench Lathe for Metal

CJM280 Bench Lathe Machine Benchtop Metal Lathe for Sale
  • CJM280

  • WMTCNC

Availability:
Quantity:

Product Description

Main Features:

1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.

CJM280-1

Specifiction CJM280
Max. swing over bed 280mm
Max. length of workpiece 500/750mm
Max. swing over cross slide 165mm
Max. cross slide travel 185mm
Max. longitudinal travel over tool post 75mm
Spindle bore 38mm
Taper of hole in spindle MT5
Spindle speed range 8step:90-1800r/min
Mertric thread kinds 18
Mertric pitches range 0.2-3.5mm
Inch thread kinds 34
Inch pitches range 4 1/2-48T.P.I
Module threads kinds 24
Module threads range 16-120D.P
Longitudinal feed range 0.05-0.35mm/r
Cross feed range 0.025-0.18mm/r
Tailstock quill travel 75mm
Tailstock quill taper MT3
Motor power 750w
N.W/G. W 260/300kg,270/320kg
Overall dimensions(LxWxH) 1170x650x650mm,1420x650x650mm
Packing size(without stands): (LxWxH) 1310x770x750mm,1530x770x750mm
