CJM280
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.

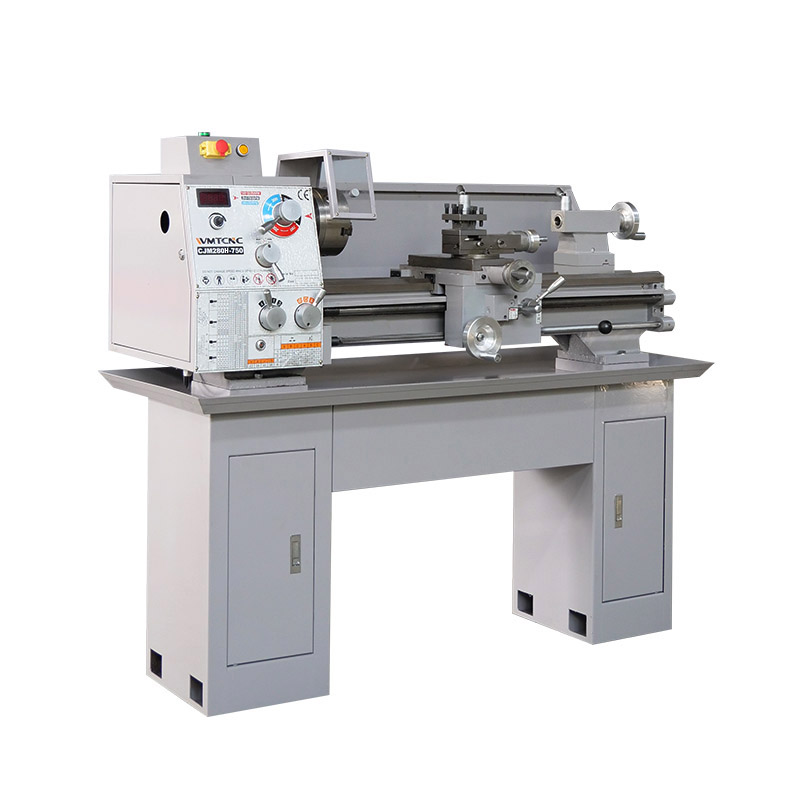

| Model | CJM280H-750 | |
| Max. swing over the bed | 280 mm | |
| Max. length of work piece | 750mm | |
| Max. swing over cross slide | 165 mm | |
| Max. cross slide travel | 185mm | |
| Max. longitudinal travel over tool post | 75mm | |
| Spindle bore | 38 mm | |
| Spindle taper | MT.5# | |
| Spindle speed range | 30-2000r/min | |
| Metric thread kinds | 18 | |
| Metric pitches range | 0.2-3.5 mm | |
| Inch thread kinds range | 34 | |
| Inch pitches range | 4 1/2-48T.P.I | |
| Module threads kinds | 24 | |
| Module threads range | 16-120D.P | |
| Longitudinal feed range | 0.05-0.35 mm/r | |
| Cross feed range | 0.025-0.18 mm/r | |

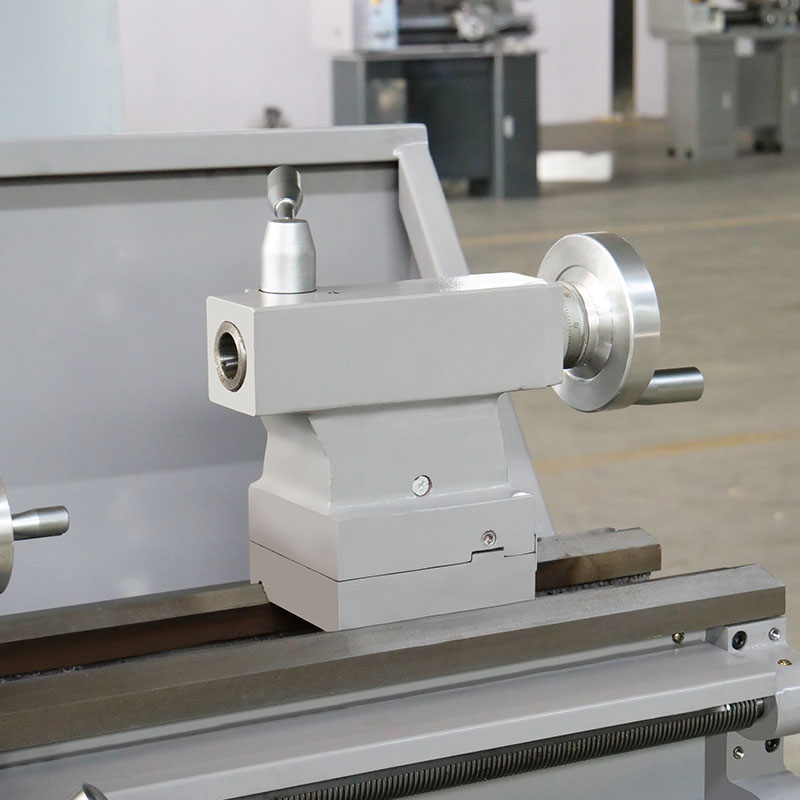

| Tailstock quill travel | 75 mm | |
| Tailstock quill taper | MT.3# | |
| Motor power | 750w | |
| N.W/G.W(without stands) | 270/320kgs | |
| Overall dimensions(L*W*H) | 1420×650×650mm | |
| Packing size(without stands):(L×W×H) | 1530×770×750mm | |
