CK0640
WMT
8459310000
| Quantity: | |
|---|---|
Product Description

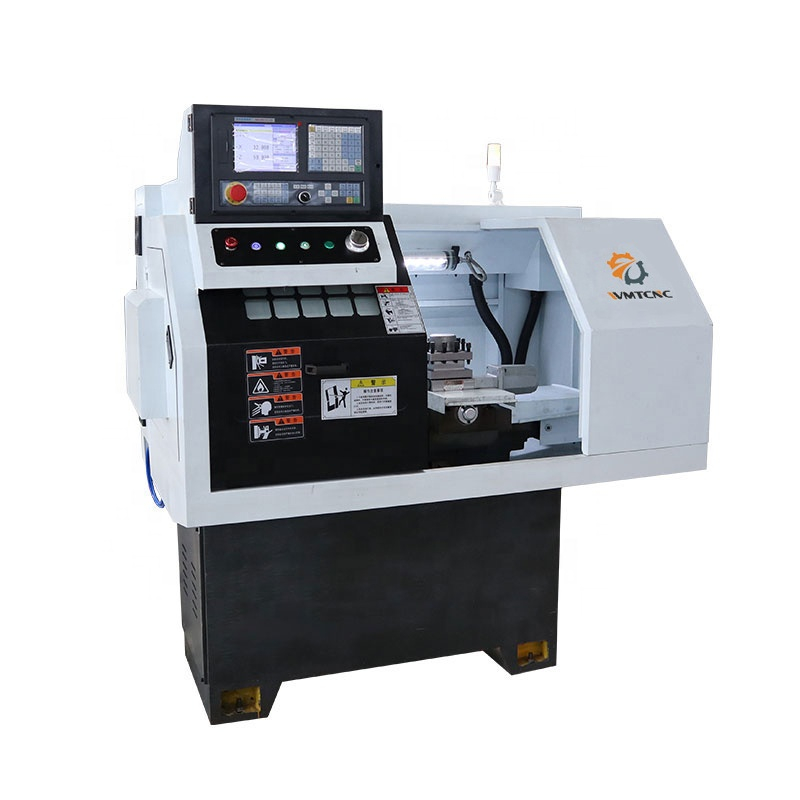

CK0640 High precision Mini CNC Lathe
CK0640 can be permanently memory coordinates after power offer,you do not need worry if people moved the position,;it can continuely Processing half of the workpiece
Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and cost
High precision,CK0640 use Absolute servo encoder is 17 bits
It is suitbale for Mass production for small workpiece, High efficiency, high precision
| Specification | CK0640 |
| Max.swing over bed | 260mm |
| Diameter of X axis ballscrew | 25mm |
| Thread pitch of X axis ballscrew | 4mm |
| Diameter of Z axis ballscrew | 32mm |
| Thread pitch of Z axis ballscrew | 6mm |
| X-axis travel | 250mm |
| Z-axis travel | 180mm |
| Max speed | 2200rpm |
| Pneumatic component | Taiwan AIRTAC |
| chuck | Pneumatic chuck 32mm |
| toolpost | 4 position Electrical toolpost |
| Main Motor | 3KW |
| Spindle converter | VEICHI |
| Motor for Coolant pump | 90W |
| Spindle bore | 49mm |
| Spindle hole after install pneumatic | 41.5mm |
| Re-positioning accuracy | 0.01mm |
| positioning accuracy | 0.01mm |
| Servo motor torque | 4.0NM |
| Servo motor type | Servo motor |
| CNC controller system | after 980MDC |
| Button switch | Led Metal switch |
| Machine size | 1760*1070*1730 |
| N.W/G.W | 700KGS/800KGS |
