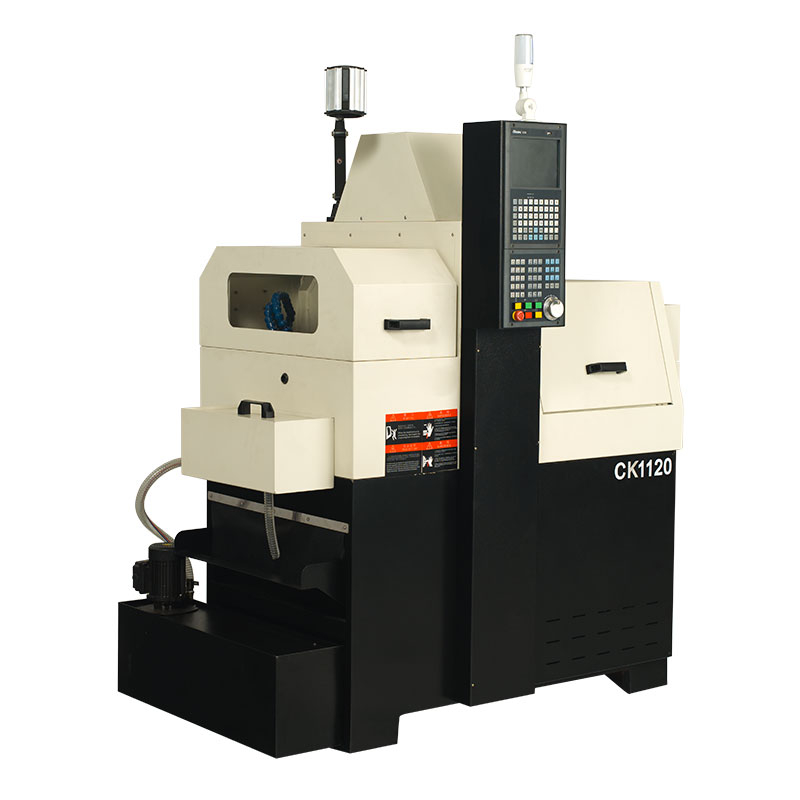

CK1120 Swiss Type CNC Lathe Machine with High Accuracy

  • CK1120

  • WMT

  • 8459310000

Availability:
Quantity:
Inquire Add to Basket

Product Description

Features:

  • The number of tools is large, and the tool exchange is fast.
  • The powerhead meets the needs of turning and milling compound processing.
  • The unique design without a guide sleeve can completely solve the problem of the long tail.

CK1120走心式数控车床01

Reted Voltage
380V /3 phase AC Current
Gang Tool
12 Nos.
Reted Frequency
50HZ
Turning Tool
9 Nos.
Total Input Power
4.75kw
Tool Size
12*12mm
Model (special customerized)
YZ150
Obverse Side Drilling
3 Nos.
Min Setting Value
0.001mm
Drilling Spindle Size
ER11/20mm
X Axis PulseEquivalent
0.0005mm
Cuting MotorPower
0.09kw
Y Axis Pulse Equivalent
0.001mm
Capacity of CoolingContairer
150L
Z Axis Pulse Equivalent
0.001mm
Motor Power
25w
Max Programming size
±9999.999
Capacity
1.5L
Cutting Speed
1--4000mm/min
Input Pressure of Compressed Air
0.4--0.6Mpa
X Axis Fast Feed Rate
18000mm/min
X Axis Stroke
80mm（dia.）
Y Axis Fast Feed Rate
18000mm/min
Y Axis Stroke
150mm
Z Axis Fast Feed Rate
18000mm/min
Z Axis Stroke
250mm
Max. Bar Dia.
Φ20mm
X Axis Servo Motor Power
0.75kw
Spindle Hole Dia.
Φ21mm
Y Axis Servo Motor Power
0.75kw
The height of spindle center from ground
980mm
Z Axis Servo Motor Power
0.75kw
spindle speed
0-4000r/min
Slide guide mode
linear guide
Spindle power
2kw
L*W*H(mm)
1495*1010*1860mm
1220kgs
