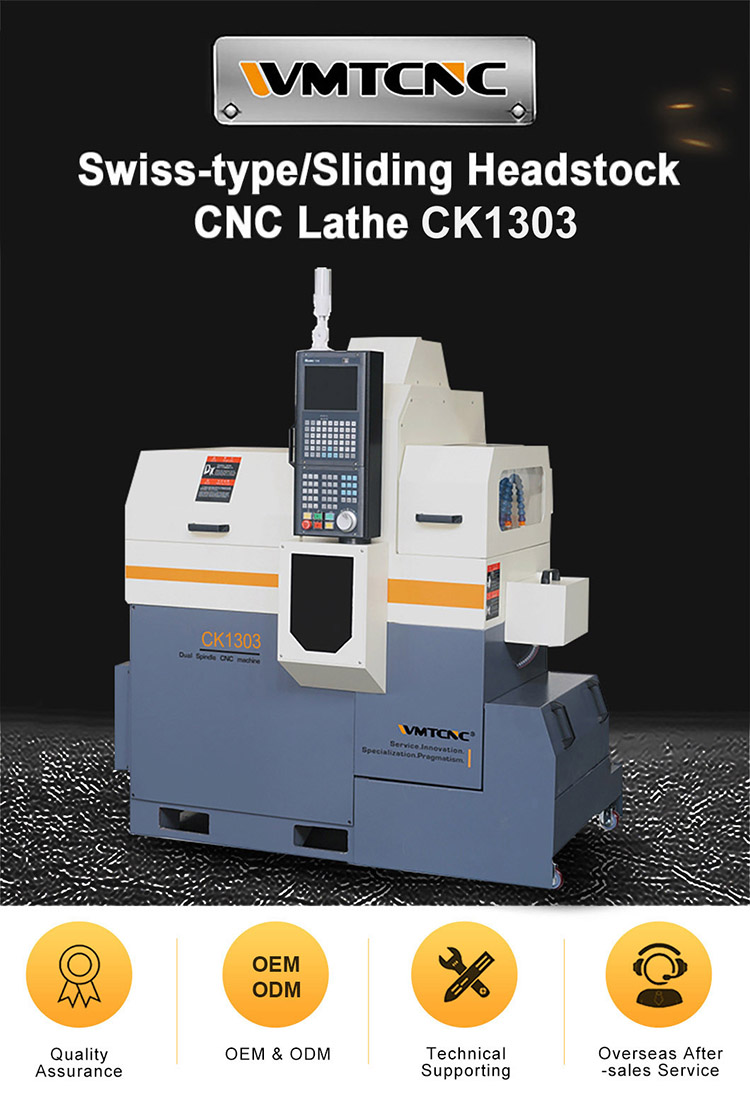

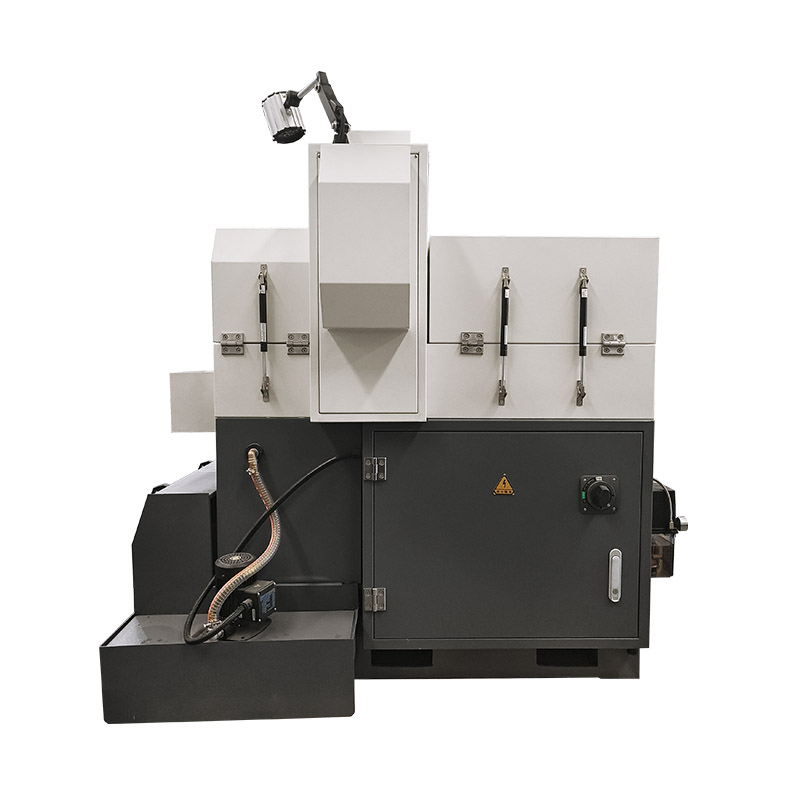

CK1303
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The number of tools is muitiple and the tool exchange is fast. It can process all kinds of super slender parts.
| Specification | CK1303 |
| Capacity | |
| Max. Bar Dia. | Φ13mm |
| Max length of workpiece | 150mm |
| Slide guide mode | Linear Guide Rail |
| Spindle | |
| Spindlle bore | Φ14mm |
| Drilling Spindle Size | ER11/16mm |
| CNC controller model | YZ180 |
| Spindle speed | 0-5000r/min |
| The height of spindle center from ground | 980mm |
| Axis | |
| X axis travel | 60mm |
| Y axis travel | 200mm |
| Z axis travel | 180mm |
| X/Y/Z Axis Fast Feed Rate | 24m/min |
| Cutting speed | 1-4000mm/min |

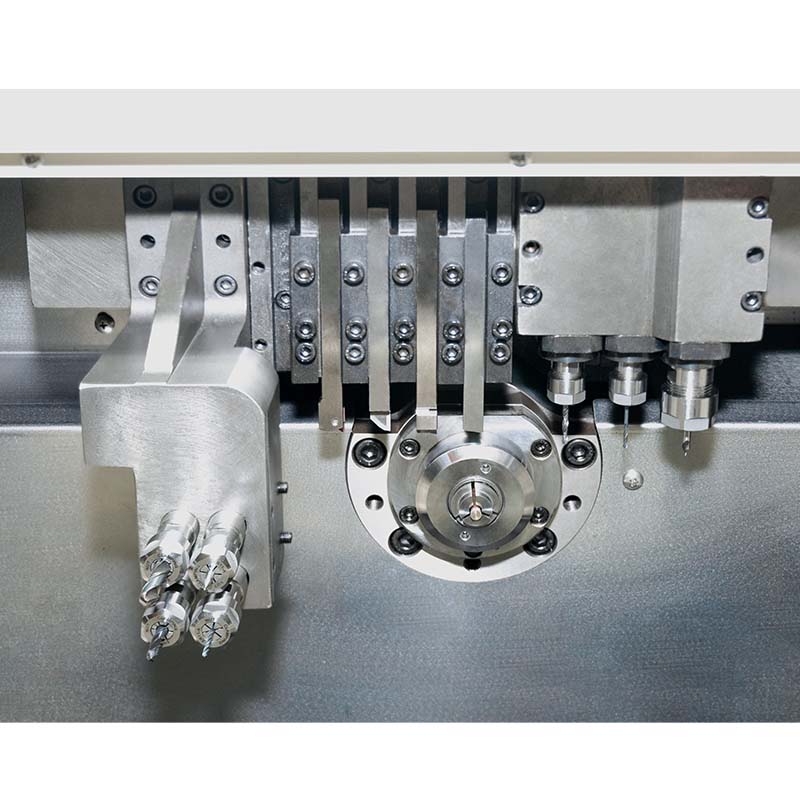

| Tool post | |
| Gang tool | 10 Nos. |
| Front drilling | 4 Nos. |
| Turning tool | 6 Nos. |
| Tool size | 10x10mm |
| Motor | |
| Min. setting unit | 0.001mm |
| X Axis Pulse Equivalent | 0.0005mm |
| Y Axis Pulse Equivalent | 0.001mm |
| Z Axis Pulse Equivalent | 0.001mm |
| Max. Programming size | ±9999.999 |
| Input Pressure of Compressed Air | 0.4--0.6Mpa |
| Spindle power | 2kw |
| X/Y/Z Axis Servo Motor Power | 0.75/0.75/0.75kw |
| Cutting motor power | 0.18kw |
| Total input power | 4kw |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 1530x1150x1790mm |
| Weight | 800kg |
