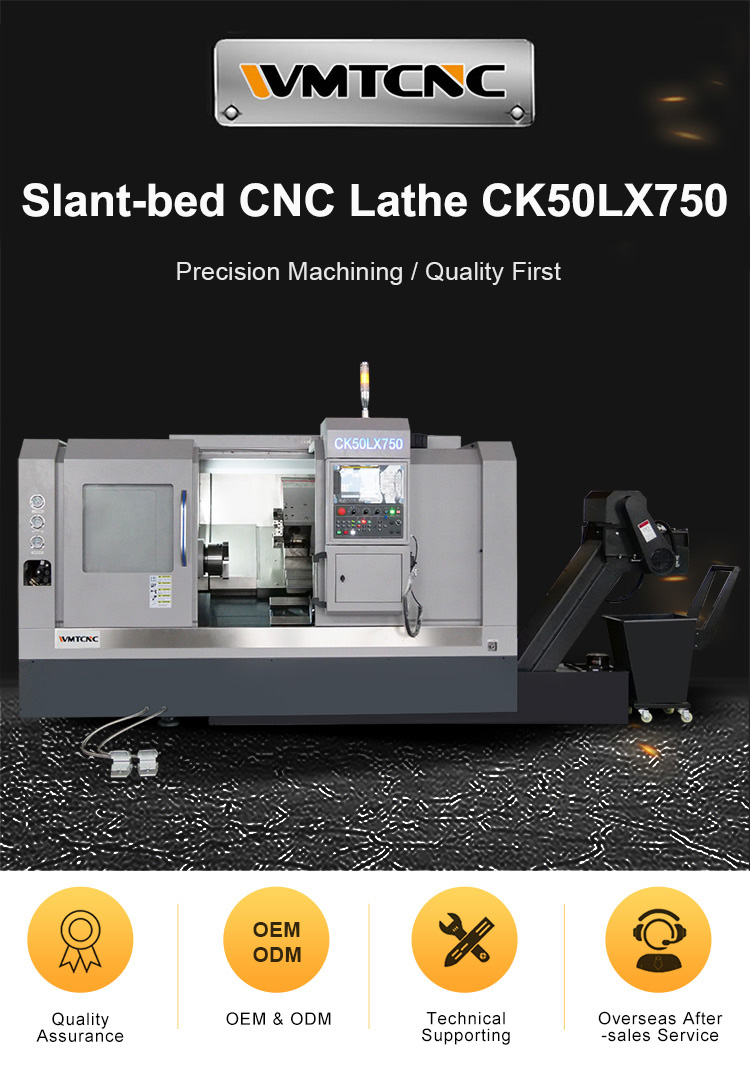

CK50LX750
WMTCNC
8459310000
| Quantity: | |
|---|---|
Product Description
Features:
High precision slant CNC lathe with Taiwan screw & linear guideway.
High precision cartridge type spindle ensure the rigidity and precision.
Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
Siemens, Fanus, Syntec, Fagor controller as optional.
Monoblock cast iron of the whole machine ensure high rigidity
| Specification | CK50L |
| Capacity | |
| Max. swing dia. over bed | φ500mm |
| Max. length of workpiece | 750mm |
| Max. swing dia. over slide | φ250mm |
| Spindle | |
| Spindle speed range | 4000rpm,*3000rpm |
| Spindle bore | φ66mm,*φ86mm |
| Max. dia. of through-hole | φ50mm,*φ70mm |
| Spindle nose | A2-6,*A2-8 |

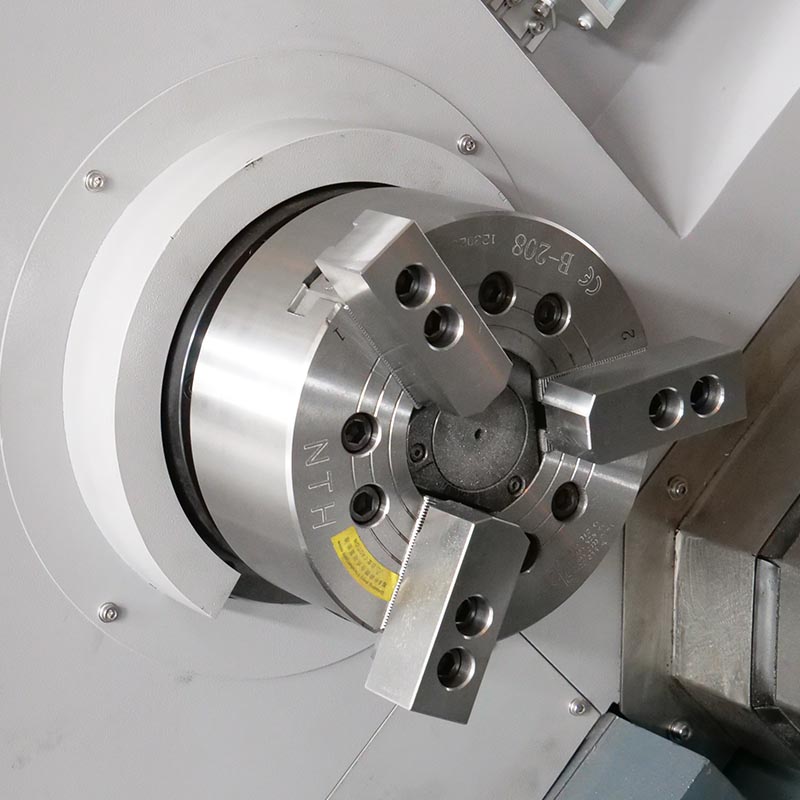

| Chuck size | φ200mm,*φ250mm |
| Axis | |
| Type of guideway & screw | Taiwan linear guideway & screw |
| X axis travel | 280mm |
| Z axis travel | 750mm |
| X/Z axis rapid traverse | 15/15 m/min |

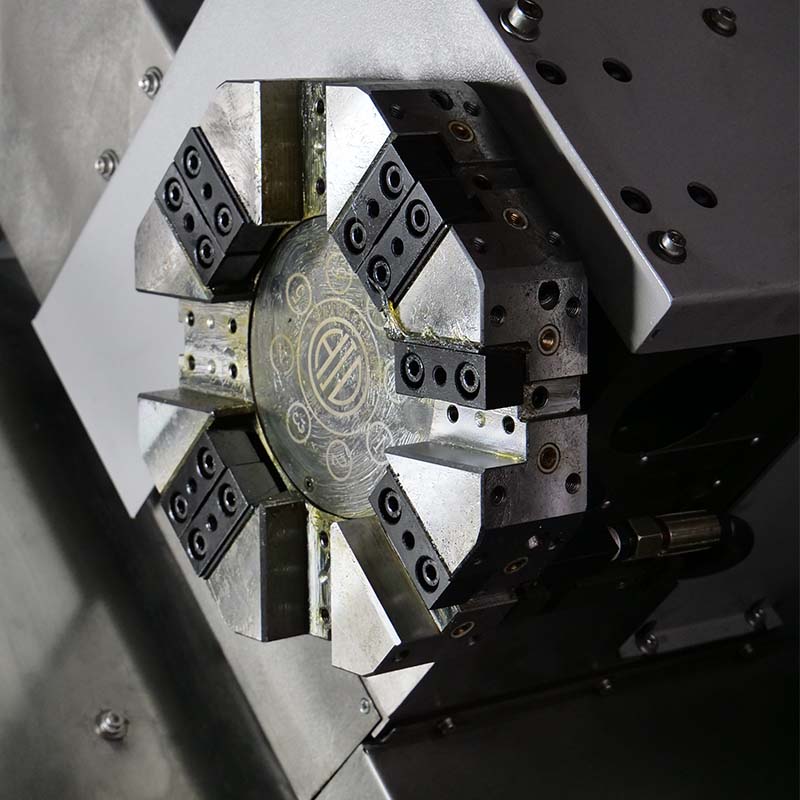

| Turret | |
| Type | Electric turret,*Hydraulic turret,*Power turret |
| No. of tool stations | 8,*12 position |
| Tool shank size | 25x25,*20x20mm |

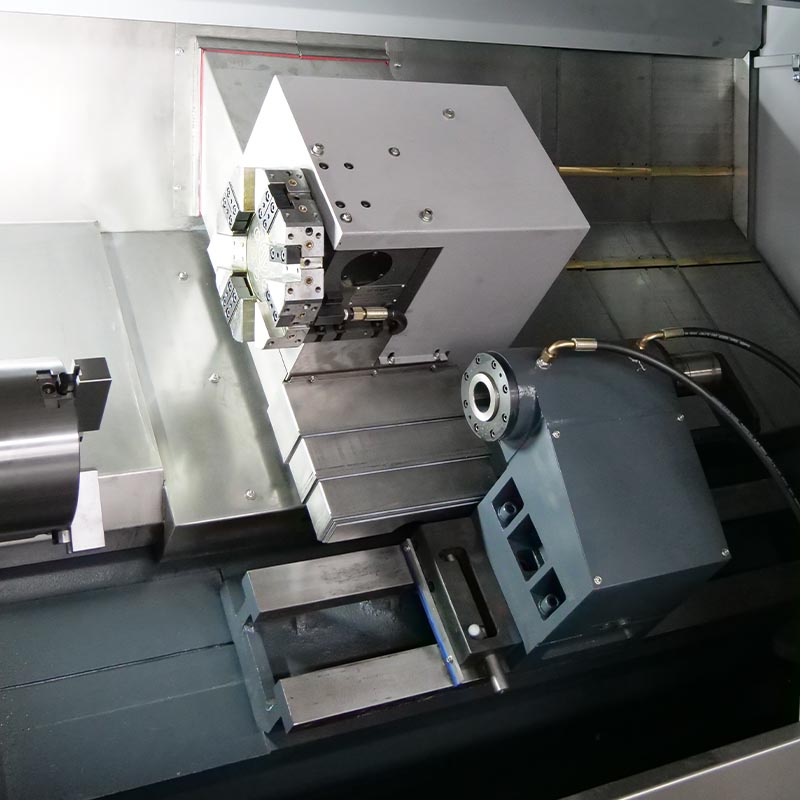

| Tailstock | |
| Type of tailstock | Hydraulic sleeves |
| External diameter | φ90mm |
| Travel of tailstock quill | 120mm |
| Taper of tailstock quill | MT5 |
| Motor | |
| Spindle motor power | 7.5kw,*11kw |
| Coolant pump power | 370w |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 2950x1780x1850mm |
| Packing size(L×W×H) | 3300x2270x2280mm |
| Net/Gross weight | 4200/4500kg |
