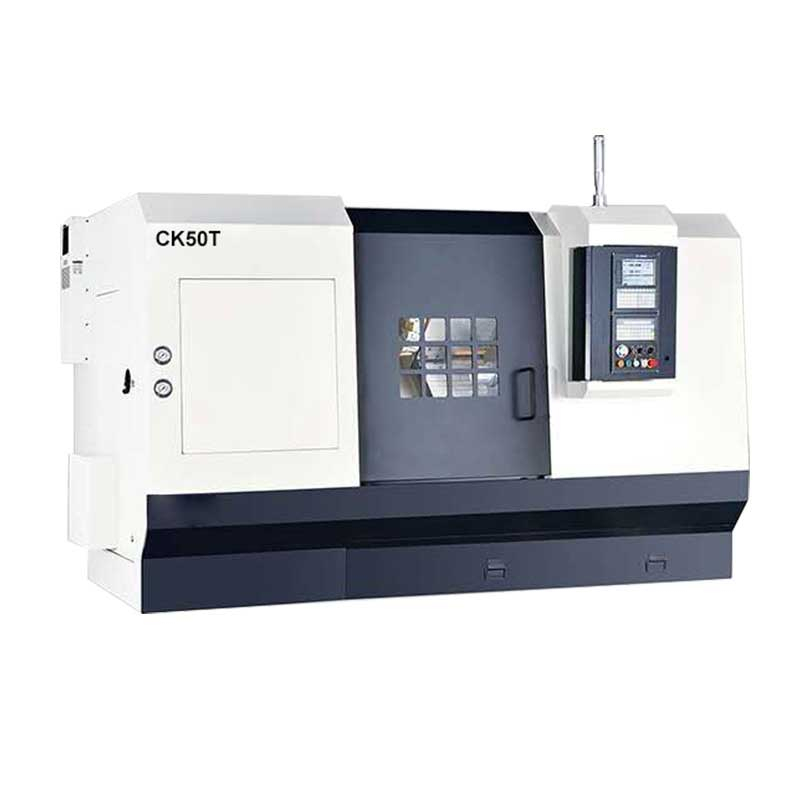

CK50T
WMT
8459310000
| Quantity: | |
|---|---|
Product Description
Features:
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.
High speed at 5000r/min. First-class precision spindle bearing.
High precision ball screw Rexroth, fast feeding for high working efficiency.
All-closed stainless steel protection, strong liquid protection without any water leak.
12 position hydraulic turret, easy machining for complex parts.
| Specification | Unit | CK50T |
| Max. rotary diameter on protection | mm | 550 |
| Max. swivel diameter on towing plate | mm | 320 |
| Max. turning diameter | mm | 550/320 |
| Max. turning length | mm | 630（live center）700(dead center) |
| Repeat positioning accuracy | 0.007 | |
| Hollow hydraulic chuck | 10" | |
| Spindle head type | A2-8 | |
| Spindle through hole diameter | mm | 93 |
| Maximum rod size | mm | 75 |
| Spindle motor power | Kw | 15(Servo） |
| Maximum spindle speed | r/min | 3000 |
| Axial travel X/Z | mm | 230/700 |
| Fast feed speed X/Z | m/min | 16/20（GSK）18/24（FANUC） |
| Motor torque X/Z | Nm | 15/15 |
| Screw type X/Z | mm | 4008/4010 |
| Roller loaded rail | 45/45 | |
| Knife digits | 12 position toolpost | |
| Cutter size | mm | 25x25 |
| Maximum bore rod diameter | mm | 40 |
| Tailstock sleeve diameter | mm | 90 |
| Tailstock sleeve stroke | mm | 100 |
| Tail socket cone hole | MT5 | |
| Machine dimension (L x W x H) | mm | 3200x1755x2170 |
| N.W. | Kg | 6000 |
