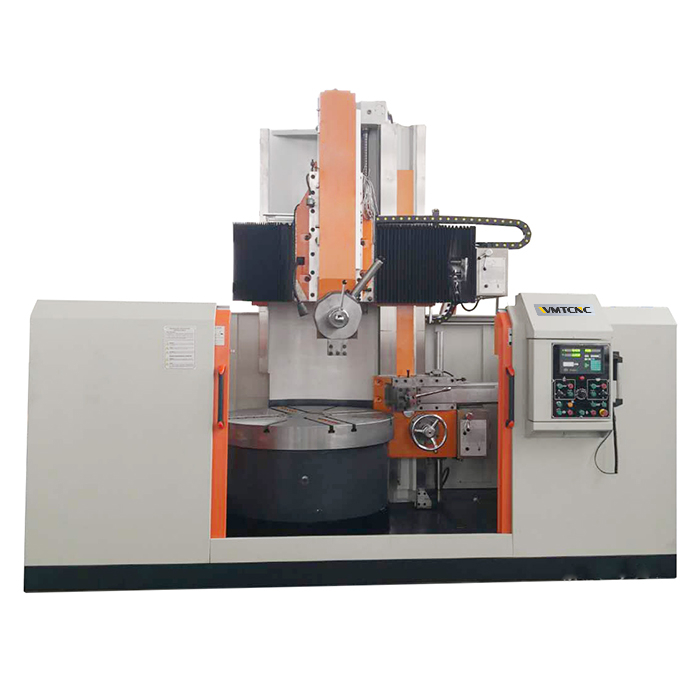

CK5116 Vertical CNC Lathe Machine for Heavy Cutting

  • CK5116
  • WMT
Availability:
Quantity:

Product Description

Features:

  • Vertical CNC lathe machine with single column;

  • Rigid column and stable;

  • DRO optional;

  • Precise cutting for heavy metal parts.


vertical lathe CK5116


Specification CK5116
Table dia. 1400mm
Max. turning dia. 1600mm
Max. workpiece height 1000/1200/1400/1600mm
Max. workpiece weight 5(8)t
Table speed step 16
Table rotation speed range 5-160(6.3-200)r/min
Horizontal travel of toolpost (X-axis) 915mm
Vertical travel of toolpost (Z-axis) 800/1000mm
Crossam ram travel 850mm
Tool bar section size(Lx W) 30x40mm
Main motor power 30kw
N.W 12.6/13.3/14/14.6t
Overall size(LXWXH) 2662x2800x3350/3550/3750/3950mm
Tool bar section size(Lx W) 30x40mm
Main motor power 30kw
Feeding motor power 1.3/1.8kw
N.W 12.7t
Overall size(LXWXH) 2662x2800x3550mm
